Printer Mechanical Adjustment
2. Make fine adjustments of the cam in the exposure advance unit so that the pressure release amount of
the pressure roller at the exit side is the thickness of about one sheet of paper. Use the paper to check
that the pressure of the pressure roller at the exit side is equable at the right and left.
IMPORTANT
• If the pressure adjustment is required, perform ☞ 6 to ☞ 8 of Exposure Advance Unit Zigzagging
Adjustment.
3. Make some gray prints in the Print mode to see if the banding occurs at the area 32 mm from the paper
leading end.
NOTE
• Any paper size is acceptable.
Checking (pressure roller at the inlet side)
IMPORTANT
• When adjusting the pressure roller at the inlet side in the exposure advance unit, check the followings since the
banding may be occurred at the area 24 to 27 mm from the paper rear end.
Pressure roller at the exit side
Cam

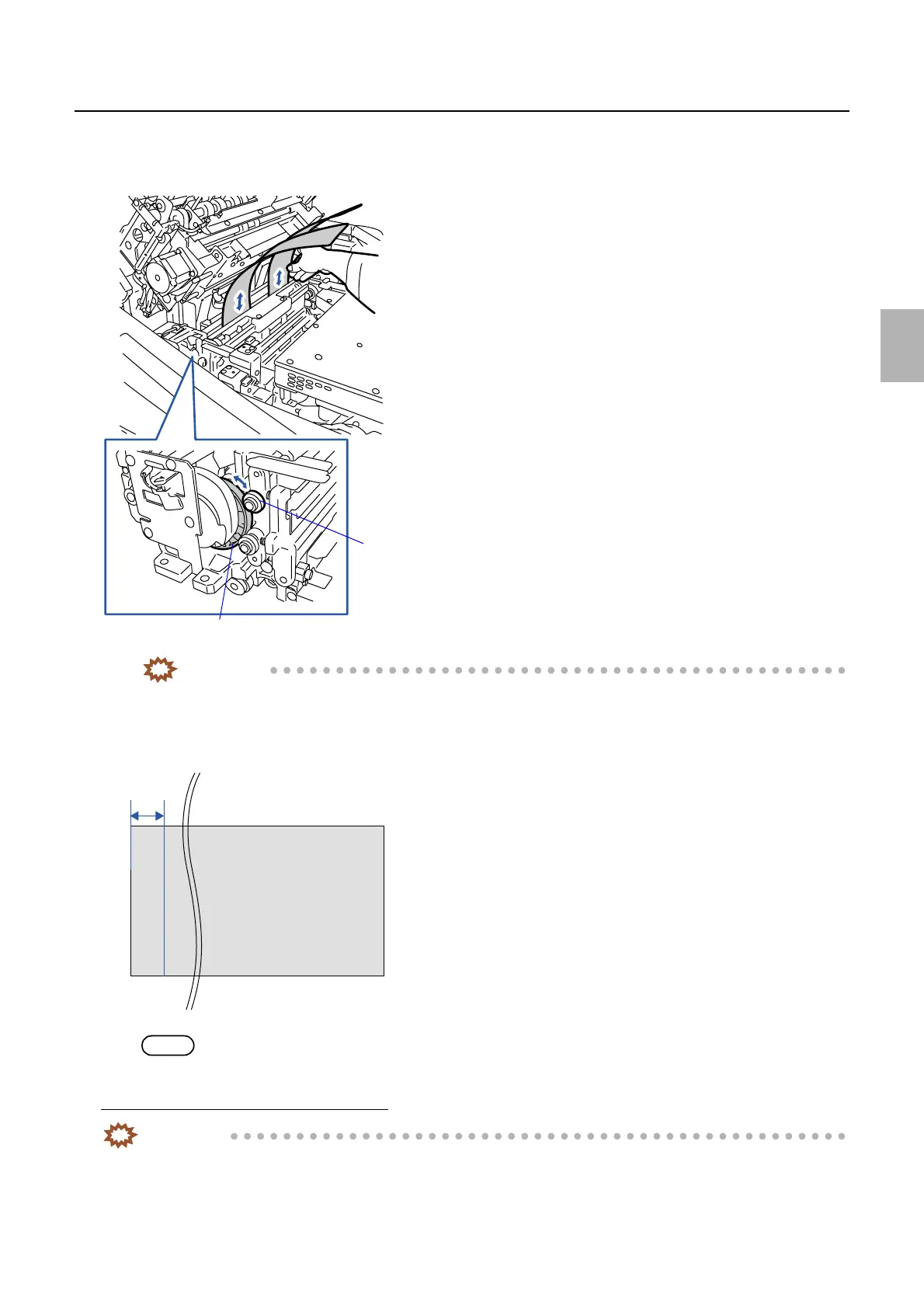

G072398
Rear end
Leading
end
32 mm
G074601
