6.) Return the gas spring cable lever to its position, hooking the gas spring cable lever onto the second
notch on the gas spring cable - Figure 8-62.
7.) Return the cable holder lever pin to secure the cable holder and return the two securing screws to
secure the cable holder in position - Figure 8-63.

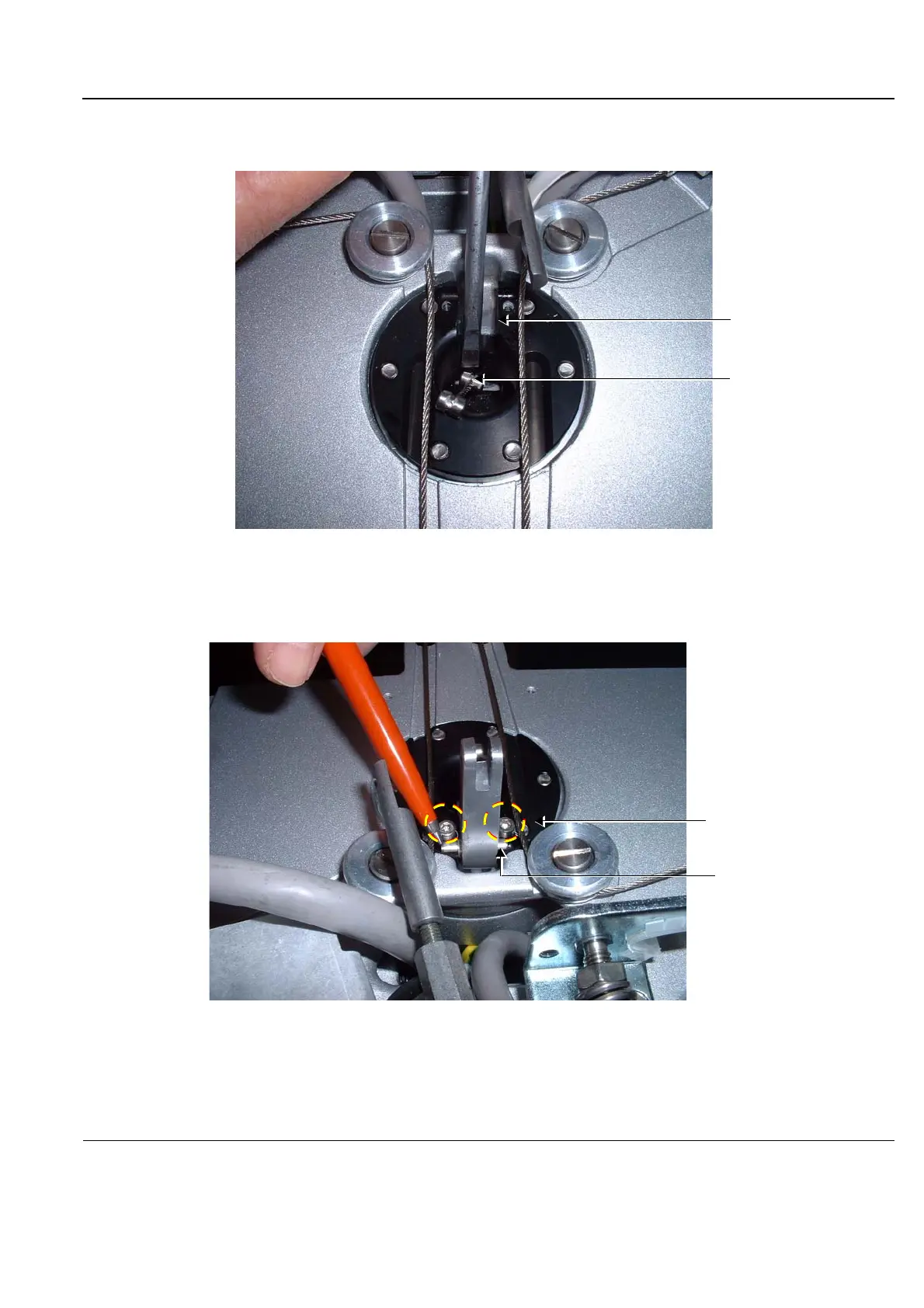

Figure 8-62 Attaching Gas Spring Cable Holder to Gas Spring Cable
Figure 8-63 Cable Holder Lever Secured with Pin and Retaining Screws
Gas Spring Cable Lever
Gas Spring Cable Lever
Hooked onto Second
Notch of Gas Spring Cable
Cable Holder Lever Secured
with Two Retaining Screws
Cable Holder Lever Pin
