IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
3-46 Section 3-6 - Configuration
PRELIMINARY
2.) Select CONNECTIVITY (lower part of window).
3.) Select the TCP/IP
tab.
4.) Connect a GE-approved Wireless Network adaptor to the lower USB socket on the Vivid S60N/Vivid
S70N Rear I/O Peripheral/Accessory Connector Panel.
NOTE: In the event that a Wireless Network adaptor is not connected, or if the connected Wireless Network
adaptor is not the correct model, an error message will be displayed - Figure 3-35.
Click OK to close the message. To continue, connect a GE-approved Wireless Network USB
adaptor.
5.) Click the Wireless Settings button - see Figure 3-34.
The Welcome screen opens - Figure 3-36.

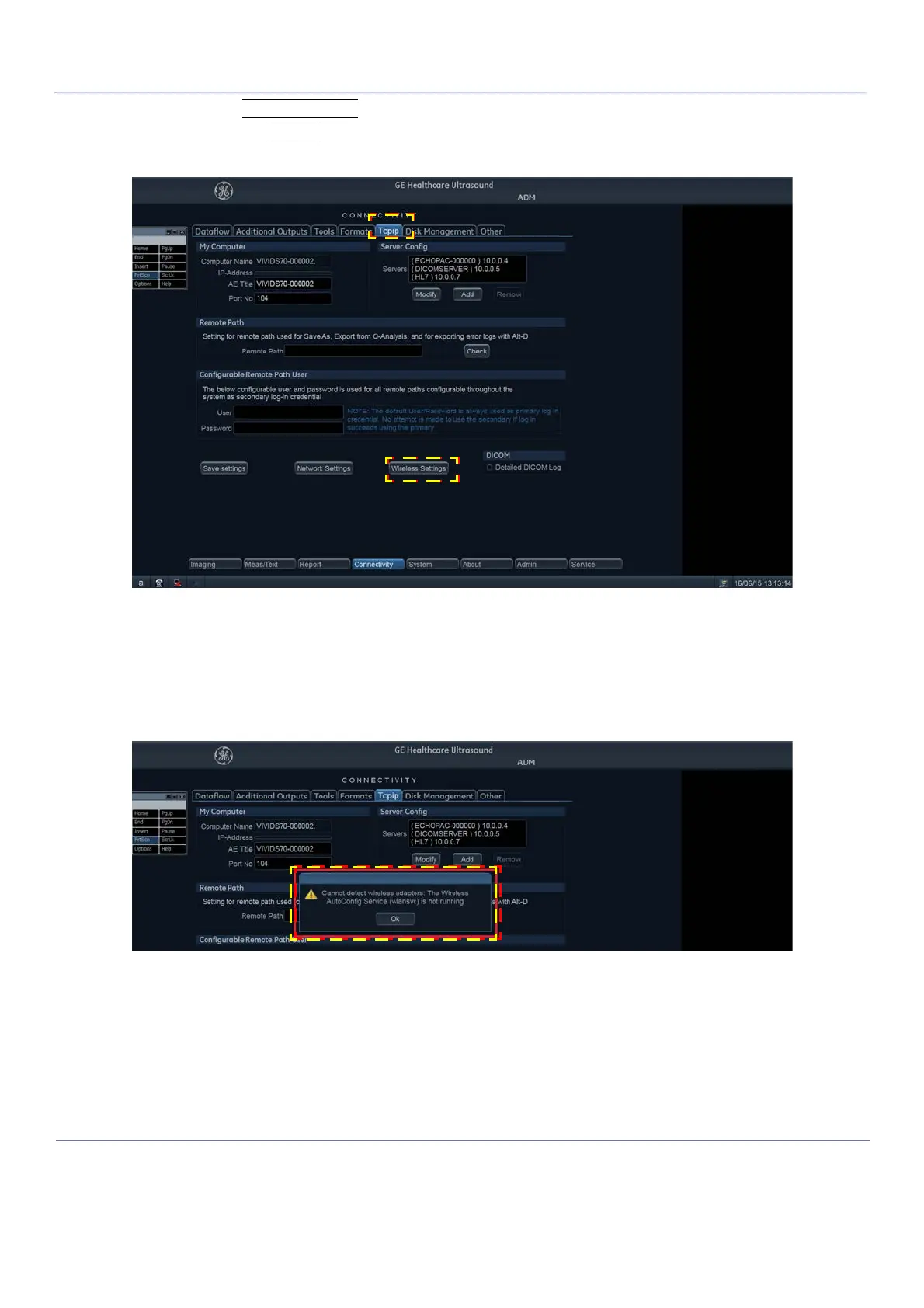

Figure 3-34 Connectivity - TCPIP Tab
Figure 3-35 Connectivity - Error Message
