IRECTION FR091521, REVISION 1VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
4-6 Section 4-2 - General Procedures
PRELIMINARY
2) Press once the On/Off button (Figure 4-5) on the control panel to boot up the unit.
During normal boot-up, you may observe that:
a.) The unit’s ventilation fans start on full speed, but slow down after a few seconds (listen to the
fan sound).
b.) Power is distributed to the peripherals, Operator Panel (control panel), Monitor, Front-End
Processor and Back-End Processor.
c.) The Back-End Processor and the rest of the scanner starts with the sequence listed in the next
steps:
1.) Back-End Processor is turned ON and starts to load the software.
2.) The Start Screen is displayed on the monitor.
3.) A start-up progress bar indicating the time used for software loading, is displayed.
4.) The software initiates and sets up the Front-End electronics and the rest of the scanner.
5.) The Keyboard backlight illuminates.
6.) As soon as the software has been loaded, either a 2D screen is displayed on the screen,
indicating that a probe has been connected, or a No Mode screen is displayed, indicating
that no probe has been connected.
NOTE: Total time used for start-up is typically 1.5 minutes or less. If starting after a power loss or a lock-up, the
start-up time may be up to 4 minutes.

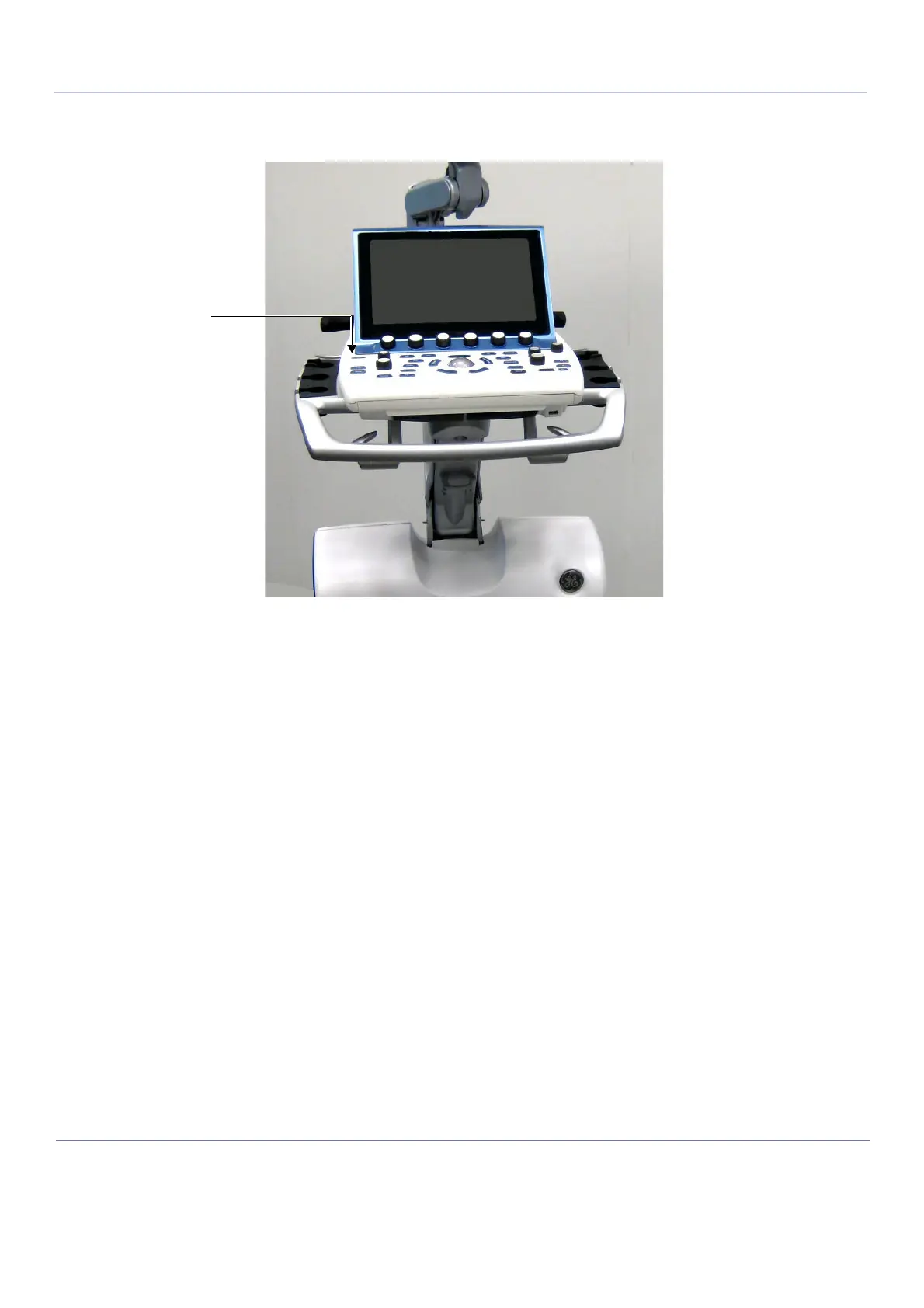

Figure 4-5 On/Off Button on Control Panel
