IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-17
PRELIMINARY
4) Place the RS probe connector locking mechanism in the OPEN (unlocked) position.
The locking mechanism is now aligned to clear the aperture in the Front Cover, enabling removal
of the cover.
5.) On the RS cable assembly, press the release button and pull the slider to the side to provide access
to the two securing screws. Then, unfasten the two screws and remove the RS cable assembly
(front part) - see Figure 8-12.
• Air Inlet (Left Side) Cover Removal Procedure on page 8 - 7
• Right Side Cover Removal Procedure on page 8 - 10
• DVD Cover Removal Procedure on page 8 - 11

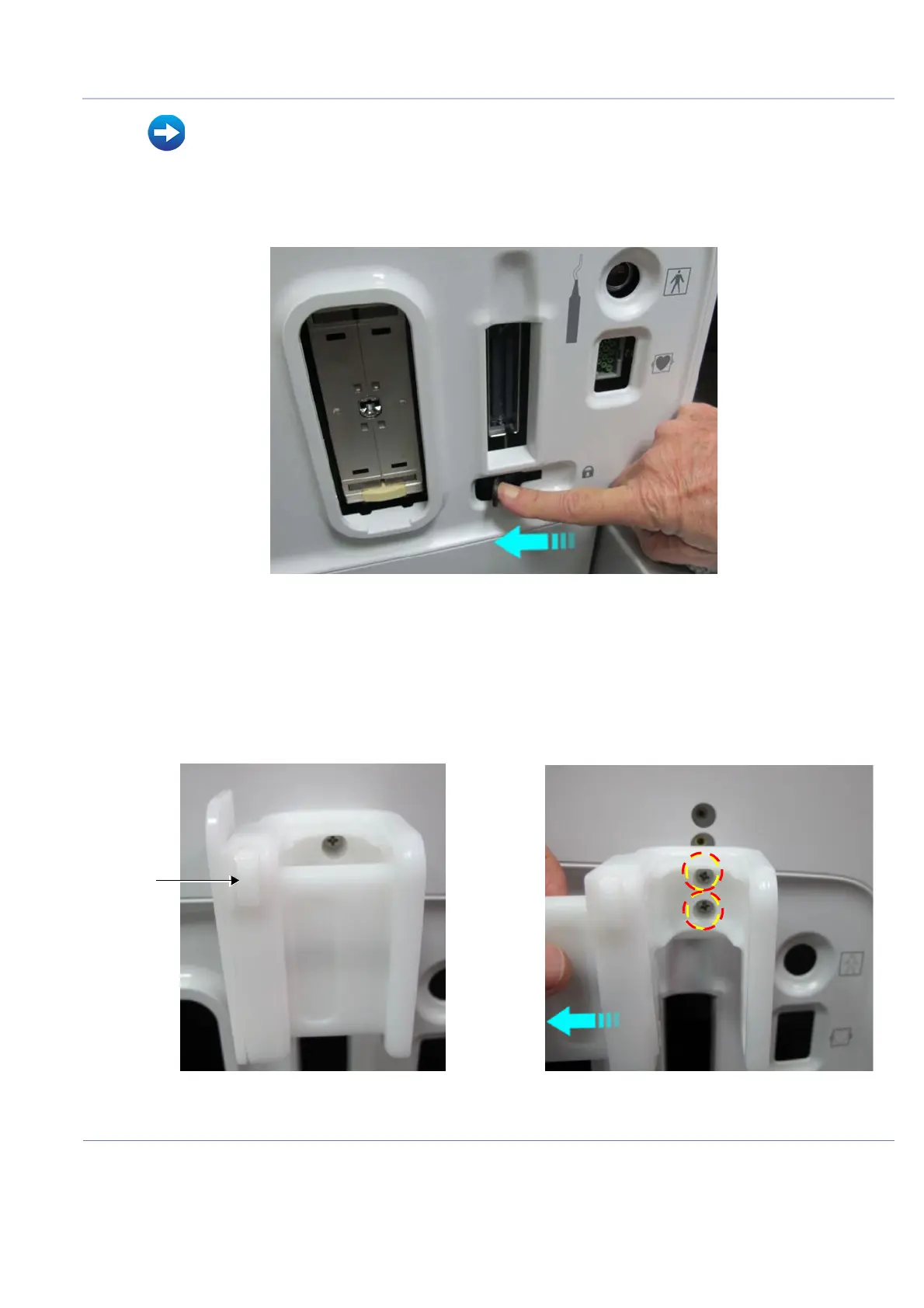

Figure 8-11 RS Probe Connector Lock - OPEN
Figure 8-12 Removing the RS Cable Assembly - Front Part
To Next Page
