8.2 Settings for Each Item
────────────────────────────────────────────────────

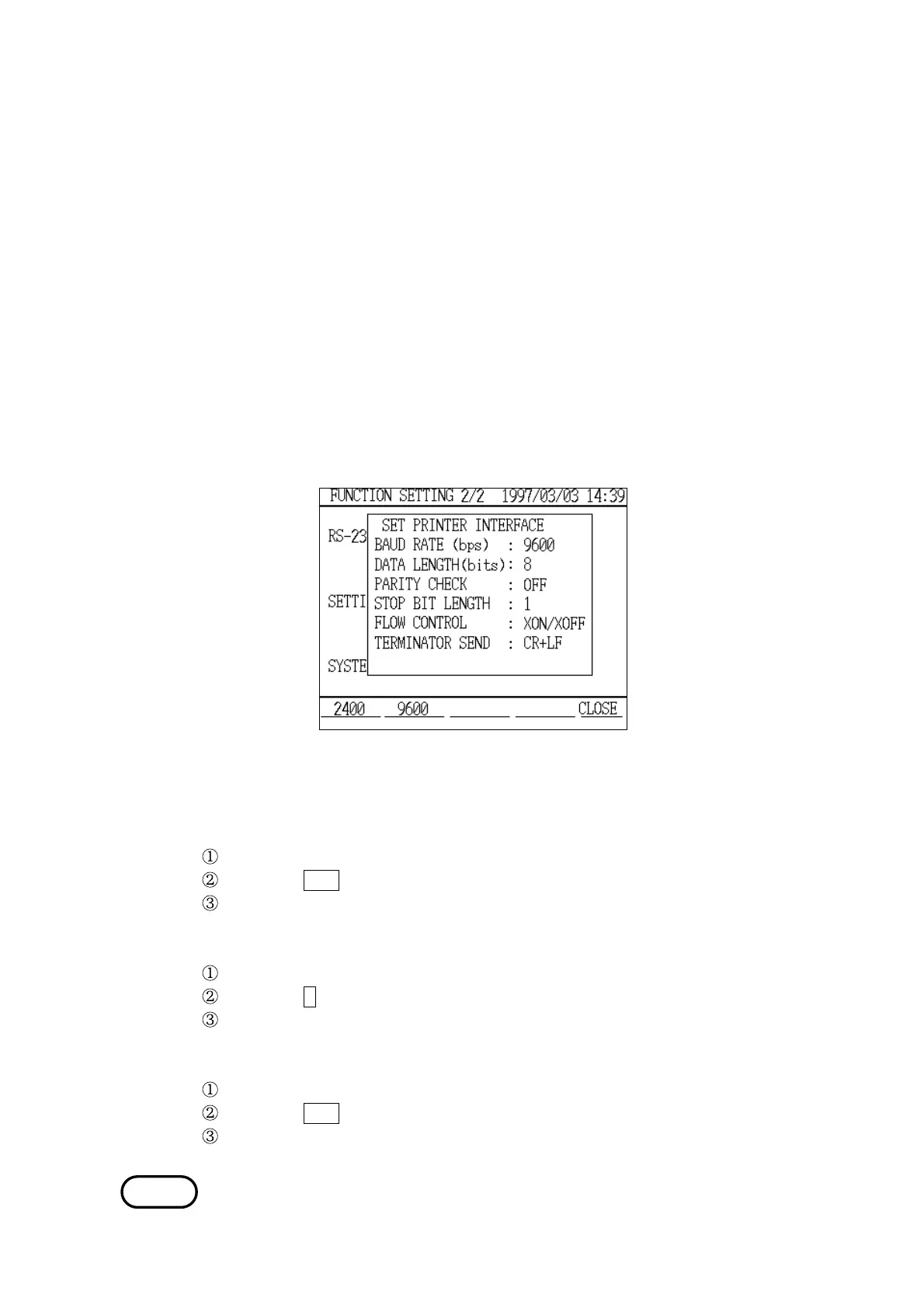

Printer Interface Setting Window
NOTE
(1) Printer settings
These are special settings that should be adjusted to suit the RS-232C printer
connected to the power meter.
Settings:
Baud rate (bps): 2400/9600
* 9600
Data length (bits): 7/8
*8
Parity checking: OFF/ODD/EVEN
* OFF
Stop bit length: 1/2
*1
Flow control: OFF／XON/XOFF／RTS/CTS／BOTH
* XON/XOFF
Terminator send : CR／LF／CR+LF
*CR+LF
The procedures for changing these settings are described below.
Example Changing the baud rate setting to "2400"
Position the cursor at "Baud rate (BAUD RATE)" item.
Press the 2400 function key.
"2400" is set and is displayed in the "Baud rate" field.
Example Changing the data length setting to "7"
Position the cursor at "Data length (DATA LENGTH)" item.
Press the 7 function key.
"7" is set and is displayed in the "Data length" field.
Example Changing the parity check setting to "ODD"
Position the cursor at "Parity check (PARITY CHECK)" item.
Press the ODD function key.
"ODD" is set and is displayed in the "Parity check" field.
The parity check setting is valid only when the data length setting is "7". If
the data length setting is "8", the parity check setting is fixed at "OFF."
