3.2 Connecting the Voltage Cords
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A

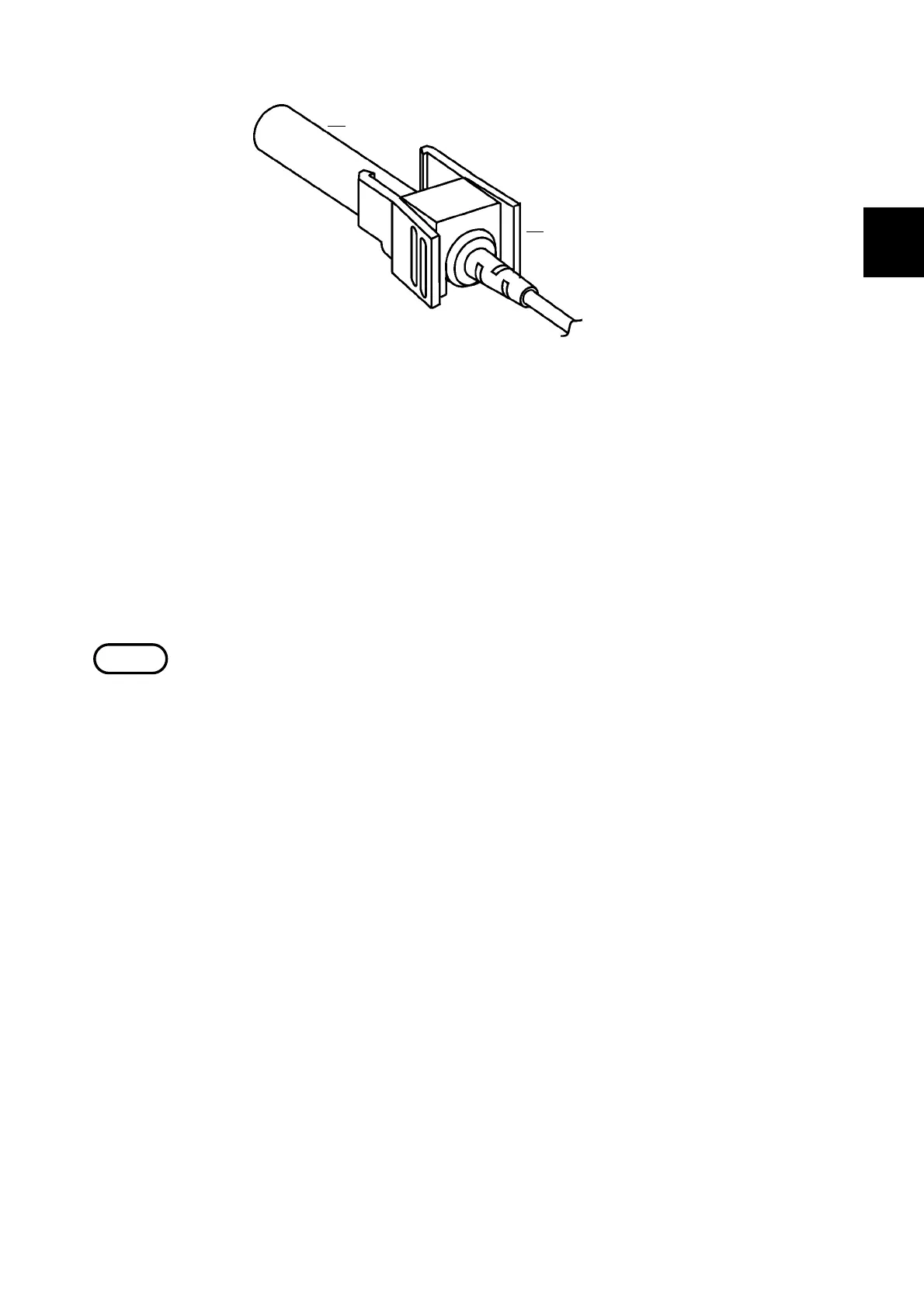

9438 VOLTAGE CORD
Voltage cord loc
Voltage Cord Lock Installation
NOTE
2. Connect the voltage cords to the voltage input connectors on the power meter
in the same manner as described in step 1 n the previous section. Plug each
voltage cord into its corresponding numbered voltage input connector. Each
connector number is color coded. (Be certain to plug each cord all of the way
into its connector until the voltage cord lock locks.)
3. When disconnecting a voltage cord, squeeze the tabs on both sides of the
voltage cord lock to release the lock and then pull out the plug.
Whenever you are connecting or disconnecting the voltage cords, be certain to
grasp the plug, not the cord.
