• When the trigger synchronous output function is set to ON, there is a measurement time
delay because the instrument enters a wait time which spans from when the measure-
ment signal is output to when measurement starts.
See"14.3 About Measurement Times and Measurement Speed" (p. 350)
• When the trigger synchronous output function is set to ON, the set DC level may be out-
put if a measurement condition is changed. Also, output will stop when measurement is
performed once.
• The measurement signal is output when the trigger signal is input and stops after mea-
surement ends.
• Setting the contact check timing to either or for the contact check
function will cause the trigger synchronous output functionality to be automatically turned
on.
See: "5.3.4 Checking Contact Defects and the Contact State (Contact Check Function)" (p. 177)
• In CONTINUOUS measurement mode, the measurement signal stops after measure-
ment of the last panel ends.

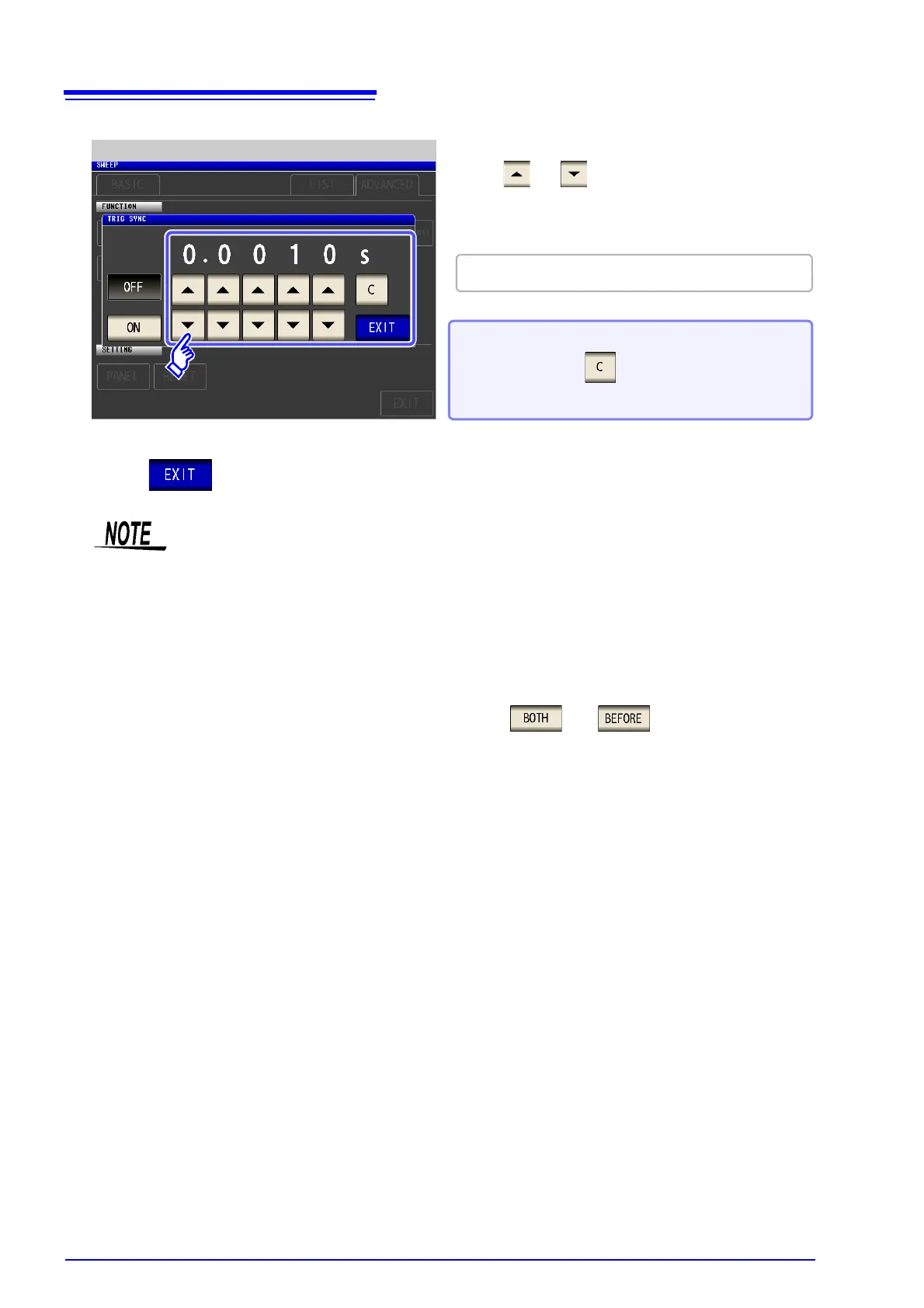

Use or to set the wait time from after
the measurement signal is output by applying
a trigger to the start of measurement.
4
Settable range: 0.0010 s to 9.9999 s
When you want to return the time to the ini-
tial state: Press .
The set time is set to 0.0010 s.
Trigger Sync Setting
5
Press to close the setting screen.
