Hioki IM3533 - Setting Calculation Parameters

6.1 About TRANSFORMER function
197
6
Chapter 6 TRANSFORMER Function
This section describes how to select winding ratio (N), mutual inductance (M), or inductance difference (L) as
the calculation parameter.
See "6.1.2 Measurement Methods" (p. 194)

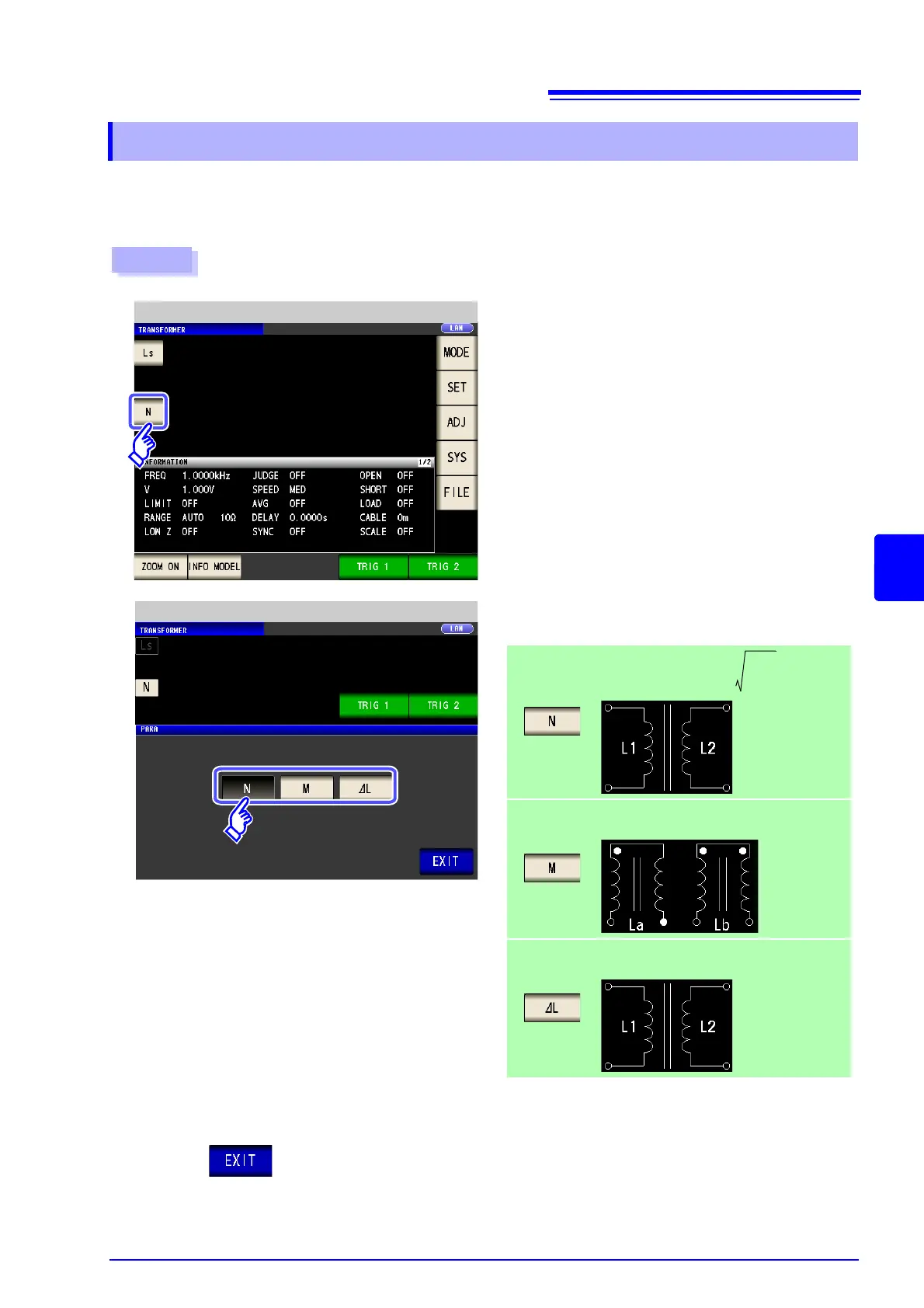

6.1.4 Setting Calculation Parameters
1
Touch the calculation parameter key on the
measurement screen.
Procedure
TRANSFORMER Measurement Screen
Select an calculation parameter.
Winding ratio
Mutual inductance
Inductance difference
N
L1
L2
------


=
M
La Lb–
4
------------------------=
 LL1L2–=
2
Calculation Parameter Settings
3
Press to close the setting screen.
