Hioki IM3533 - 10 Enabling Trigger Input for During Mea- Surement and Setting the Valid Edge of Trigger Input

5.3 Application Settings
189
5
Chapter 5 ANALYZER Function (IM3533-01)
You can select whether to enable or disable trigger input from the EXT I/O during measurement (during EOM
(HI) output after trigger is received). Erroneous input due to chattering can be prevented by disabling trigger
input during measurement. Furthermore, you can also select either the rising edge or falling edge as the valid
edge of trigger input from the EXT I/O.
See "12.2 Timing Chart" (p. 318)
5.3.10 Enabling Trigger Input for during Measurement
and Setting the Valid Edge of Trigger Input

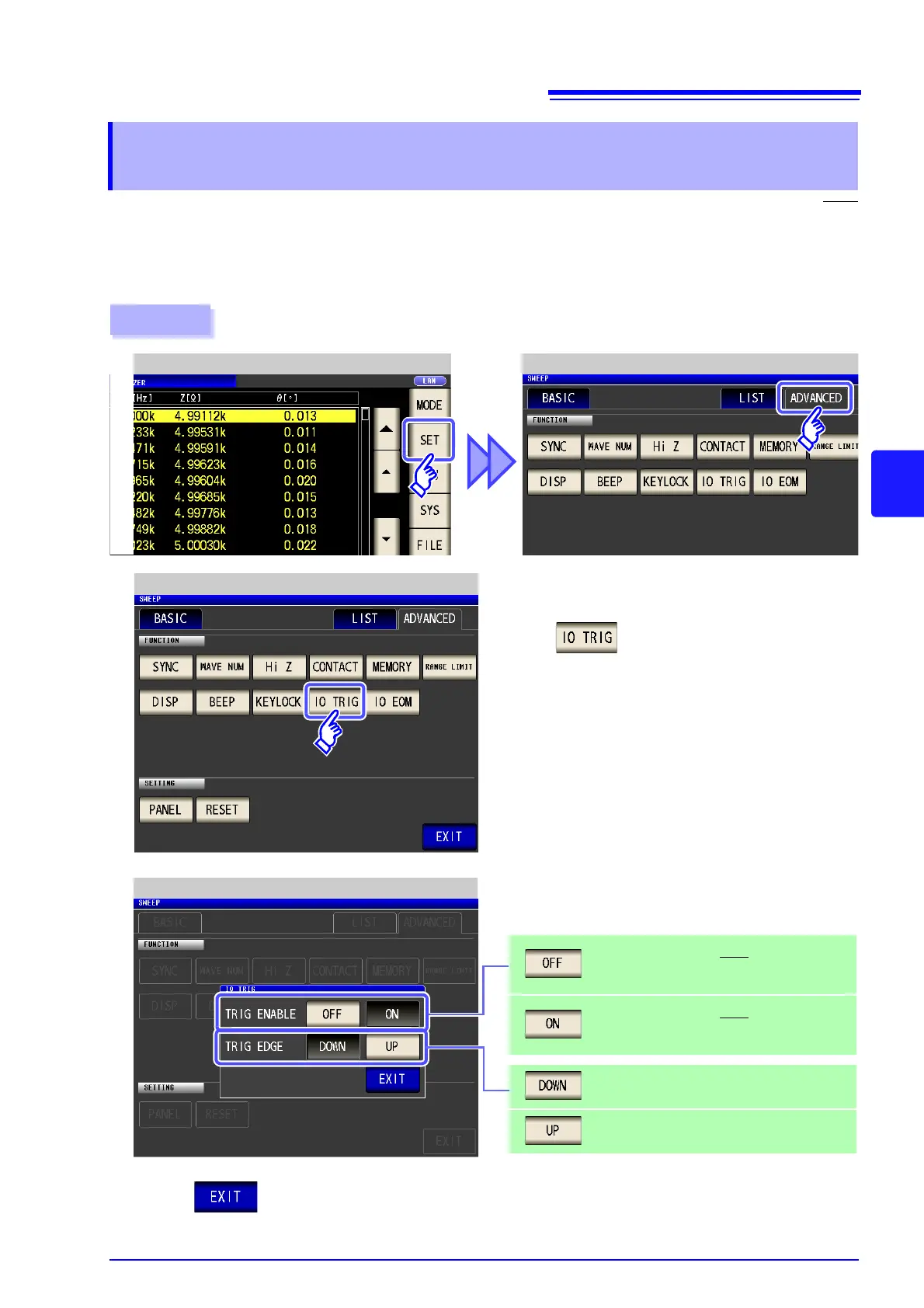

Procedure
ANALYZER Application Settings
1
ANALYZER Measurement Screen
Press .
2
ANALYZER Application Settings
3
I/O Trigger Setting
Sets the falling edge as the valid edge of trigger
input.
Sets the rising edge as the valid edge of trigger
input.
Disables trigger input from the EXT I/O during
measurement (during EOM
(HI) output after
trigger is received).
Enables trigger input from the EXT I/O during
measurement (during EOM
(HI) output after
trigger is received).
Select the I/O trigger function setting.
4
Press to close the setting screen.
