12.2 Timing Chart
318
If you set the judgment condition for the comparator (the trigger setting is external trigger) and then in that
state a trigger signal is input from the EXT I/O or is pressed in the screen, the judgment result is
output from the signal line for comparator result output of the EXT I/O after measurement ends.
Furthermore, if the panel number is selected with the panel load signal when a trigger signal is input from the
EXT I/O, the measurement condition of that panel number is loaded and then measurement is performed.

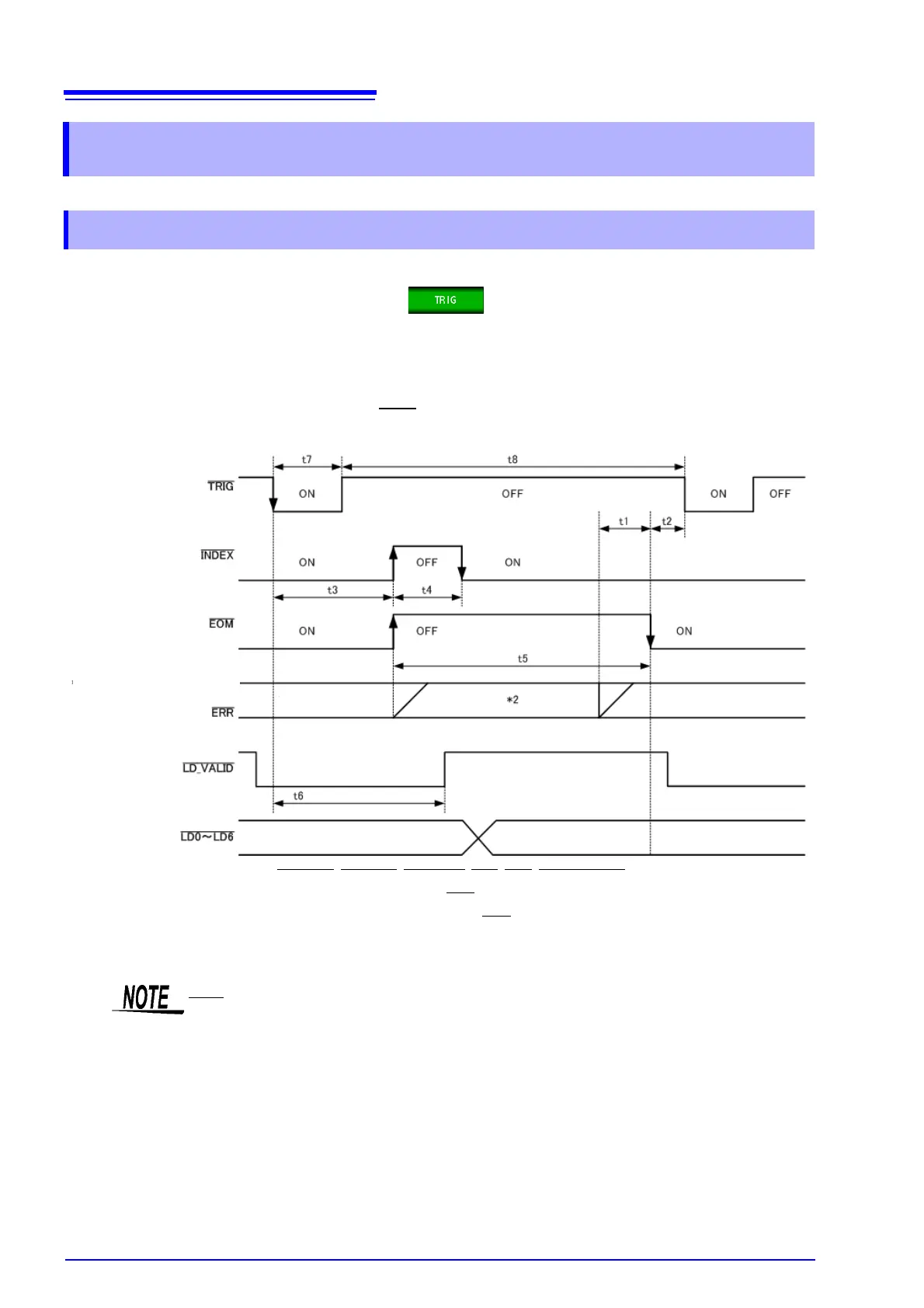

The following shows examples of the measurement timing.
(In the timing examples, the valid edge of the TRIG
signal is set to falling (ON).)
12.2 Timing Chart
12.2.1 LCR Mode
(Start-of-measurement signal)
(Analog end of measurement signal)
(End of measurement signal)
*1 (Comparator result output)
Judgment result
*1: PARAx-HI
, PARAx-IN, PARAx-LO, AND, BINx, OUT_OF_BINS
*2: Reset when signal changes to EOM (HIGH): HIGH
Do not reset when signal changes to EOM
(HIGH): Last judgment result remains
(Error output)
Last judgment
result
Whether the comparator and BIN judgment results are reset when the signal changes to
EOM
(HIGH) or updated when measurement completes can be selected on the instrument
or using a communication command.
See "4.5.5 Setting the Delay Time from the Output of Comparator and BIN Judgment Results until
Output of EOM (LOW) and Resetting Judgment Results" (p. 134)
LCR Application Disk - communication commands (
:IO:RESult:RESet)
To Next Page
