6.1 About TRANSFORMER function
193
6
Chapter 6 TRANSFORMER Function
The TRANSFORMER function allows you to perform inductance measurement twice in order to calculate the
winding ratio, mutual inductance, and inductance difference.
When the instrument is turned back on, the screen will display the measurement mode in use when it was last
turned off. For more information about the screen layout, see (p. 20).
TRANSFORMER
Function Chapter 6
6.1 About TRANSFORMER function
Settings apply to LCR mode, ANALYZER mode, and TRANSFORMER mode.

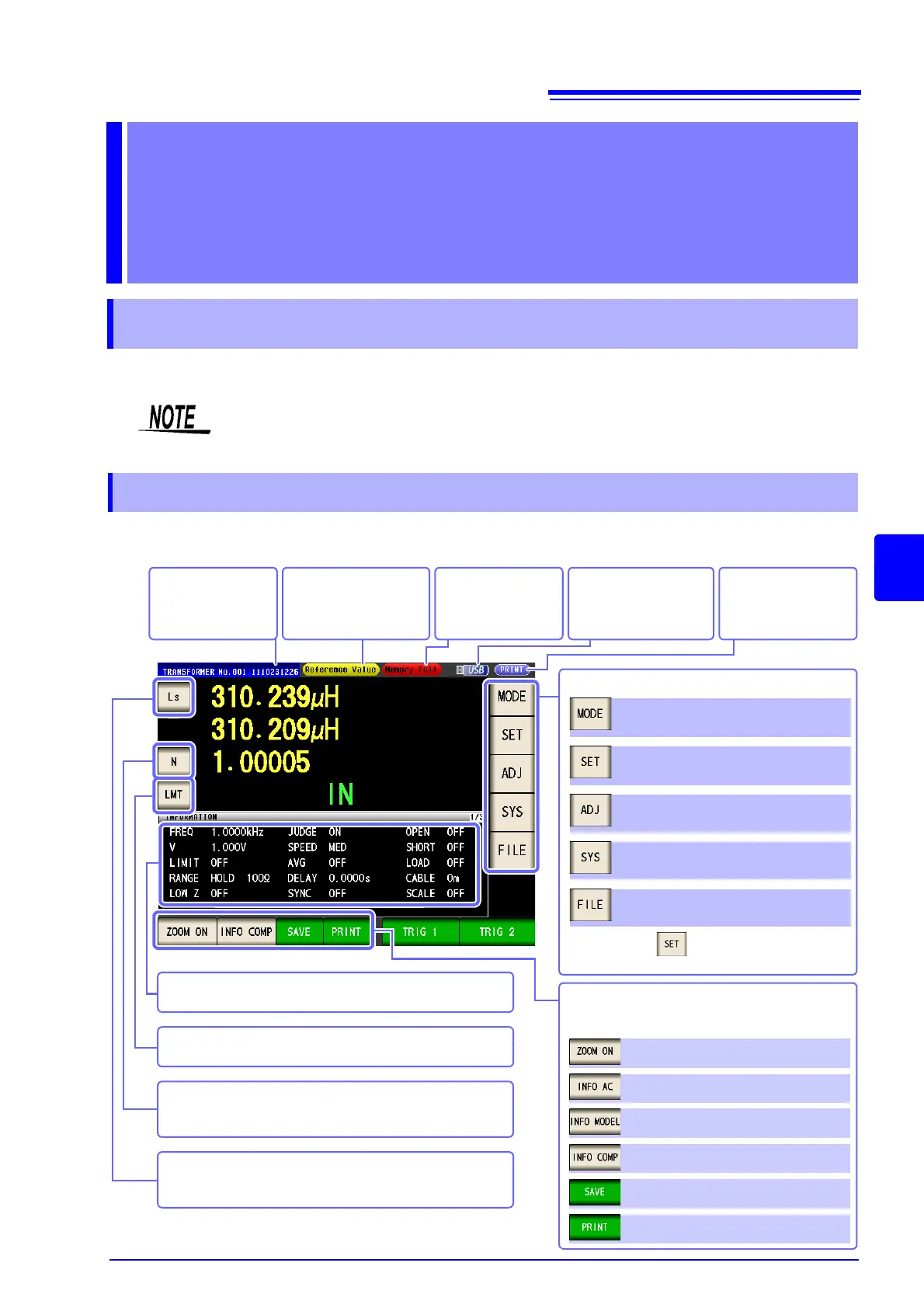

6.1.1 Measurement screen
The settings of differ depending on the mea-
surement mode.
Menu keys
Select the measurement mode (p. 13).
Set the details (p. 198).
Set the compensation (p. 213).
Set the system
(p. 261)
.
Set the save settings (p. 271).
Measurement parameter key
Set each parameter (p. 196).
Displays the comparator measurement judgment results (p. 199).
Indicates the name
of the loaded panel
(p. 256).
Indicates the interface
that is currently set
(p. 263).
Indicates that a USB
flash drive is connected
(p. 273).
Indicates the usage
status of internal
memory (p. 138).
Indicates error messages
and other information
(p. 360).
Calculation parameter key
Sets calculation parameters (p. 197).
An operation key is displayed depending on the sit-
uation.
Operation keys
Enlarges the screen (p. 49).
Displays the measurement condi-
tions for AC measurement.
Displays the comparator settings.
Saves the measurement data (p. 277).
Prints the measurement data (p. 331).
Displays the transformer model.
A measurement condition is displayed.
To Next Page
