4.3 Setting DC Resistance Measurement
83
4
Chapter 4 LCR Function
This section describes how to set the time allowed to elapse before DC resistance measurement starts, for
example when switching from measurement using an AC signal to DC resistance measurement. This delay
time serves to delay measurement until the DC level stabilizes.

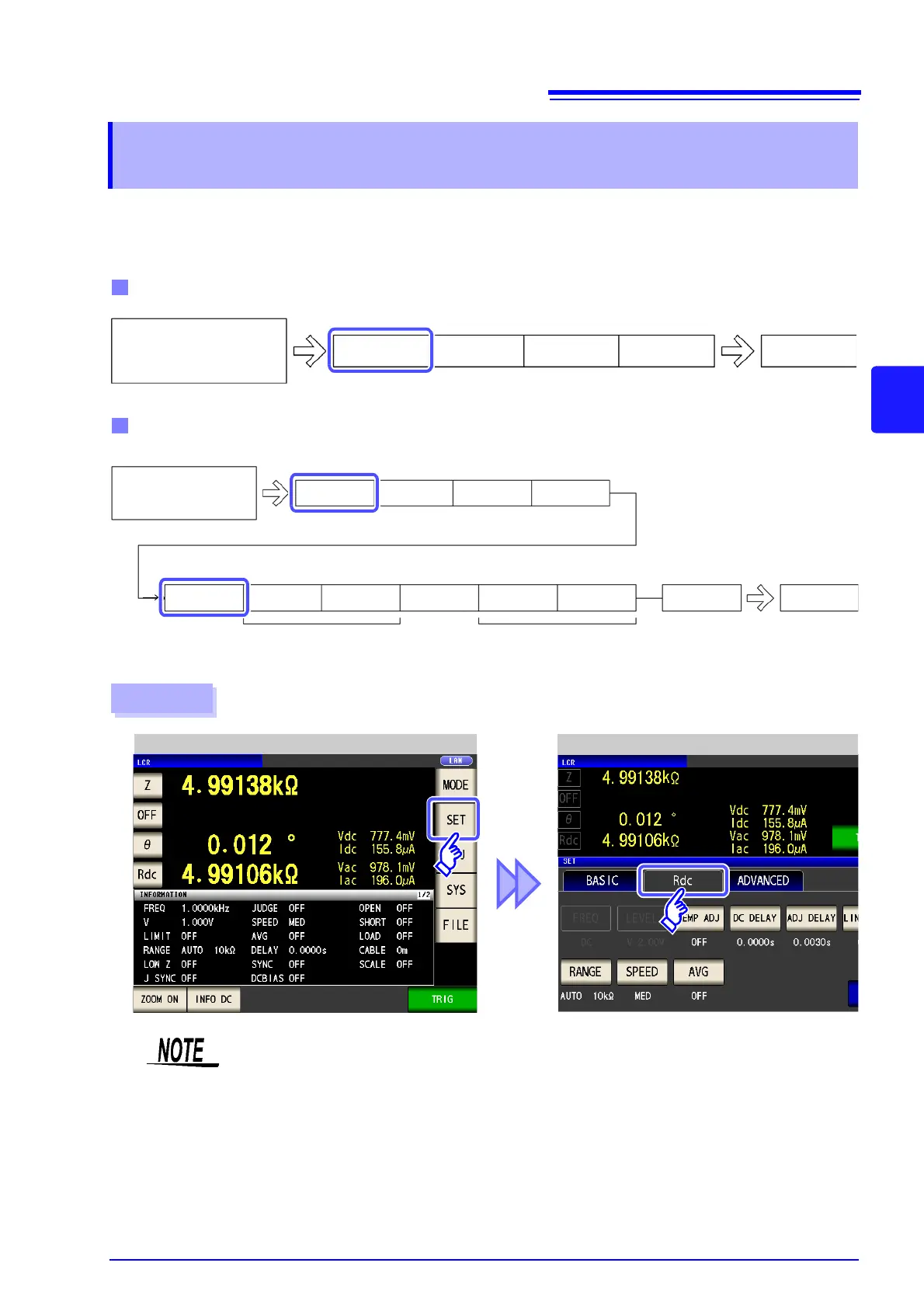

4.3.2 Setting the DC Measurement Delay Time
(DC Delay)
The time required until the DC signal level stabilizes differs depending on the test sample to
be measured. To ensure measurement is performed accurately, observe the measurement
waveform in advance and then set the delay time required until the DC signal level stabi-
lizes.
When number of averaging times is 1
Setting changed
• Changed from AC measurement to
DC measurement
• Range changed
Measure DC
resistance
ADJ delay
(Initial value: 0.0030
seconds)
DC delay
(Initial value:
0 seconds)
Measure offset
End measurement
When the number of averaging times is 2 or more
(The number of times is 2 in this example)
DC delay
(Initial value:
0 seconds)
Measure DC
resistance
Measure
offset
Measure
offset
Obtain
average value
Measurement for set number
of averaging times
End
measurement
Measurement for set number
of averaging times
DC delay
(Initial value:
0 seconds)
Measure DC
resistance
Measure DC
resistance
ADJ delay
(Initial value: 0.0030
seconds)
Measure offset
Setting changed
• Changed from AC measure-
ment to DC measurement
• Range changed
ADJ delay
(Initial value: 0.0030
seconds)
Procedure
LCR Measurement Screen
1
Rdc Basic Settings
