4.3 Setting DC Resistance Measurement
81
4
Chapter 4 LCR Function
The principle of temperature correction (see "Appendix9 Temperature Correction Function (TC)"(p. A13)) can
be used to convert resistance values to a reference temperature value and display the results. Be sure to
read the following when connecting the 9478 Sheath type temperature probe to the TC SENSOR terminal on
the back of the instrument.
See "2.5 Connecting a Temperature Probe" (p. 33)
4.3.1 Configuring the Temperature Correction Function
When a 9478 Sheath type temperature probe is not connected, this function cannot be
enabled. Attempting to do so will cause “TC ERR“ to be displayed as the Rdc measurement
value. (p. 361)
Procedure

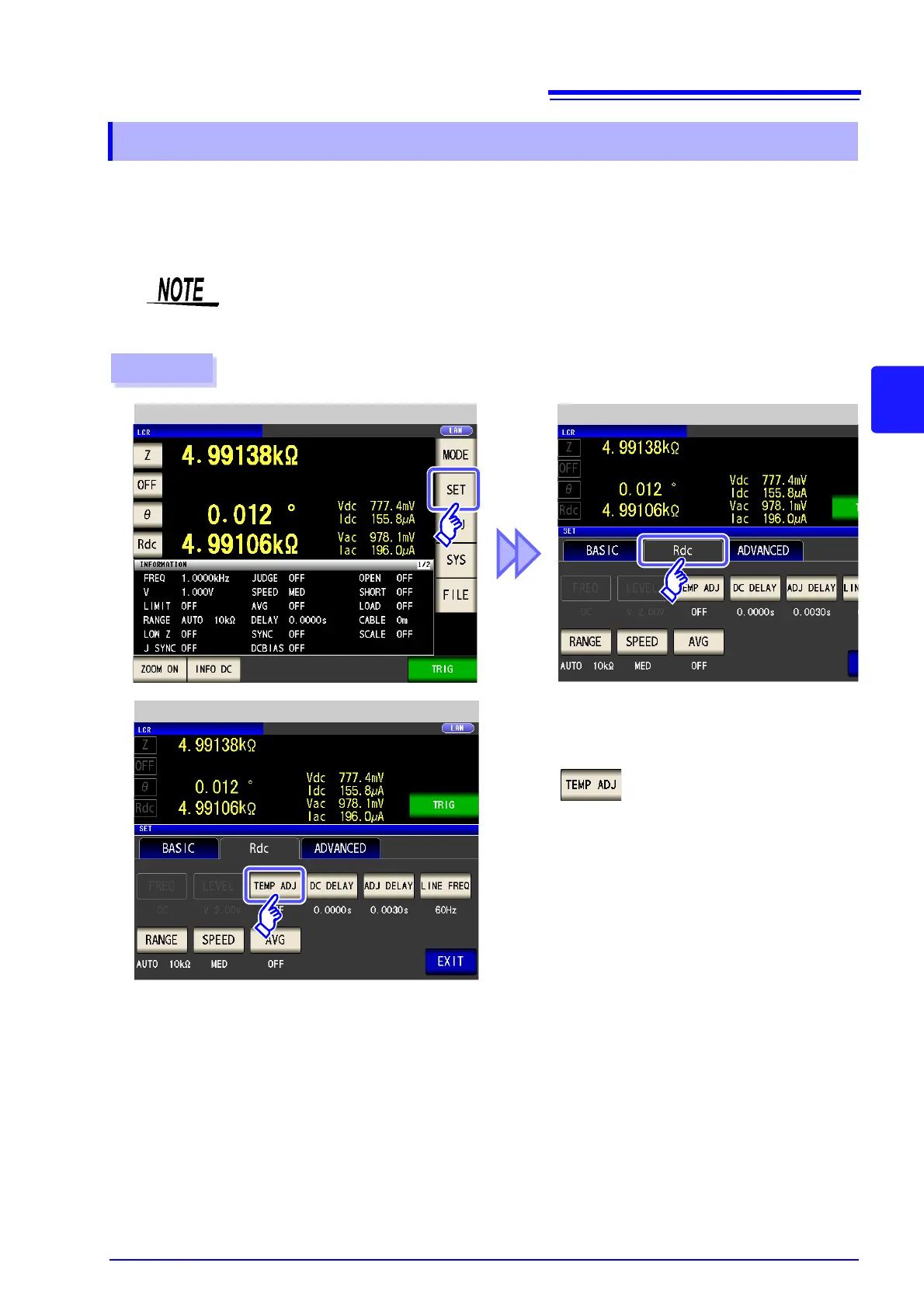

LCR Measurement Screen
1
Rdc Basic Settings
Press .
2
Rdc Basic Settings
