You can set the delay time for the period from the output of the comparator and BIN judgment results until the
output of EOM
(LOW) from the EXT I/O.
You can also select whether to reset the comparator and BIN judgment results when the signal changes to
EOM
(HIGH).
See "12.2 Timing Chart" (p. 318)
4.5.5 Setting the Delay Time from the Output of Com-
parator and BIN Judgment Results until Output
of EOM
(LOW) and Resetting Judgment Results

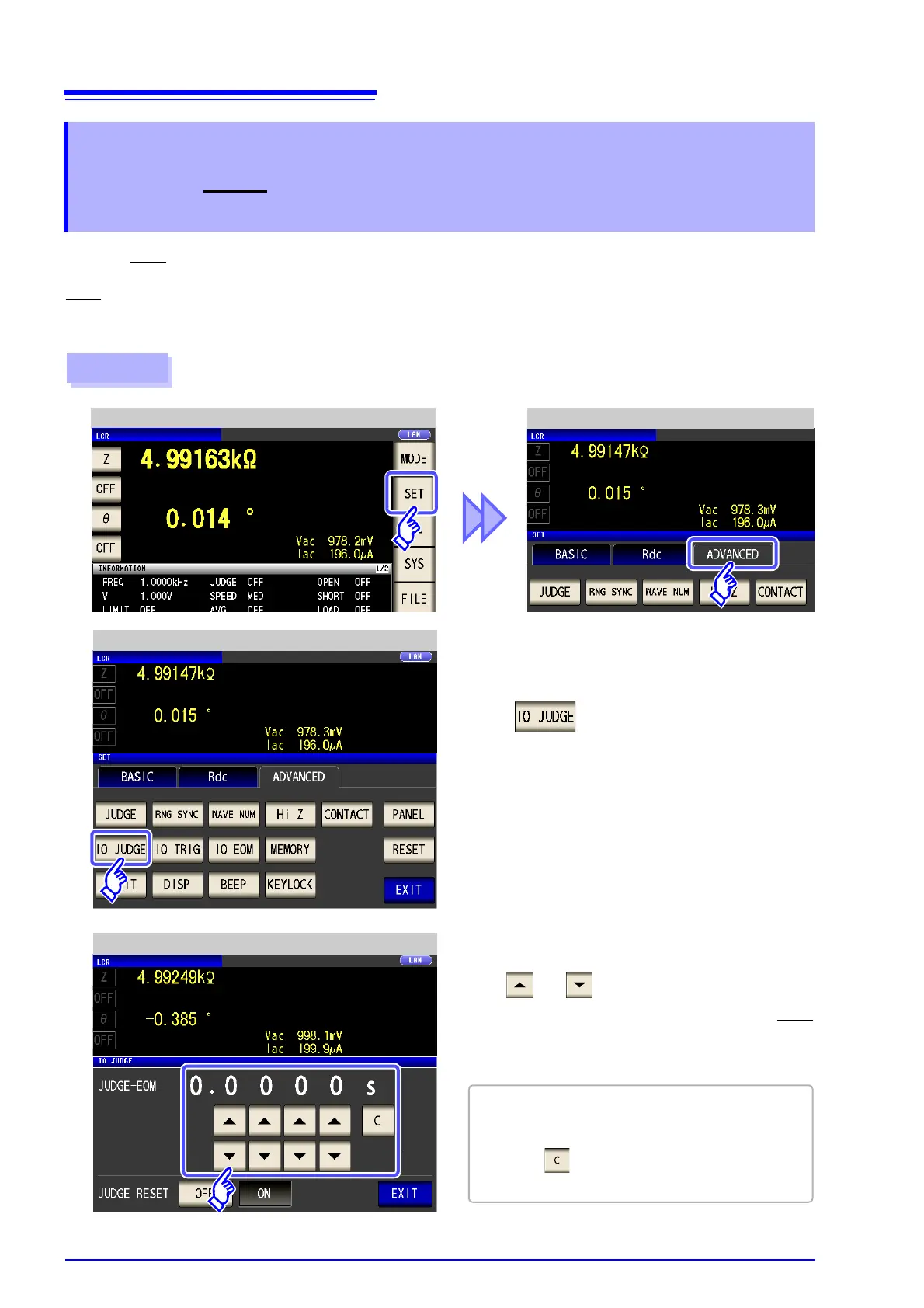

Procedure
LCR Measurement Screen LCR Application Settings
1
Press .
2
LCR Application Settings
3
I/O Judgment Setting
Use or to set the delay time for the
period from the output of the comparator and
BIN judgment results until the output of EOM
(LOW).
• Settable range: 0.0000 s to 0.9999 s
• If you make a mistake during input:
press to cancel the input and start
again.
