4.5 Setting Application Settings
133
4
Chapter 4 LCR Function
• Selecting or as the contact check timing causes the trigger synchro-
nous output function to be automatically turned on.
See "4.2.10 Applying the Signal to the Sample during Measurement Only (Trigger Synchronous
Output Function)" (p. 77)
• When setting the contact check function, the INDEX time and EOM time will be delayed
depending on the timing. (p. 352)
• The contact check function cannot be used during temperature measurement. However, if
a contact error occurs at the timing, the temperature measurement will be shown
as DISP OUT since the measurement will not have been performed at that point.
• The allowable contact resistance value may vary depending on the sample being mea-
sured.
• The measurement value will not be saved when all three of the following conditions apply:
• When the memory function has been enabled
• When the contact check timing is set to
• When a contact check error has been displayed (see the error display) (p. 360)

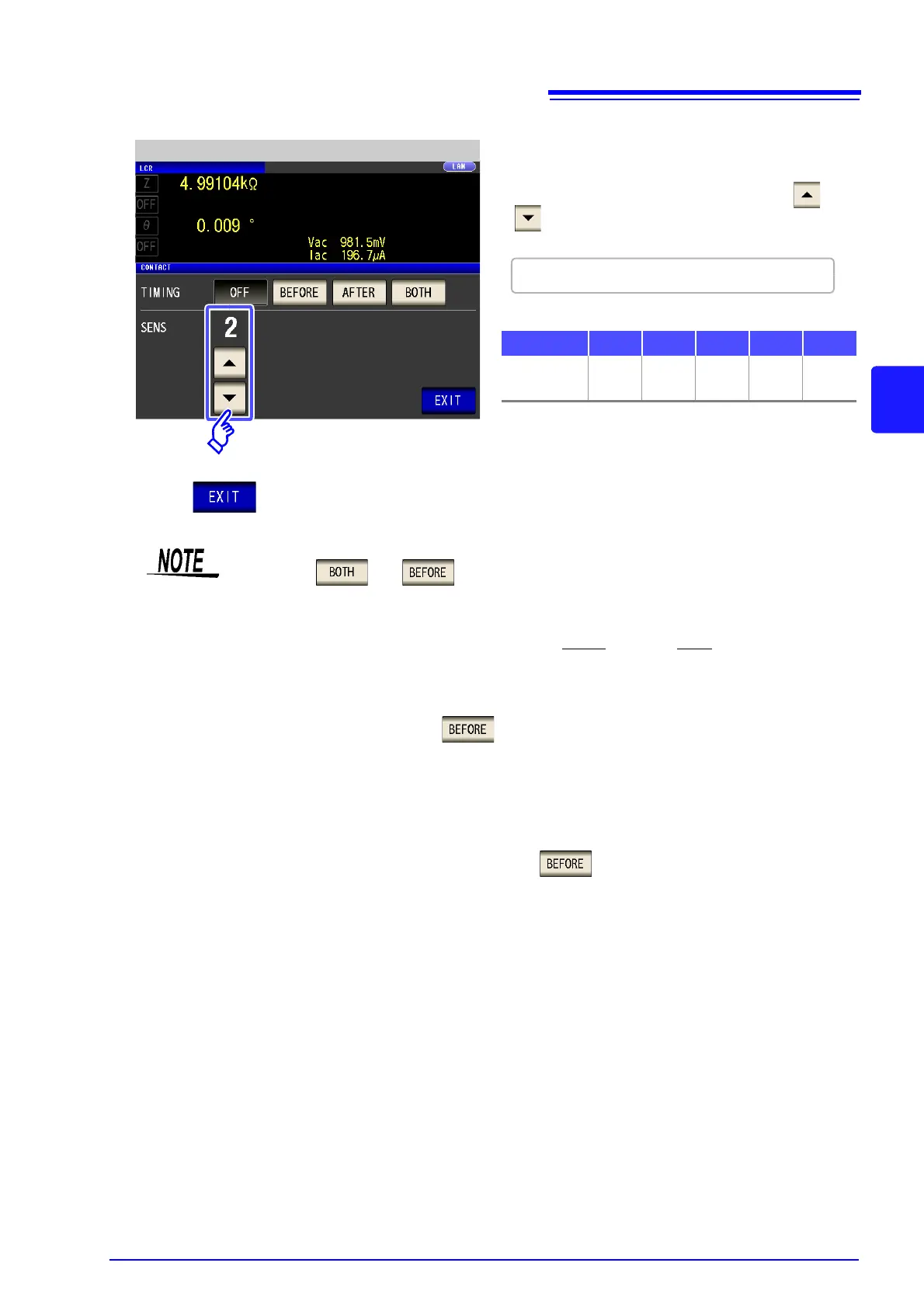

Set the contact check threshold with and
.
4
Settable range : 1 to 5
Contact Check Settings
Threshold 1 2 3 4 5
Permissible
contact
resistance [
]
Approx.
1000
Approx.
500
Approx.
100
Approx.
50
Approx.
10
5
Press to close the setting screen.
