6.1 About TRANSFORMER function
194
Touch after connecting the wiring to the coil’s primary side. Then touch after connect-
ing the wiring to the secondary side to display the wiring ratio and inductance difference.

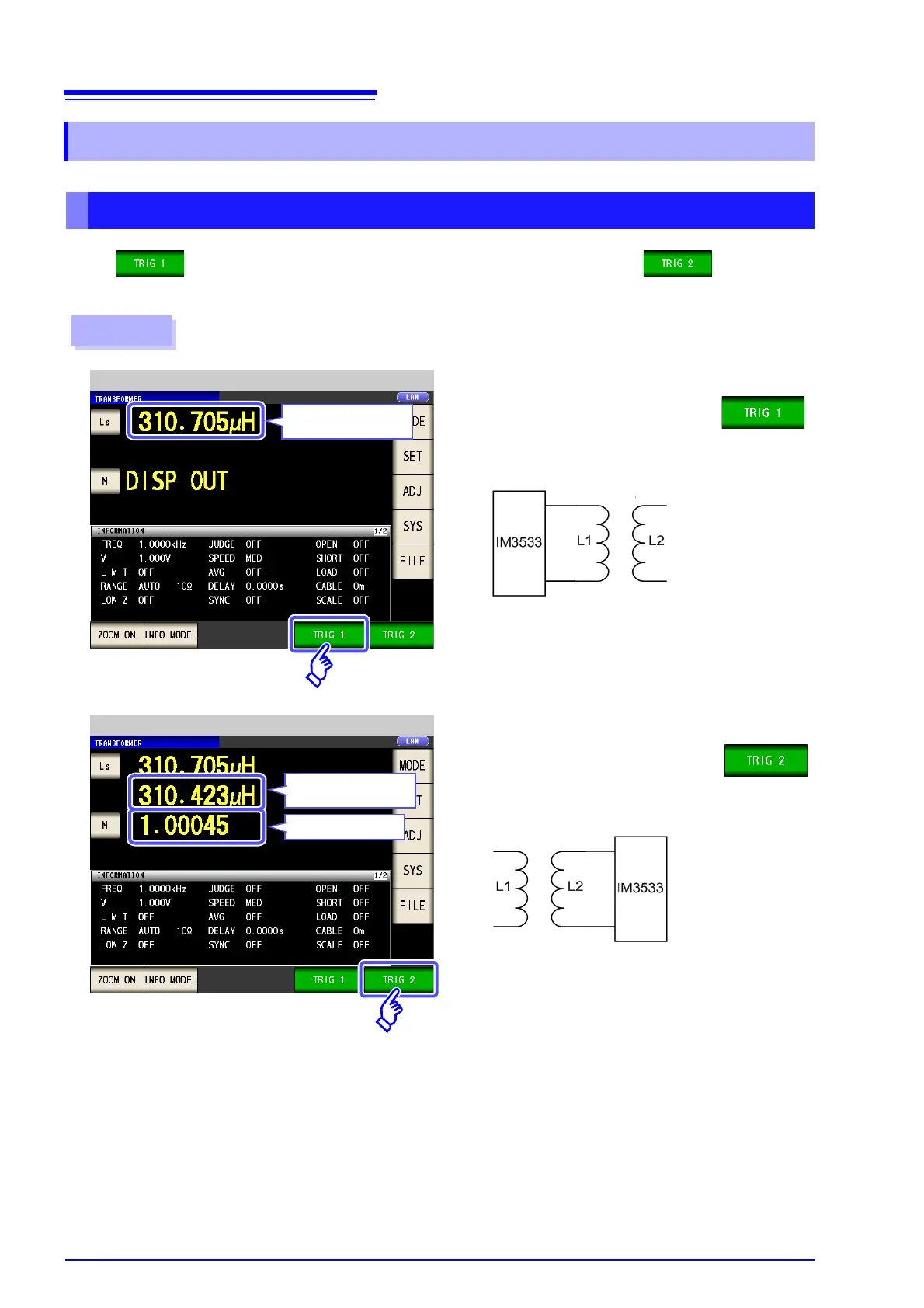

6.1.2 Measurement Methods
Winding ratio and inductance difference
Procedure
1
Measure the coil’s primary side with .
TRANSFORMER Measurement Screen
Primary
side
Secondary
side
Primary measurement
value
2
Measure the coil’s secondary side with .
TRANSFORMER Measurement Screen
Primary
side
Secondary
side
Calculated value
Secondary
measurement value
To Next Page
