4.3 Setting DC Resistance Measurement
99
4
Chapter 4 LCR Function
With the averaging function, the measured values can be averaged. Using this function, it is possible to
reduce fluctuations in the measured value display.
After the signal level and range are set, measurement is performed for the set number of averaging times and
the measurement values are displayed.

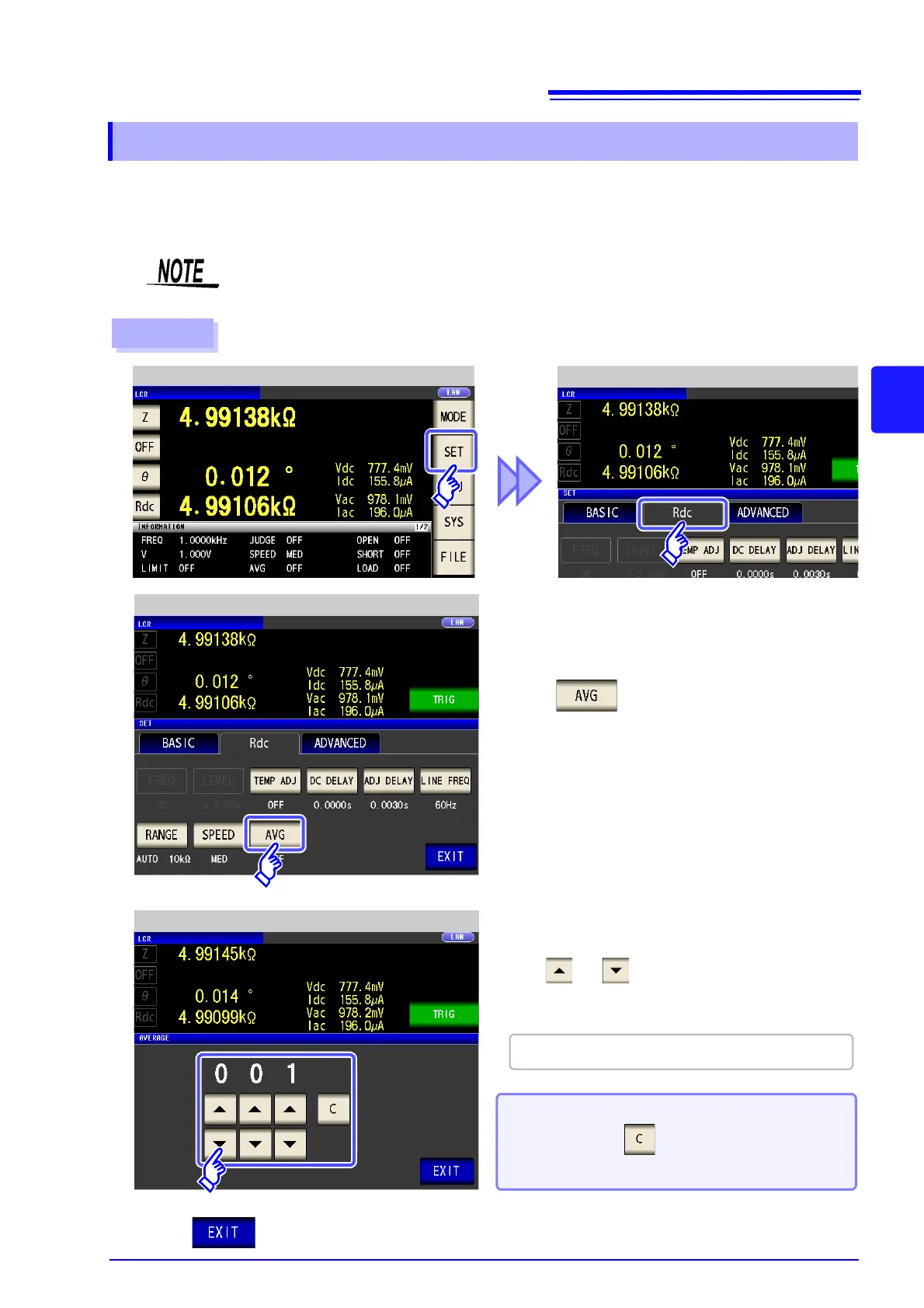

4.3.7 Displaying Average Values (Average set)
The averaging process during DC resistance measurement performs arithmetic mean pro-
cessing regardless of the trigger setting.
Procedure
LCR Measurement Screen
1
Rdc Basic Settings
Press .
2
Rdc Basic Settings
When you want to turn off the averaging
function: Press .
The number of averaging times is set to 1.
3
No. of Averaging Times Setting
Use or to enter the number of
averaging times.
Settable range: 1 to 256
4
Press to close the setting screen.
