4.4 Judging Measurement Results
107
4
Chapter 4 LCR Function
3
Setting Upper and Lower Limit Values as (%) Values Relative to the Off-
set from the Reference Value (Deviation Percentage Mode)

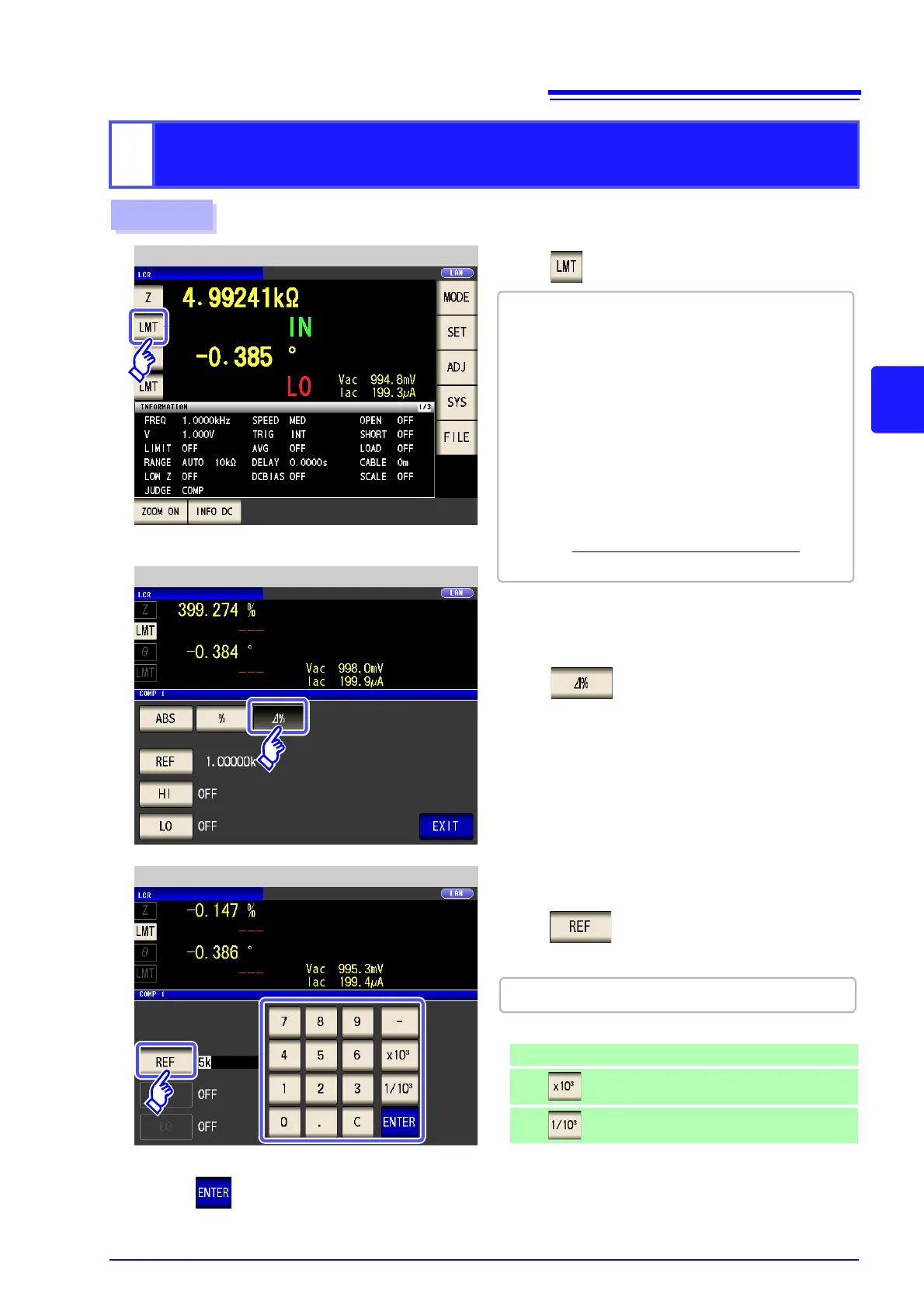

Procedure
1
Press .
Press to select deviation percentage
mode.
2
• In the deviation percentage mode, the measurement
value is displayed as a deviation (
%) from the refer-
ence value.
• The reference value and upperand lower limit values
are set in the same manner as in the percentage mode.
See "Setting the Upper or Lower Limit Value as a
Percentage (%) Relative to a Reference Value
(Percentage Mode)" (p. 105)
• The settings of the reference value and the upper
and lower limit values are common to both the per-
centage mode and deviation percentage mode.
•The
% value is calculated using the following equation:
% =
|reference value|
measurement value - reference value
×100
LCR Measurement Screen
Comparator Condition Setting
Press and use the numeric keypad to
enter the reference value.
3
Settable range: -9.99999G to 9.99999G
Reference Value Setting
Changing the unit (a/ f/ p/ n/ / m/ None/ k/ M/ G)
Step the units up.
Step the units down.
4
Press to confirm the reference value.
