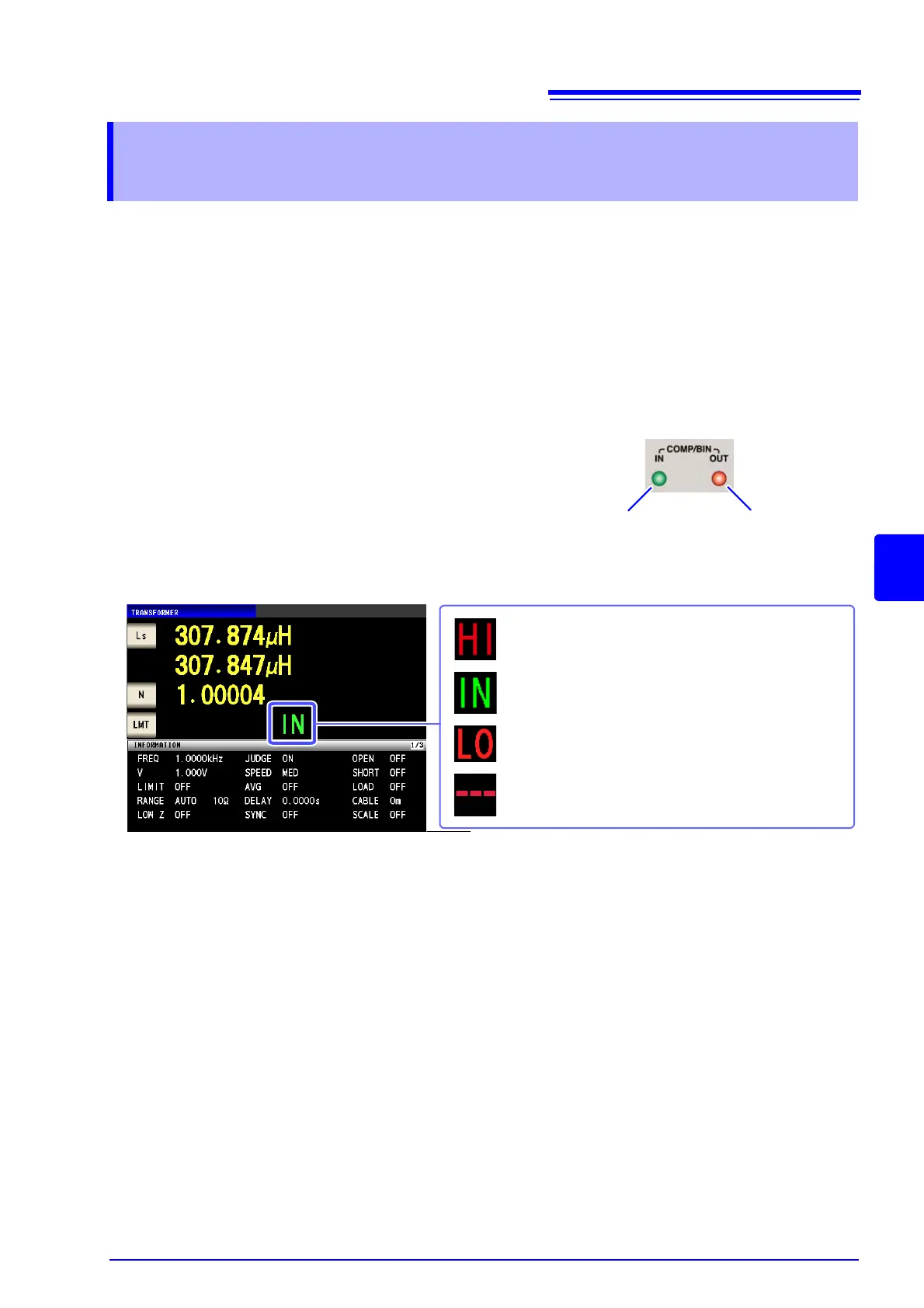

6.3 Judging with Upper and Lower Limit Values (Comparator Measurement Mode)
199
6
Chapter 6 TRANSFORMER Function
This function compares calculation parameter calculation results to a user-specified reference and displays a
judgment result.
In TRANSFORMER mode, only comparator measurement, which compares one judgment reference and the
calculated values, is available.
6.3 Judging with Upper and Lower Limit Val-
ues (Comparator Measurement Mode)
• Preset a reference value and upper and lower limit values as the judgment reference, and display a
calculation result as HI (higher than the upper limit value), IN (within the range set for the upper
and lower limit values), or LO (lower than the lower limit value).
• Output the judgment results to an external device (via the EXT I/O connector).
• Be notified of judgment results by buzzer.
See "4.5.11 Setting Operation Sounds (Beep Sounds)" (p. 143)
• Confirm the judgment result from the judgment result
indication LEDs on the front panel of the instrument.
See "Judgment Result Indication LEDs" (p. 10)
(Front panel LEDs)
Lights green Lights red
(When the comparator
measurement result is
HI or LO)
(When the comparator
measurement result is IN)
The calculated value is above upper limit
Upper limit value
 calculated value  lower limit value
The calculated value is below lower limit
If no judgment reference has been set
