3 Installing the spacers on both sides of the instrument, affix the Rack Mounting Plate with the
M4 x 12 mm screws.
1 Fold down the instrument's legs.
When installing into the rack, reinforce the installation with a commercially available support stand.
M4 x 6 mm
Spacers
Rack Mounting Plate (EIA)Rack Mounting Plate (JIS)
Spacers
M4 x 12 mm
M3 x 8 mm
M4 x 12 mm

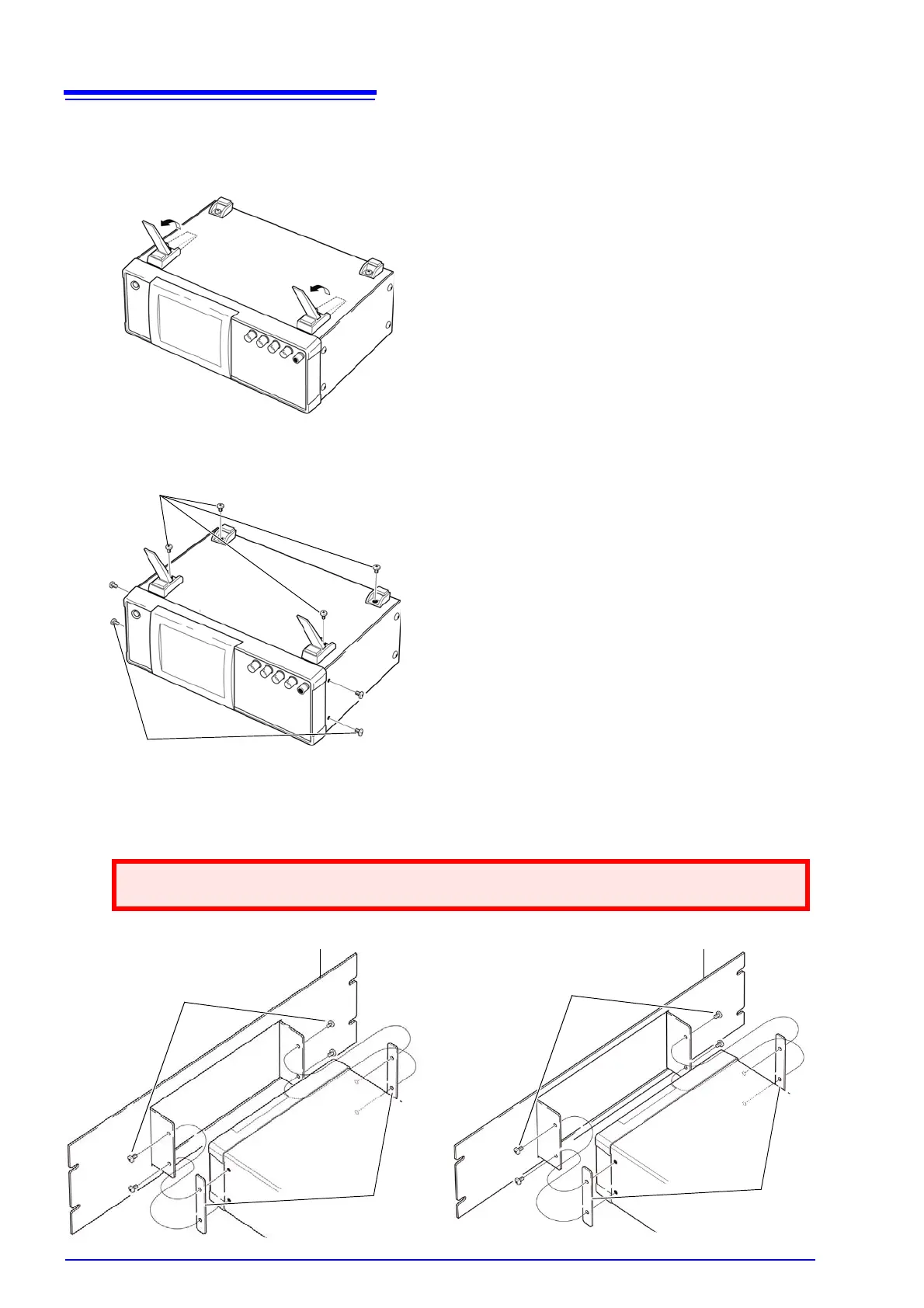

Installation Procedure
2 Remove the feed from the bottom of the instrument, and the screws from the sides (four near
the front).
To Next Page
