8.1 Setting Open Circuit Compensation
217
8
Chapter 8 Error Compensation
4
Open Compensation (All Compensation)
The compensation values from last time are dis-
played in a confirmation screen.
(If compensation has never been performed, the
compensation values become 0.)
Check that the measurement cable is in an open circuit
state.
When you want to limit the compensation
range: Press .
See "Compensation range limitation function" (p. 218)
When you do not want to acquire the compen-
sation values: Press .
The setting screen is redisplayed, and the compensation
values from last time become valid.
Press .
5
Compensation starts.
Compensation value acquisition time:
Approximately 45 seconds
When you want to cancel compensation:
Press .
Compensation is cancelled and the compensation
screen is redisplayed.
(The open circuit compensation value state from last
time remains.)

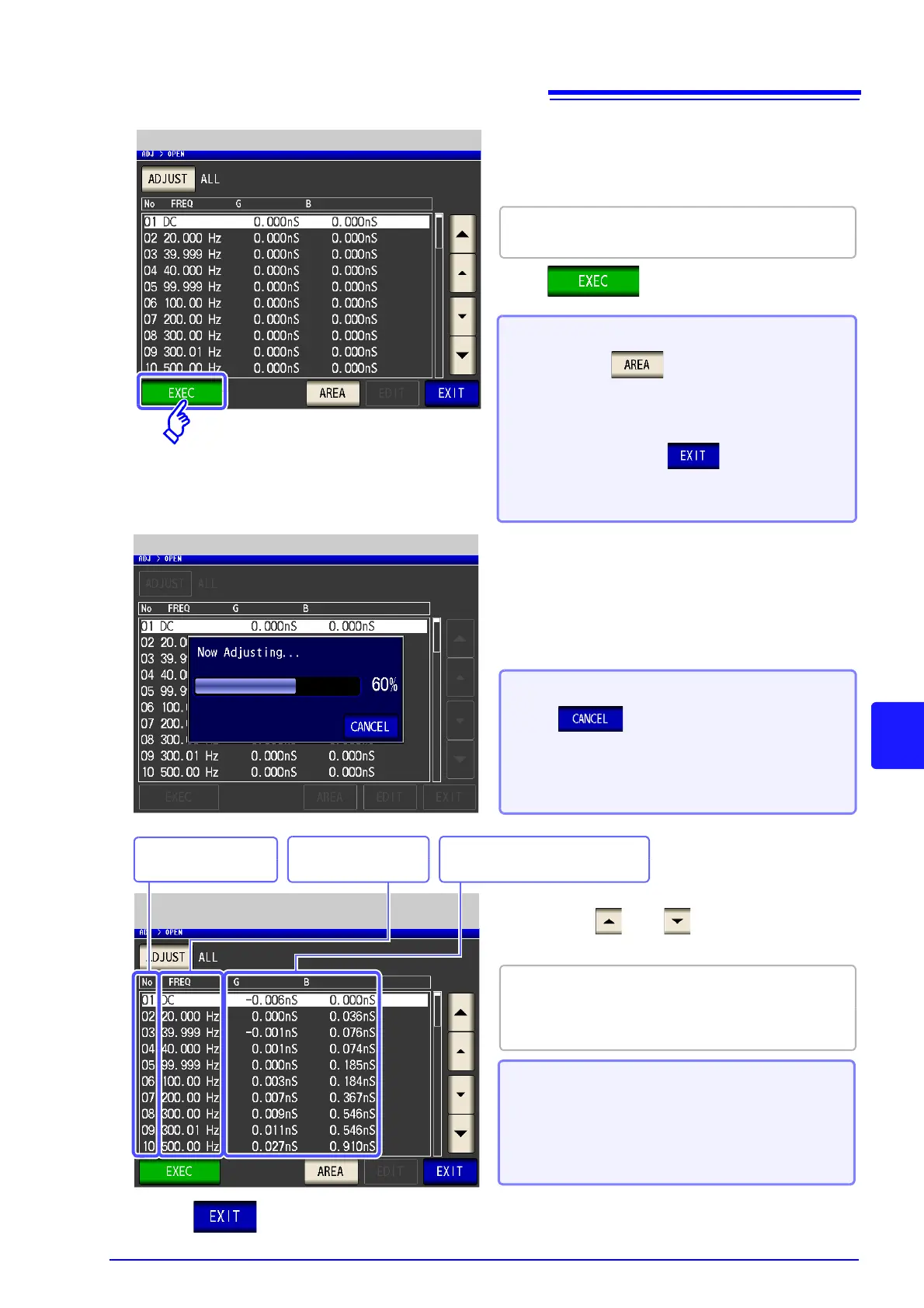

Performing Open Compensation (All Compensation)
6
• If compensation ends normally, the conductance
and susceptance are displayed.
• Compensation can be performed for impedances of at
least 1 k
.
You can use and to check the Conduc-
tance, susceptance of each compensation point.
Open Compensation
(All Compensation)
Indicates the compen-
sation numbers.
Indicates the measure-
ment frequencies.
Indicates the compensation results.
(Conductance, susceptance)
When unable to acquire normal compensa-
tion values: (p. 222)
When compensation failed: (p. 223)
When you want to disable open compensa-
tion data: (p. 223)
7
Press to close the setting screen.
