8.1 Setting Open Circuit Compensation
221
8
Chapter 8 Error Compensation
The compensation values from last time are dis-
played in a confirmation screen.
(If compensation has never been performed, the
compensation values become 0.)
5

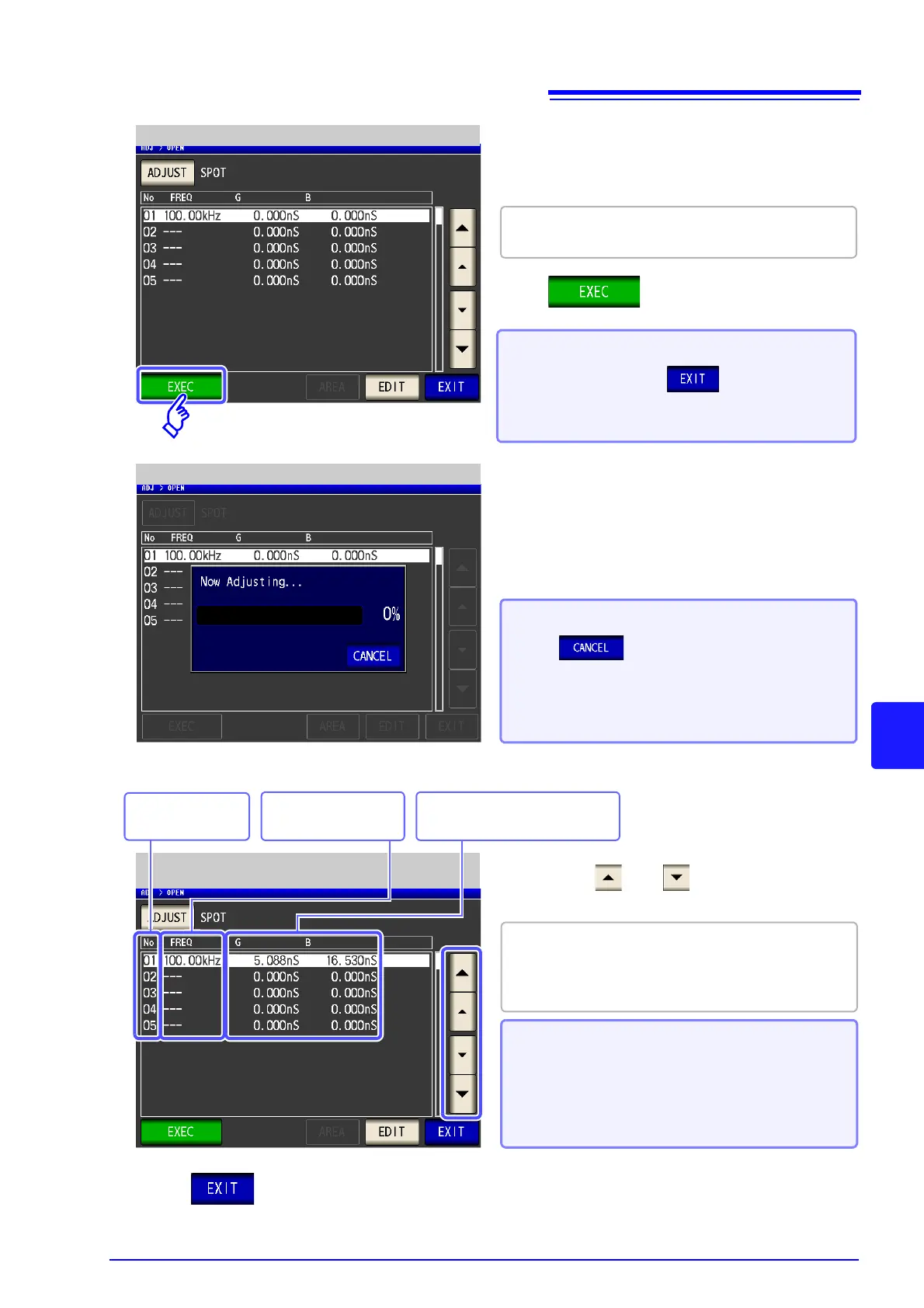

Open Compensation (Spot Compensation)
Check that the measurement cable is in an open circuit
state.
Press .
When you do not want to acquire the compen-
sation values: Press .
The compensation screen is redisplayed, and the com-
pensation values from last time become valid.
6
Compensation starts.
Compensation value acquisition time:
Varies with the measurement frequency and num-
ber of points.
Performing Open Compensation (Spot Compensation)
When you want to cancel compensation:
Press .
Compensation is cancelled and the compensation
screen is redisplayed.
(The open circuit compensation value state from last
time remains.)
When unable to acquire normal compensa-
tion values: (p. 222)
When compensation failed: (p. 223)
When you want to disable open compensa-
tion data: (p. 223)
7
• If compensation ends normally, the conductance
and susceptance are displayed.
• Compensation can be performed for impedances of at
least 1 k
.
You can use and to check the Conduc-
tance, susceptance of each compensation point.
Open Compensation
(Spot Compensation)
Indicates the measure-
ment frequencies.
Indicates the com-
pensation numbers.
Indicates the compensation results.
(Conductance, susceptance)
8
Press to close the setting screen.
