112

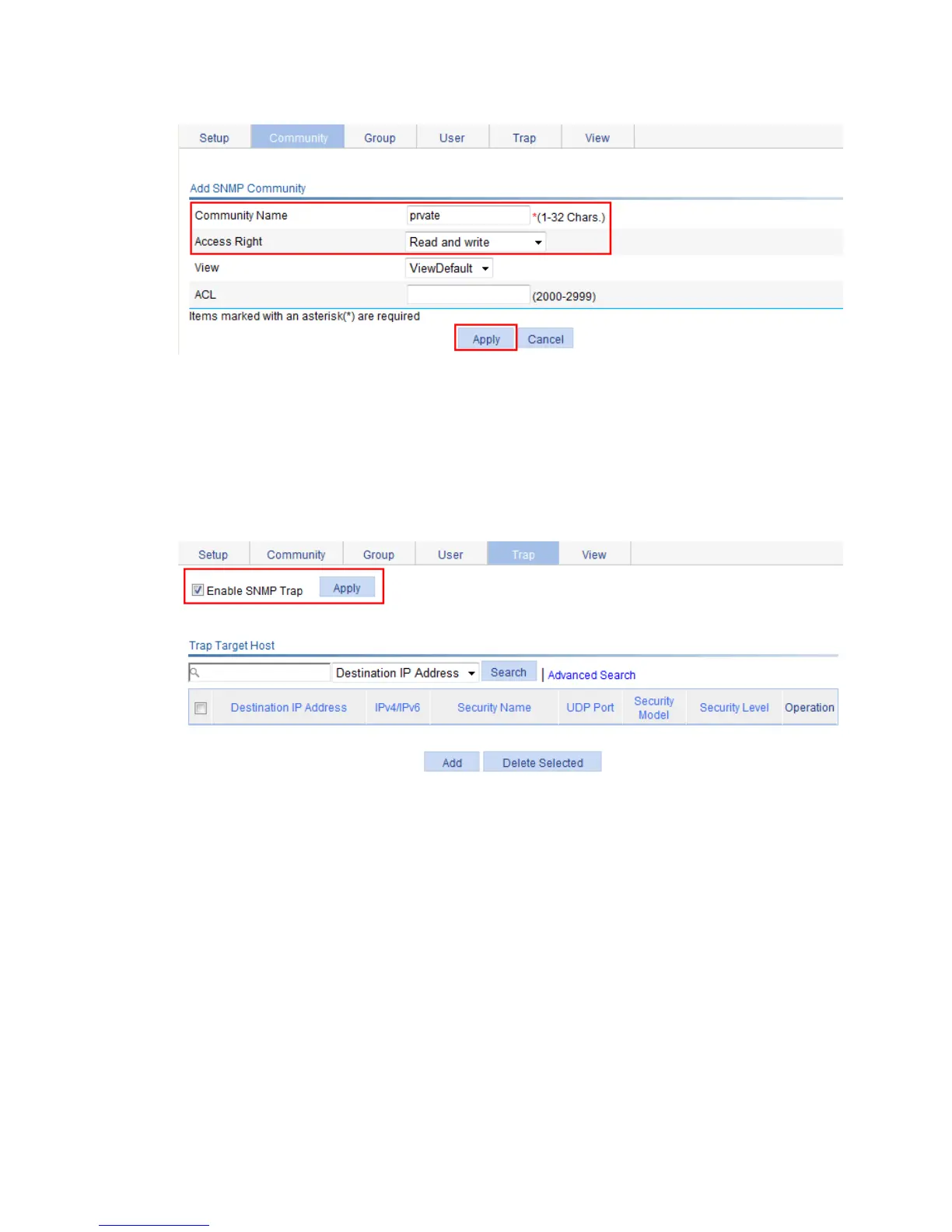

Figure 106 Configuring an SNMP read and write community
b. Enter private in the Community Name field and select Read and write from the Access Right list.
c. Click Apply.
4. Enable SNMP traps:
a. Click the Trap tab.
The Trap page appears.
Figure 107 Enabling SNMP traps
b. Select Enable SNMP Trap.
c. Click Apply.
5. Configure a target host SNMP traps:
a. Click Add on the Trap page.
The page for adding a target host of SNMP traps appears.
