HP 830 Series User Manual

127
Item Descri
p
tion
Select membership
type
Set the member type of the port to be modified in the VLAN:
• Untagged—Configures the port to send the traffic of the VLAN after removing the
VLAN tag.
• Tagged—Configures the port to send the traffic of the VLAN without removing the
VLAN tag.
• Not A Member—Removes the port from the VLAN.
Select ports to be
modified and
assigned to this VLAN
Select the ports to be modified in the selected VLAN.
When you configure an access port as a tagged member of a VLAN, the link type of
the port is automatically changed into hybrid.
Modifying ports
1. Select Network > VLAN from the navigation tree.
2. Click Modify Port.

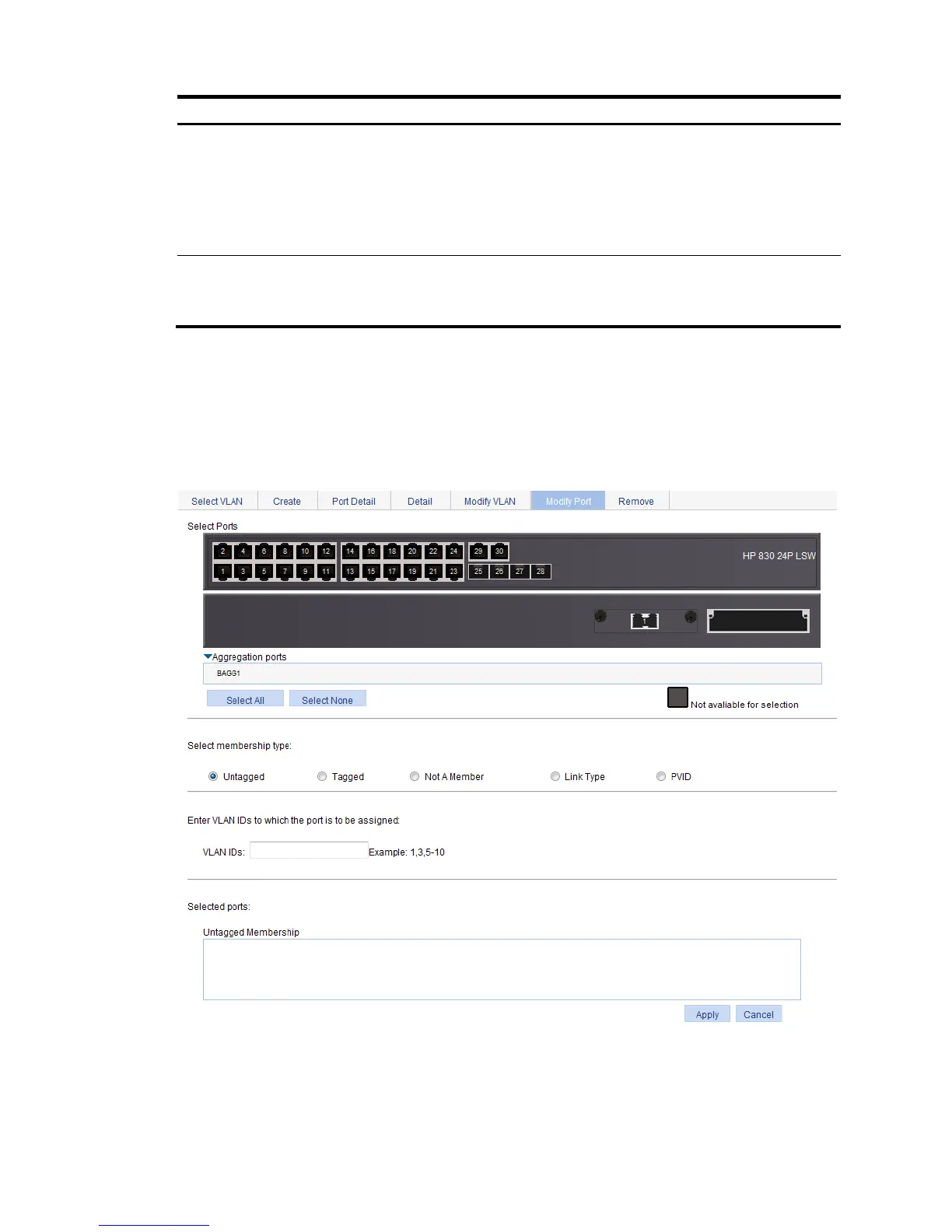

Figure 125 Modifying ports
3. Modify the VLANs of a port as described in Table 42.
4. Click Apply.
A progress dialog box appears.
