HP 830 Series User Manual

448
Authorized IP configuration example
Network requirements
In Figure 464, configure Switch to deny Telnet and HTTP requests from Host A, and permit Telnet and
HTTP requests from Host B.

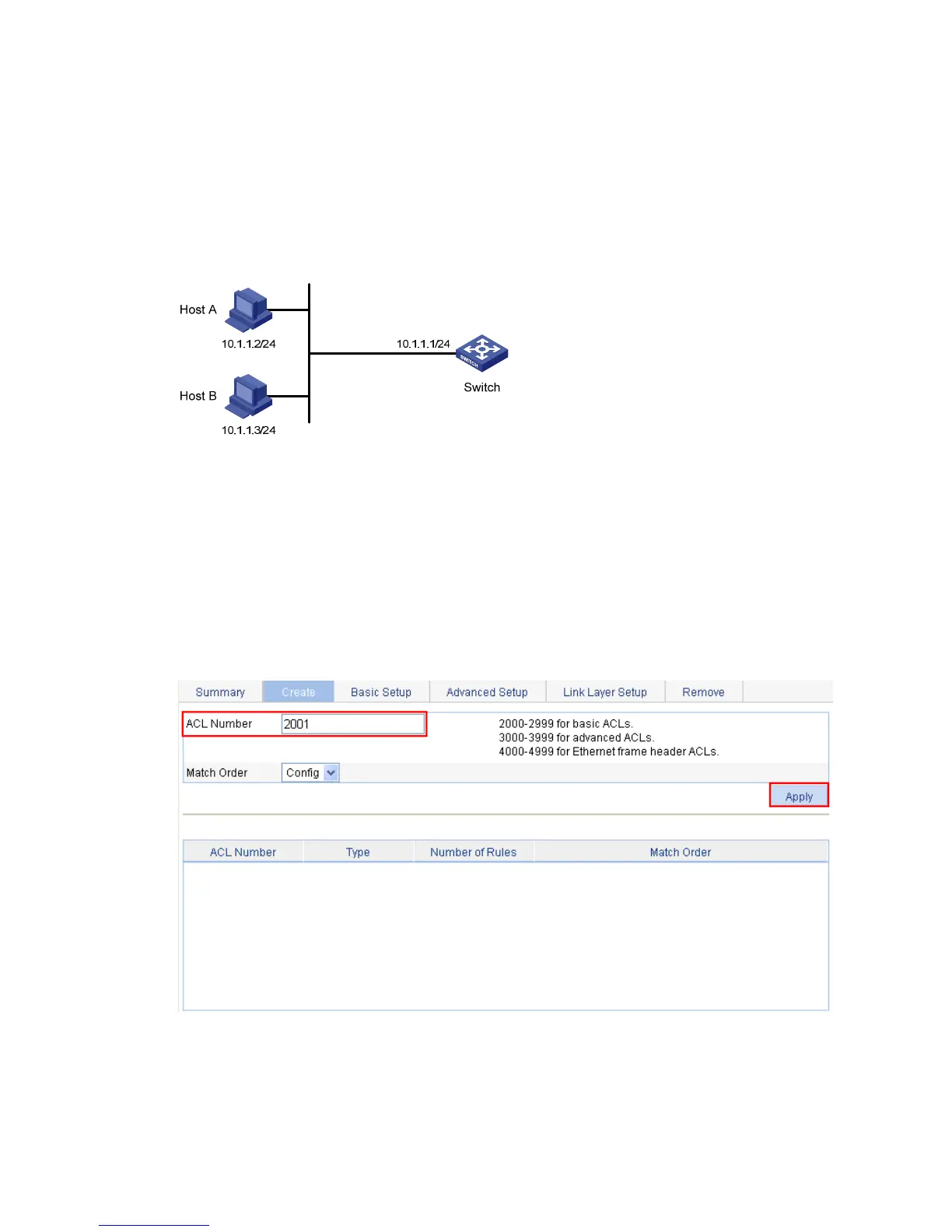

Figure 464 Network diagram
Configuration procedure
1. Create an ACL:
a. Select QoS > ACL IPv4 from the navigation tree.
b. Click the Create tab.
c. Enter 2001 for ACL Number.
d. Click Apply.
Figure 465 Creating an ACL
2. Configure an ACL rule to permit Host B:
a. Click the Basic Setup tab.
The page for configuring an ACL rule appears.
