298
MAC authentication configuration examples
Local MAC authentication configuration example
Network requirements
As shown in Figure 283, perform local MAC authentication on port GigabitEthernet 1/0/1 to control
Internet access.
• All users belong to the domain aabbcc.net.
• Local users use their MAC addresses as the username and password for MAC authentication. The
MAC addresses are hyphenated and in lower case.
• The access device detects whether a user has gone offline every 180 seconds. When a user fails
authentication, the device does not authenticate the user within 180 seconds.

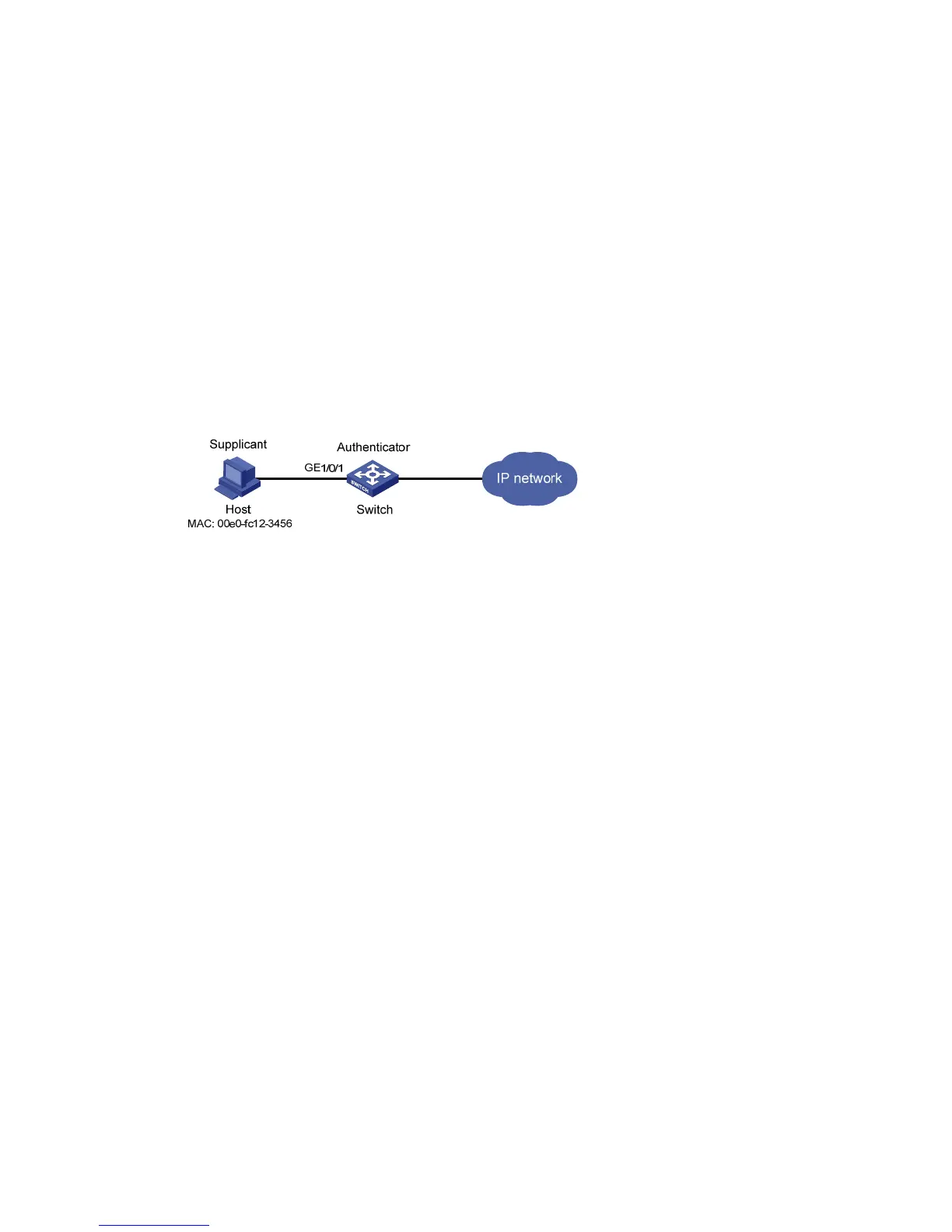

Figure 283 Network diagram
Configuring a local user
Add a local user, setting the username and password as 00-e0-fc-12-34-56, the MAC address of the user,
and the service type to LAN access. (Details not shown.)
Configuring AAA
1. From the navigation tree, select Authentication > AAA.
The Domain Setup tab appears.
2. Enter the domain name aabbcc.net.
3. Click Apply.

