HP 830 Series - Configuring Queue Scheduling on a Port

490
3. Apply a policy to a port as described in Table 156.
4. Click Apply.
Table 156 Configuration items
Item Descri
p
tion
Please select a policy Select an existing policy in the list.
Direction
Set the direction in which the policy is to be applied.
• Inbound—Applies the policy to the incoming packets of the specified ports.
• Outbound—Applies the policy to the outgoing packets of the specified ports.
Please select port(s)
Click to select ports to which the QoS policy is to be applied on the chassis front
panel.
Configuring queue scheduling on a port
1. Select QoS > Queue from the navigation tree.
2. Click Setup to enter the queue scheduling configuration page.

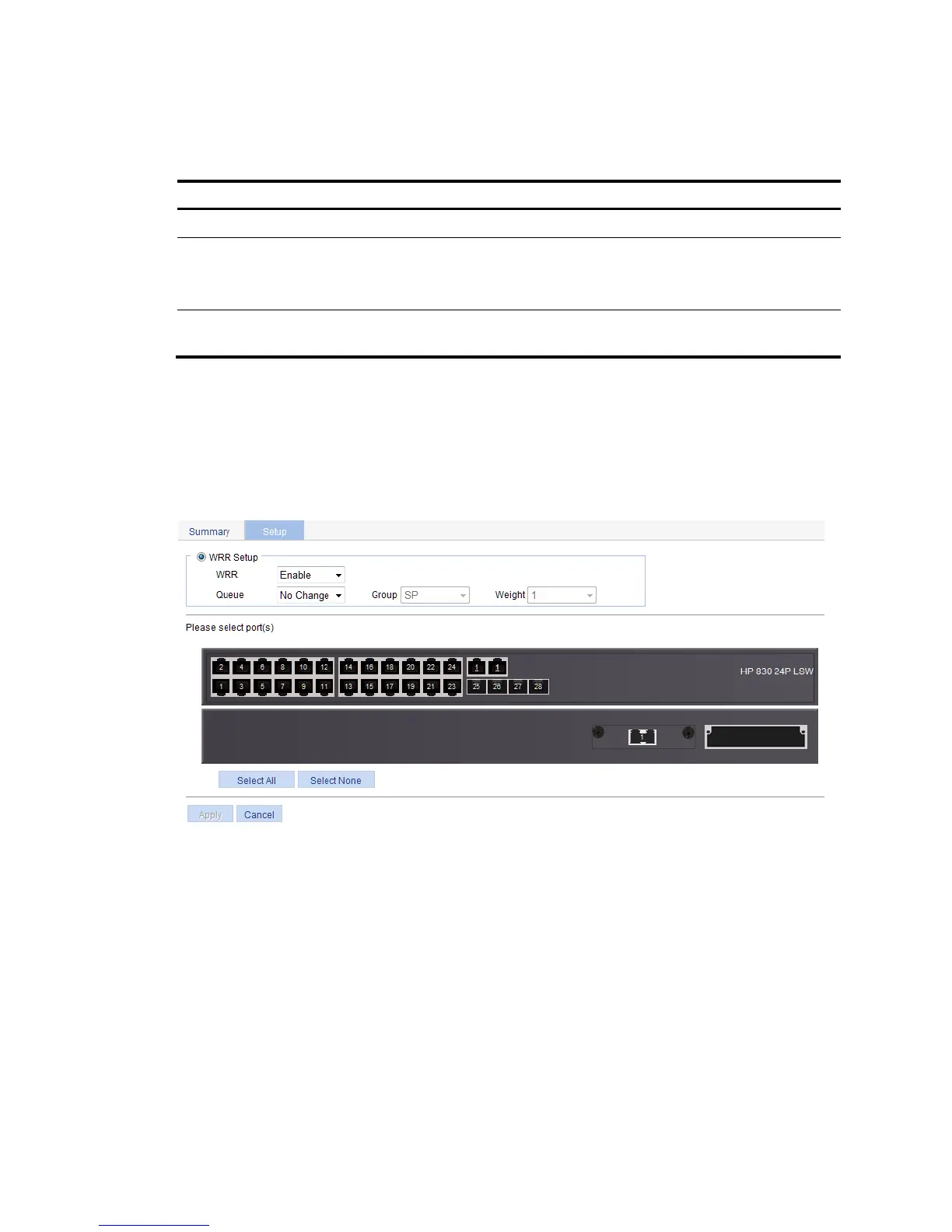

Figure 494 Configuring queue scheduling
3. Configure queue scheduling on a port as described in Table 157.
4. Click Apply.
