Local port mirroring configuration example
Network requirements
As shown in Figure 53, configure local port mirroring on Switch C to monitor the packets received and
sent by Department 1 and Department 2.
To meet the network requirements, perform the following configuration on Switch C:
• Configure GigabitEthernet 1/0/1 and GigabitEthernet1/0/2 as mirroring ports.
• Configure GigabitEthernet 1/0/3 as a monitor port.

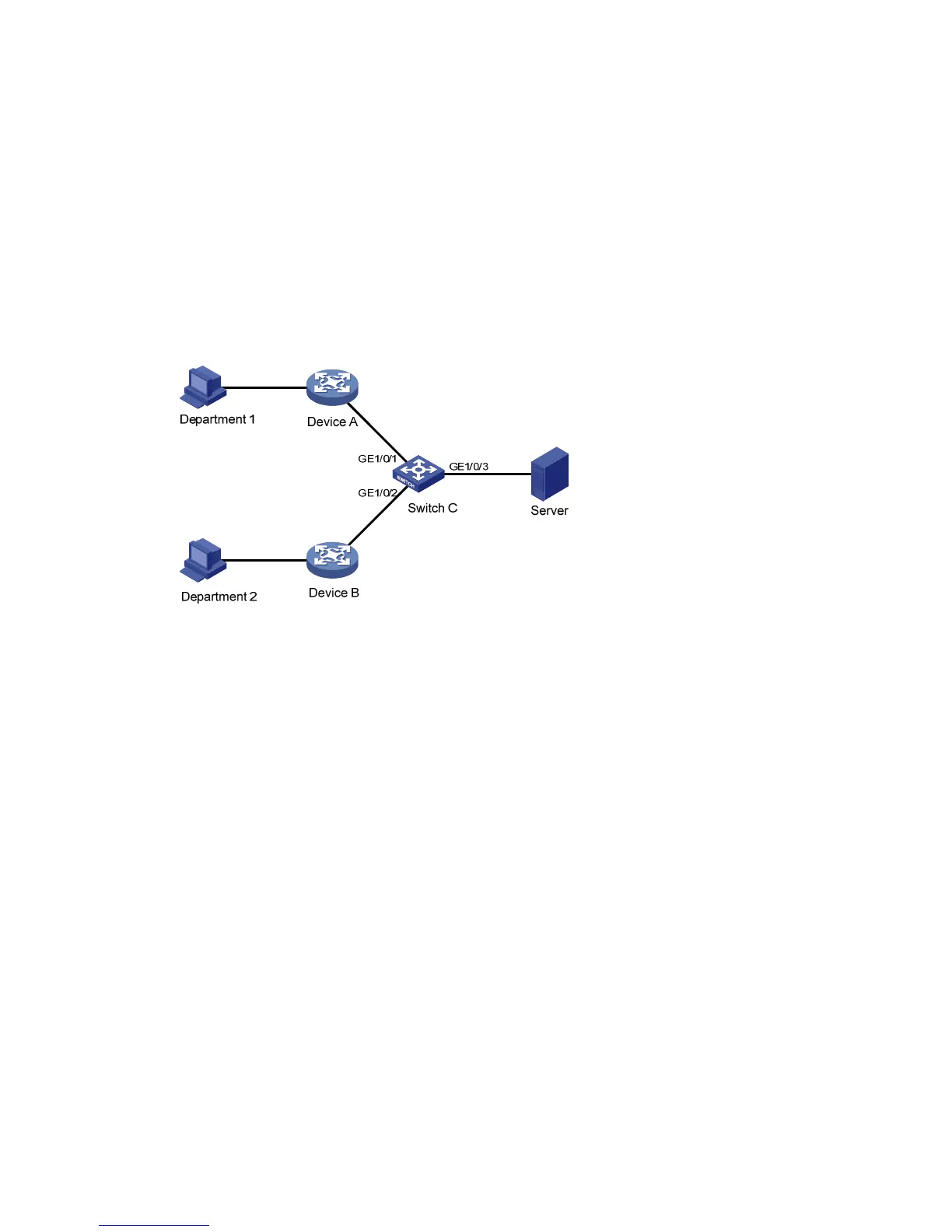

Figure 53 Network diagram
Creating a local port mirroring group
1. From the navigation tree, select Device > Port Mirroring.
2. Click the Create tab.
The page for creating the mirroring group appears.
3. Enter 1 for Mirroring Group ID.
4. Set the type of the mirroring group to Local.
5. Click Apply.
