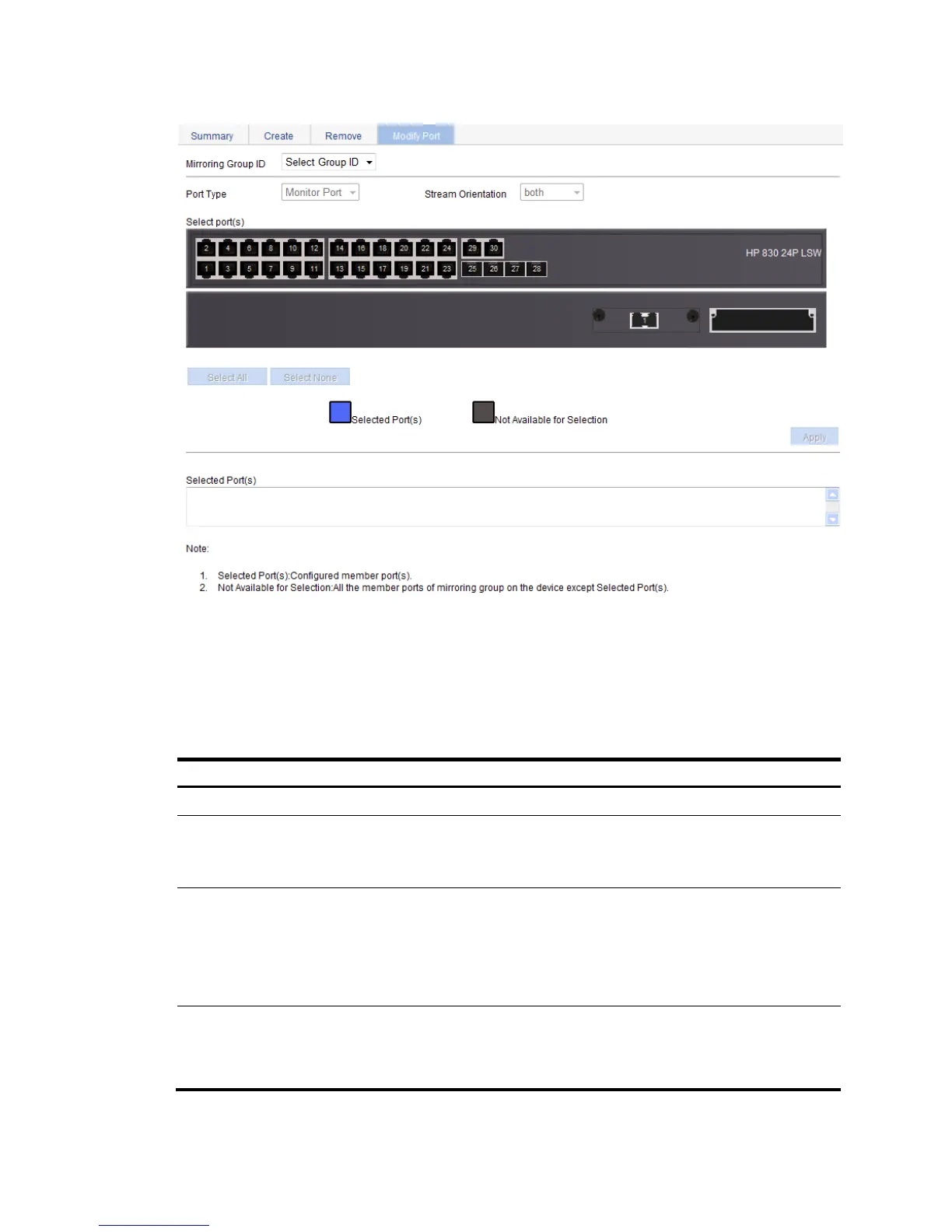

Figure 52 Configuring ports for a mirroring group
3. Configure ports for the mirroring group as described in Table 15.
4. Click Apply.
A progress dialog box appears.
5. After the success notification appears, click Close.
Table 15 Configuration items
Item Descri
Mirroring Group ID
ID of the local mirroring group to be configured.
Port Type
Set the types of the ports to be configured:
• Monitor Port—Configures the monitor port for the local mirroring group.
• Mirror Port—Configures mirroring ports for the local mirroring group.
Stream Orientation
Set the direction of the traffic monitored by the monitor port of the mirroring group.
This configuration item is available when Mirror Port is selected in the Port Type list.
• both—Mirrors both received and sent packets on mirroring ports.
• inbound—Mirrors only packets received by mirroring port.
• outbound—Mirrors only packets sent by mirroring ports.
Select Port(s)
Select the ports to be configured on the chassis front panel. If aggregate interfaces are
configured on the device, the page displays a list of aggregate interfaces below the
chassis front panel. You can select aggregate interfaces from this list and configure
them as mirroring ports of a port mirroring group.
