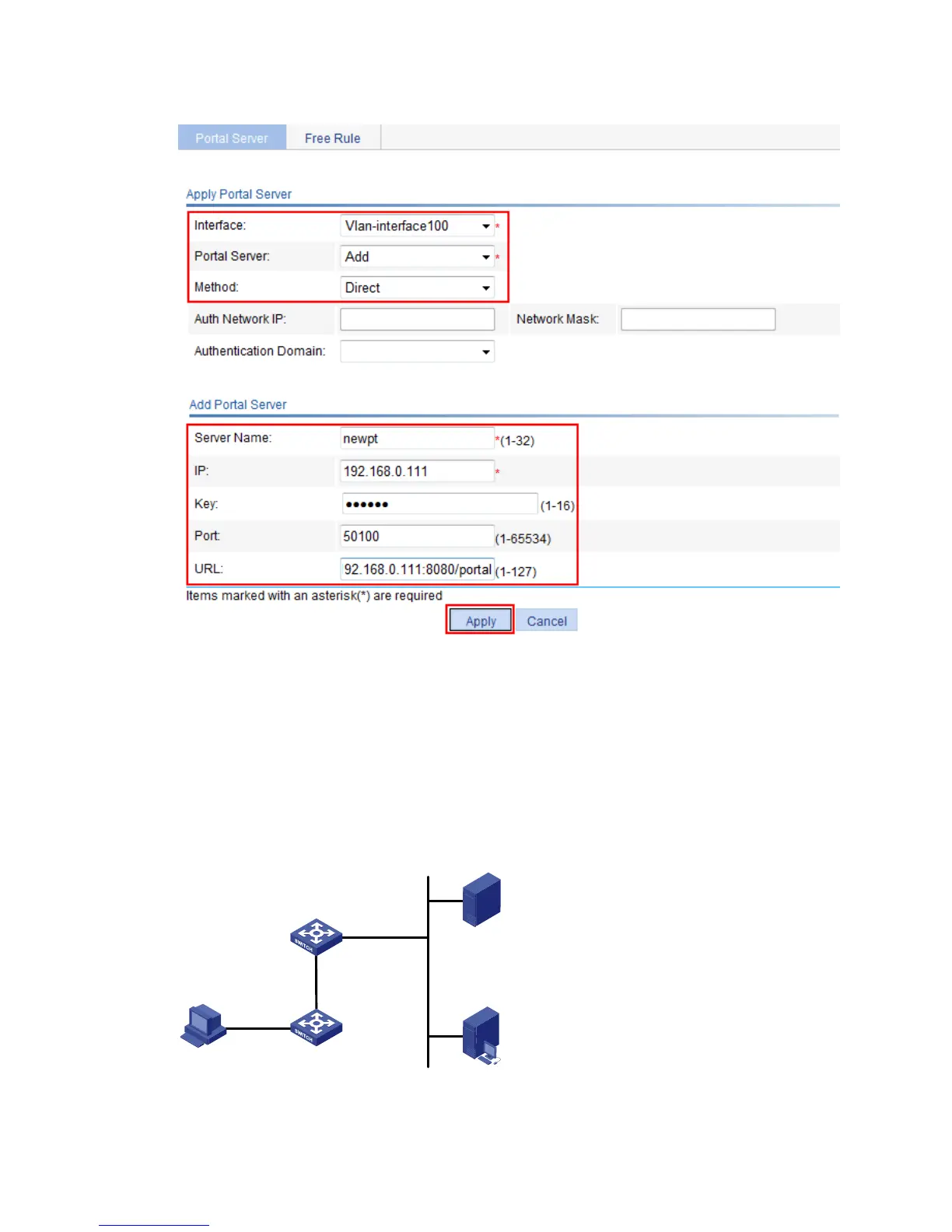

Figure 393 Applying the portal server to a Layer 3 interface
Configuring cross-subnet portal authentication
Network requirements
As shown in Figure 394, configure Switch A to perform cross-subnet portal authentication for users.
Before passing portal authentication, the host can access only the portal server. After passing portal
authentication, the host can access Internet resources. Use the IMC server as the RADIUS server for user
authentication, authorization, and accounting.
Figure 394 Network diagram
Switch A
Host
Vlan-int4
20.20.20.1/24
Portal server
192.168.0.111/24
RADIUS server
192.168.0.112/24
Vlan-int2
192.168.0.100/24
Switch B
Vlan-int4
20.20.20.2/24
Vlan-int2
8.8.8.1/24
8.8.8.2/24
