Item Descri
p
tion
Action
Select the action to be performed for packets matching the rule:
• Permit—Allows matched packets to pass.
• Deny—Drops matched packets.
MAC
Address
Filter
Source MAC
Address
Select the Source MAC Address box and enter a source MAC address and
a mask.
Source Mask
Destination MAC
Address
Select the Destination MAC Address box and enter a destination MAC
address and a mask.
Destination Mask
COS(802.1p priority) Specify the 802.1p priority for the rule.
Type Filter
LSAP Type
Select the LSAP Type box and specify the DSAP and SSAP fields in the LLC
encapsulation by configuring the following items:
• LSAP Type—Indicates the frame encapsulation format.
• LSAP Mask—Indicates the LSAP mask.
LSAP Mask
Protocol Type
Select the Protocol Type box and specify the link layer protocol type by
configuring the following items:
• Protocol Type—Indicates the frame type. It corresponds to the type-code
field of Ethernet_II and Ethernet_SNAP frames.
• Protocol Mask—Indicates the protocol mask.
Protocol Mask
Time Range Select the time range during which the rule takes effect.
Adding an IPv6 ACL
1. Select QoS > ACL IPv6 from the navigation tree.
2. Click the Create tab to enter the IPv6 ACL configuration page.

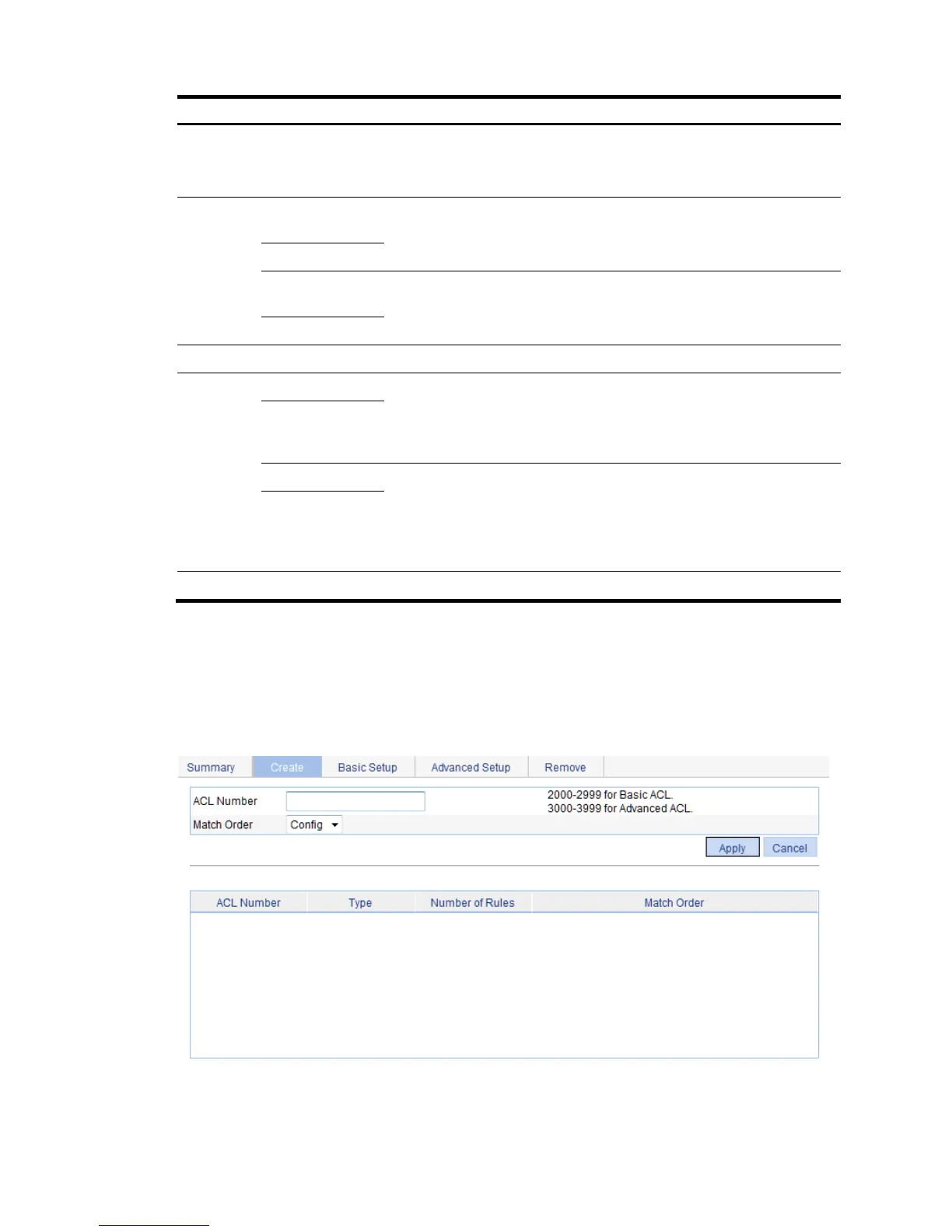

Figure 473 Adding an IPv6 ACL
3. Add an IPv6 ACL as described in Table 140.
