277

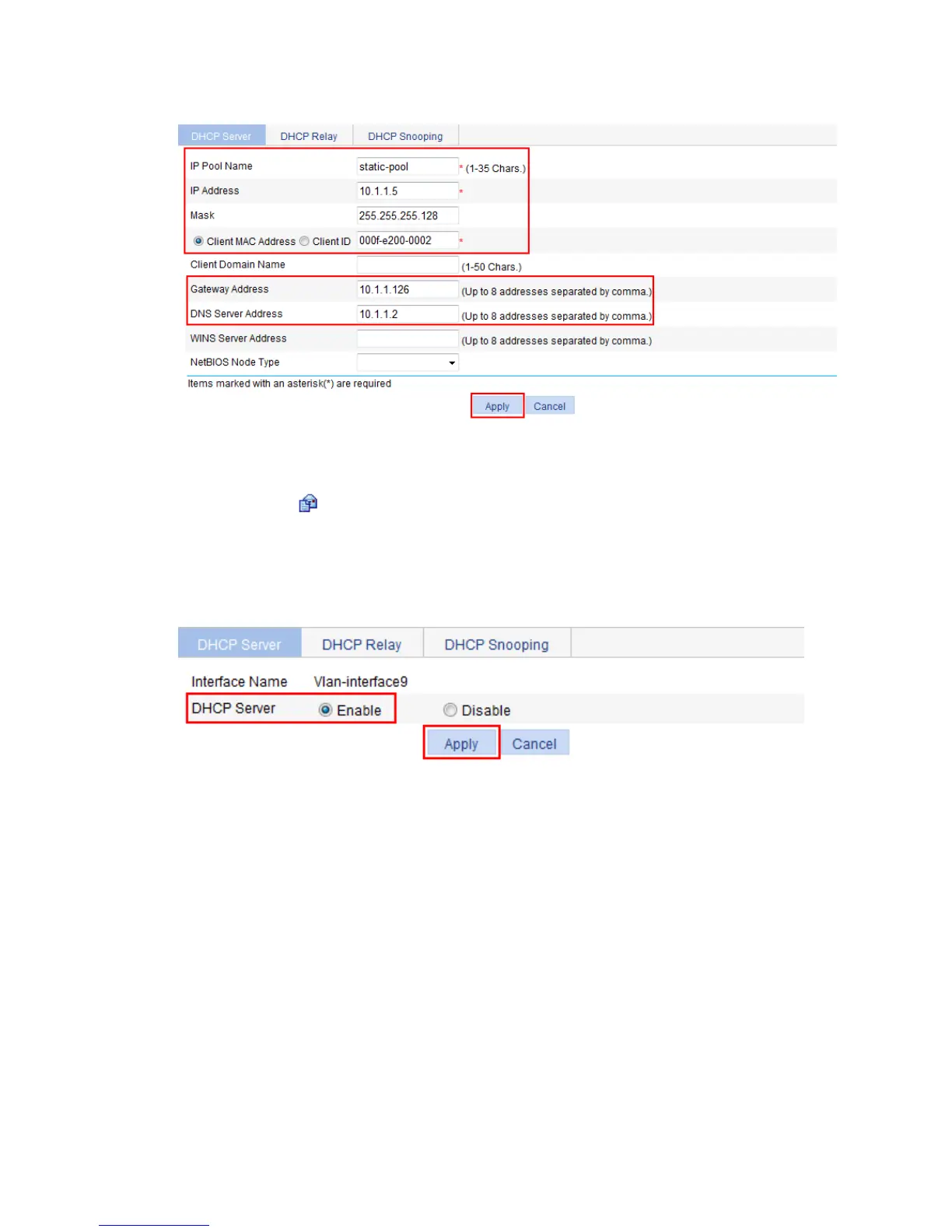

Figure 260 Configuring a static address pool
3. Enable the DHCP server on VLAN-interface 9 (you can skip this step because the DHCP server is
enabled on the interface by default):
a. Click the icon of VLAN-interface 9 in the Interface Configuration field to enter the page as
shown in Figure 261.
b. Selec
t the Enable option.
c. Click Apply.
Figure 261 Enabling the DHCP server on an interface
Dynamic IP address assignment configuration example
Network requirements
• As shown in Figure 262, the DHCP server (Switch A) assigns IP addresses to clients on subnet
10 .1.1. 0 / 24 , w h i c h i s s u b n e t t e d i n t o 10 .1.1. 0 / 2 5 a n d 10 .1.1.12 8 / 2 5 .
• The IP addresses of VLAN-interface 1 and VLAN-interface 9 on Switch A are 10.1.1.1/25 and
10 .1.1.12 9 / 25 r e s p e c t i v e l y.
• In subnet 10.1.1.0/25, configure the address lease duration as ten days and twelve hours, domain
name suffix aabbcc.com, DNS server address 10.1.1.2/25, WINS server address 10.1.1.4/25, and
gateway address 10.1.1.126/25.
• In the subnet 10.1.1.128/25, configure the address lease duration as five days, domain name suffix
aabbcc.com, DNS server address 10.1.1.2/25, and gateway address 10.1.1.254/25.
• The domain name suffix and DNS server address on subnets 10.1.1.0/25 and 10.1.1.128/25 are the
same. Therefore, the domain name suffix and DNS server address need to be configured only for
