219

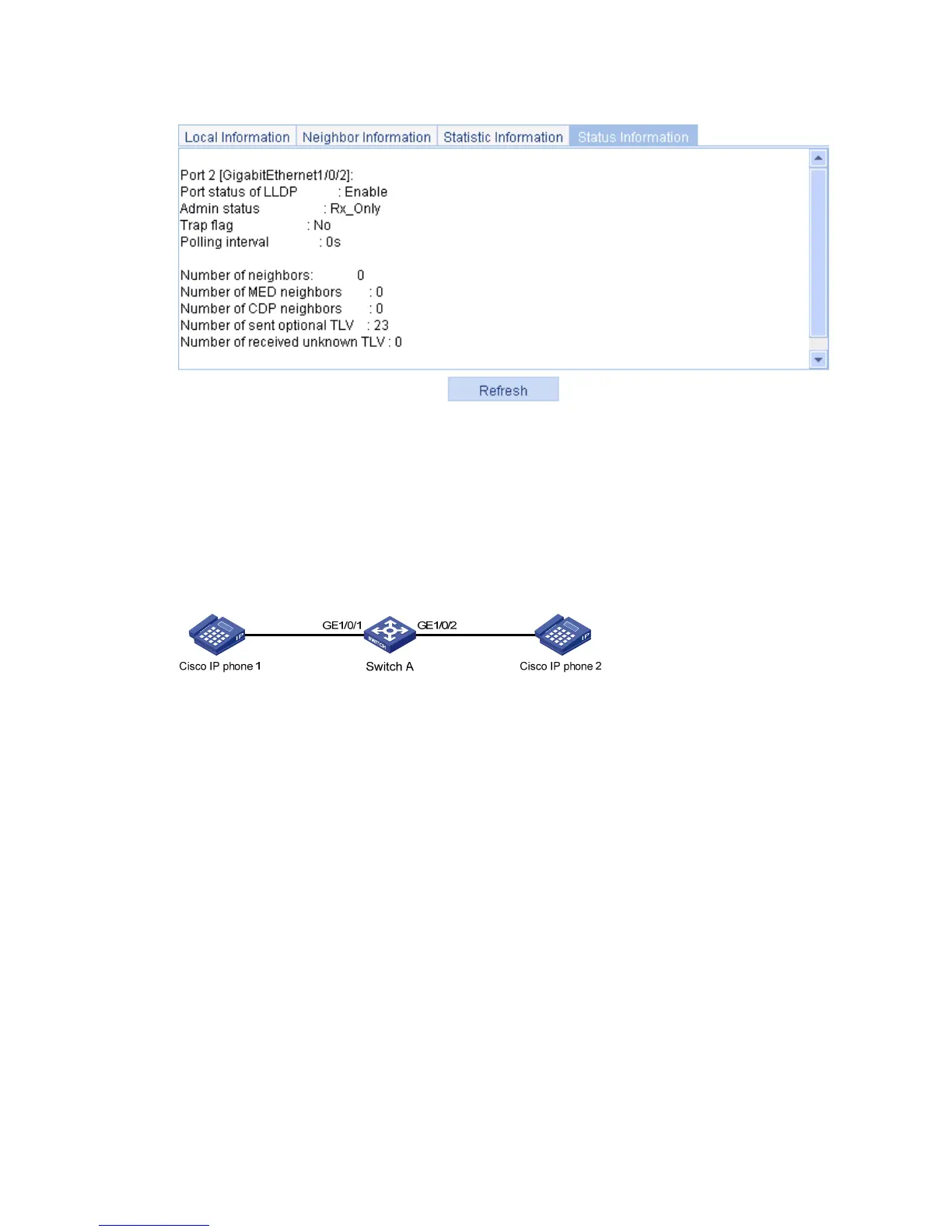

Figure 198 The status information tab displaying the updated port status information
CDP-compatible LLDP configuration example
Network requirements
As shown in Figure 199, on Switch A, configure VLAN 2 as a voice VLAN and configure CDP-compatible
LLDP to enable the Cisco IP phones to automatically configure the voice VLAN, confining their voice
traffic within the voice VLAN to be separate from other types of traffic.
Figure 199 Network diagram
Configuring Switch A
1. Create VLAN 2:
a. Select Network > VLAN from the navigation tree.
b. Click Create to enter the page for creating VLANs.
c. Enter 2 in the VLAN IDs field.
d. Click Create.
