Packet precedences
IP precedence and DSCP values

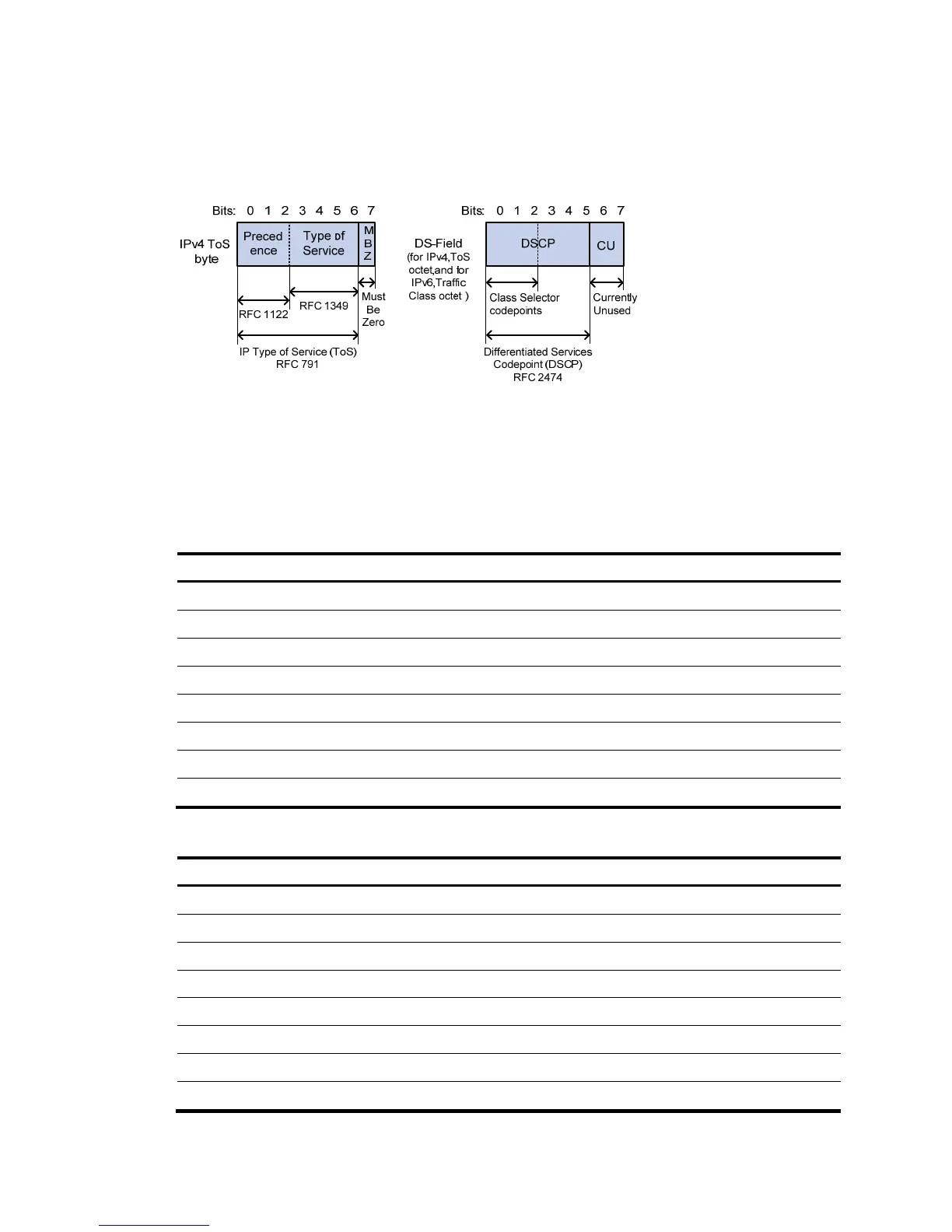

Figure 478 ToS field and DS field
As shown in Figure 478, the ToS field of the IP header contains eight bits: the first three bits (0 to 2)
represent IP precedence from 0 to 7. The subsequent four bits (3 to 6) represent a ToS value from 0 to 15.
According to RFC 2474, the ToS field of the IP header is redefined as the differentiated services (DS) field,
where a differentiated services code point (DSCP) value is represented by the first six bits (0 to 5) and is
in the range 0 to 63. The remaining two bits (6 and 7) are reserved.
Table 143 Description on IP Precedence
IP Precedence (decimal) IP Precedence (binar
y
) Descri
p
tion
0 000 routine
1 001 priority
2 010 immediate
3 011 flash
4 100 flash-override
5 101 critical
6 110 internet
7 111 network
Table 144 Description on DSCP values
DSCP value (decimal) DSCP value (binar
y
) Descri
p
tion
46 101110 ef
10 001010 af11
12 001100 af12
14 001110 af13
18 010010 af21
20 010100 af22
22 010110 af23
26 011010 af31
