MAC address table configuration example
Network requirements
Use the Web-based NMS to configure the MAC address table of the device. Add a static MAC address
00e0-fc35-dc71 under GigabitEthernet 1/0/1 in VLAN 1.
Creating a static MAC address entry
1. Select Network > MAC from the navigation tree.
By default, the MAC tab is displayed.
2. Click Add.
3. Configure a MAC address entry:
a. Enter MAC address 00e0-fc35-dc71.
b. Select static in the Type list.
c. Select 1 in the VLAN list.
d. Select GigabitEthernet1/0/1 in the Port list.
4. Click Apply.

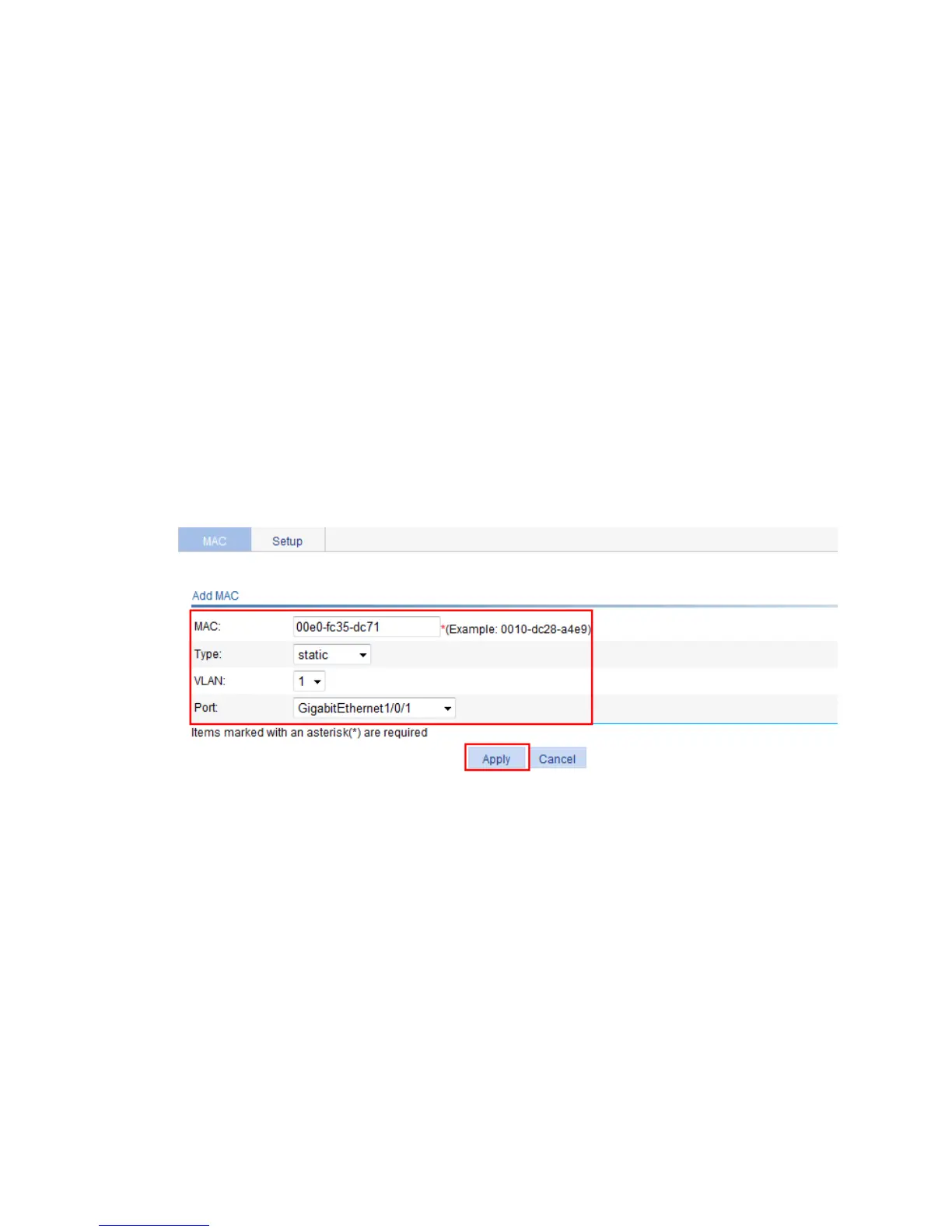

Figure 158 Creating a static MAC address entry
