HP 830 Series - Configuring Voice VLAN on a Port in Manual Voice VLAN Assignment Mode

149

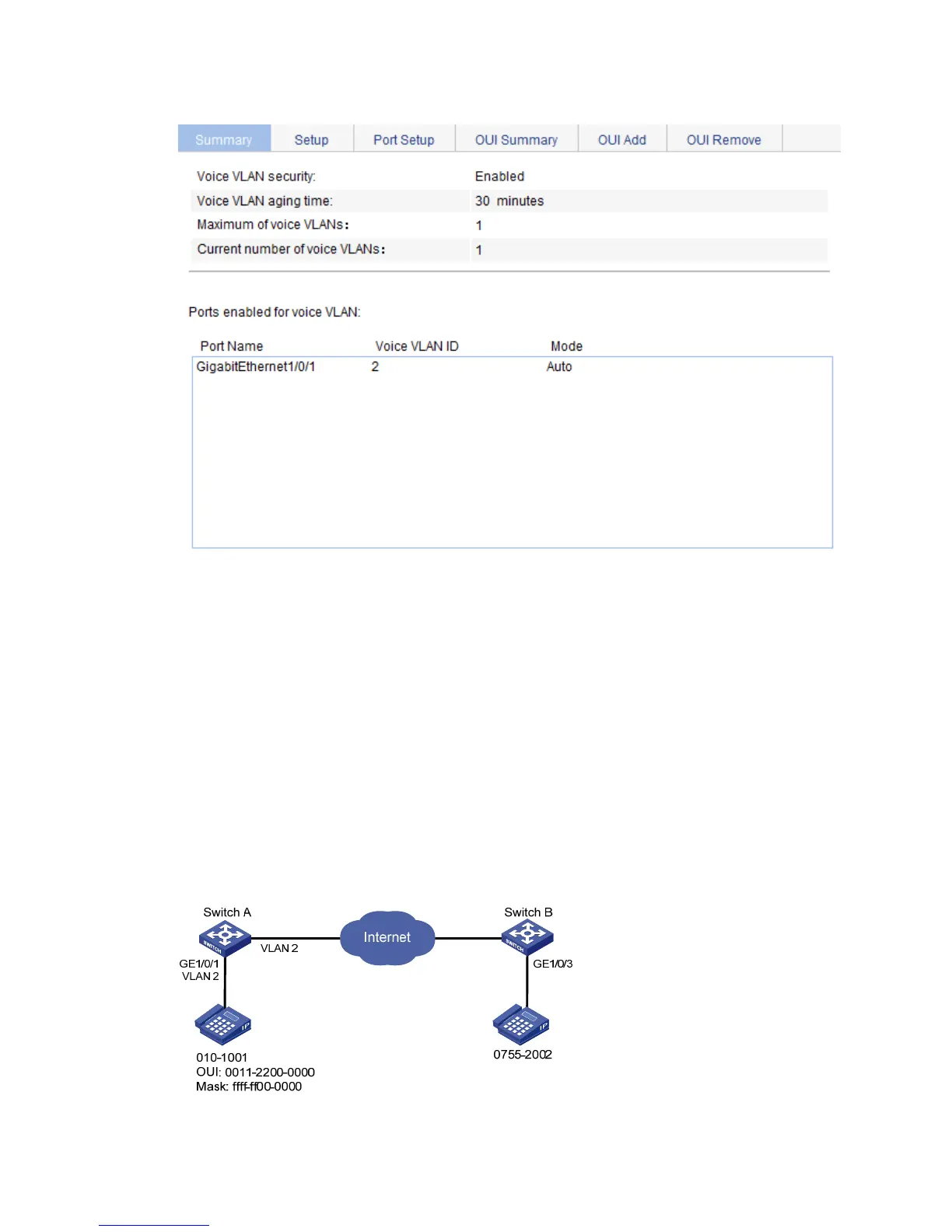

Figure 146 Displaying voice VLAN information
Configuring voice VLAN on a port in manual voice VLAN
assignment mode
Network requirements
As shown in Figure 147:
• Configure VLAN 2 as a voice VLAN that carries only voice traffic.
• The IP phone connected to hybrid port GigabitEthernet 1/0/1 sends untagged voice traffic.
• GigabitEthernet 1/0/1 operates in manual voice VLAN assignment mode, and allows voice
packets whose source MAC addresses match the OUI addresses specified by OUI address
0011-2200-0000 and mask ffff-ff00-0000 to pass through. The description of the OUI address entry
is test.
Figure 147 Network diagram
