IPv6 static route configuration example
Network requirements
The IP addresses of devices are shown in Figure 240. IPv6 static routes need to be configured on Switch
A, Switch B and Switch C for any two hosts to communicate with each other.

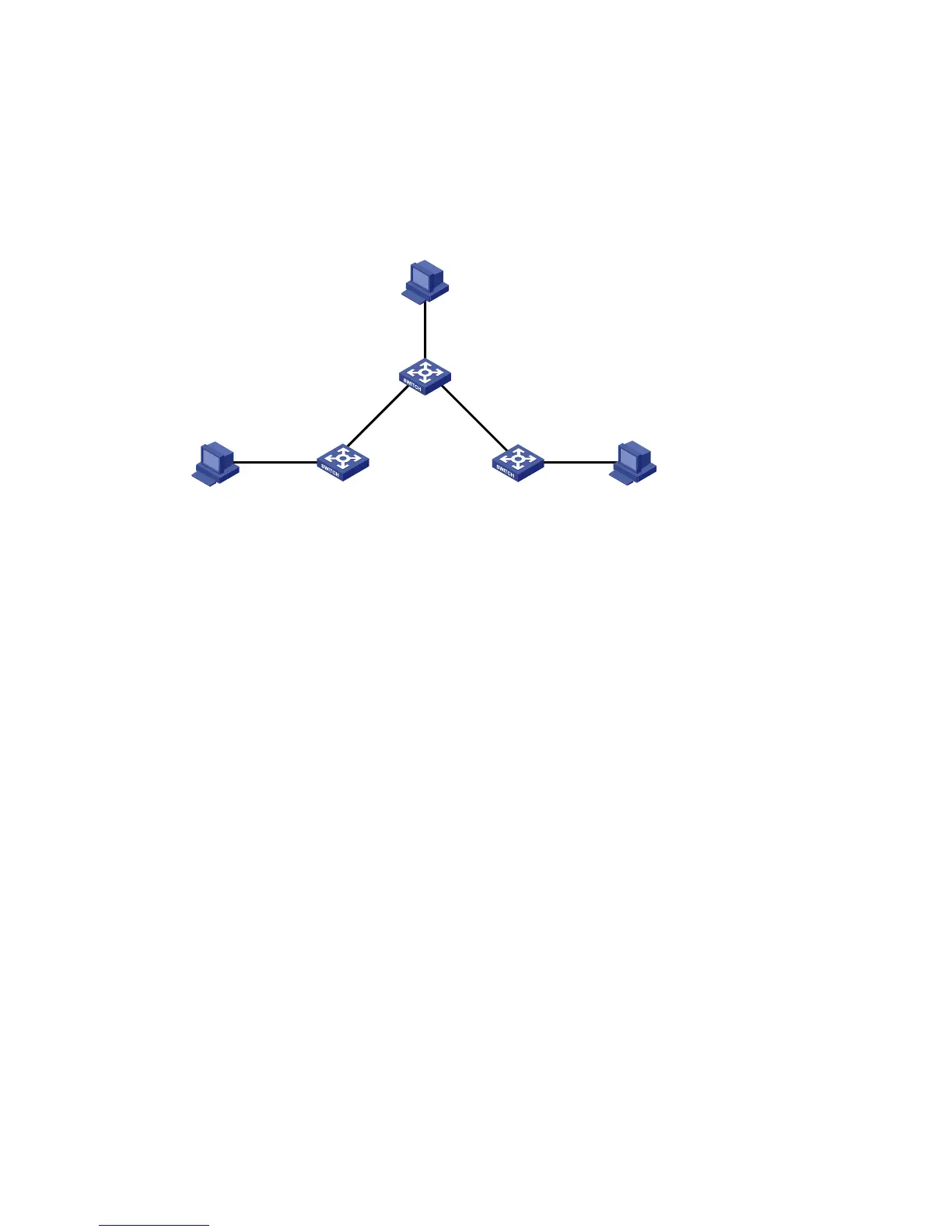

Figure 240 Network diagram
Configuration considerations
1. On Switch A, configure a default route with Switch B as the next hop.
2. On Switch B, configure one static route with Switch A as the next hop and the other with Switch C
as the next hop.
3. On Switch C, configure a default route with Switch B as the next hop.
Configuration procedure
1. Configure a default route to Switch B on Switch A:
a. Select Network > IPv6 Routing from the navigation tree of Switch A.
b. Click the Create tab.
c. Enter :: for Destination IP Address, select 0 from the Prefix Length list, and enter 4::2 for Next
Hop.
d. Click Apply.
Vlan-int400
2::1/64
Host B 2::2/64
Vlan-int200
4::2/64
Vlan-int300
5::2/64
Vlan-int200
4::1/64
Vlan-int300
5::1/64
Vlan-int500
3::1/64
Vlan-int100
1::1/64
Host A 1::2/64
Host C 3::2/64
Switch B
Switch A
Switch C
