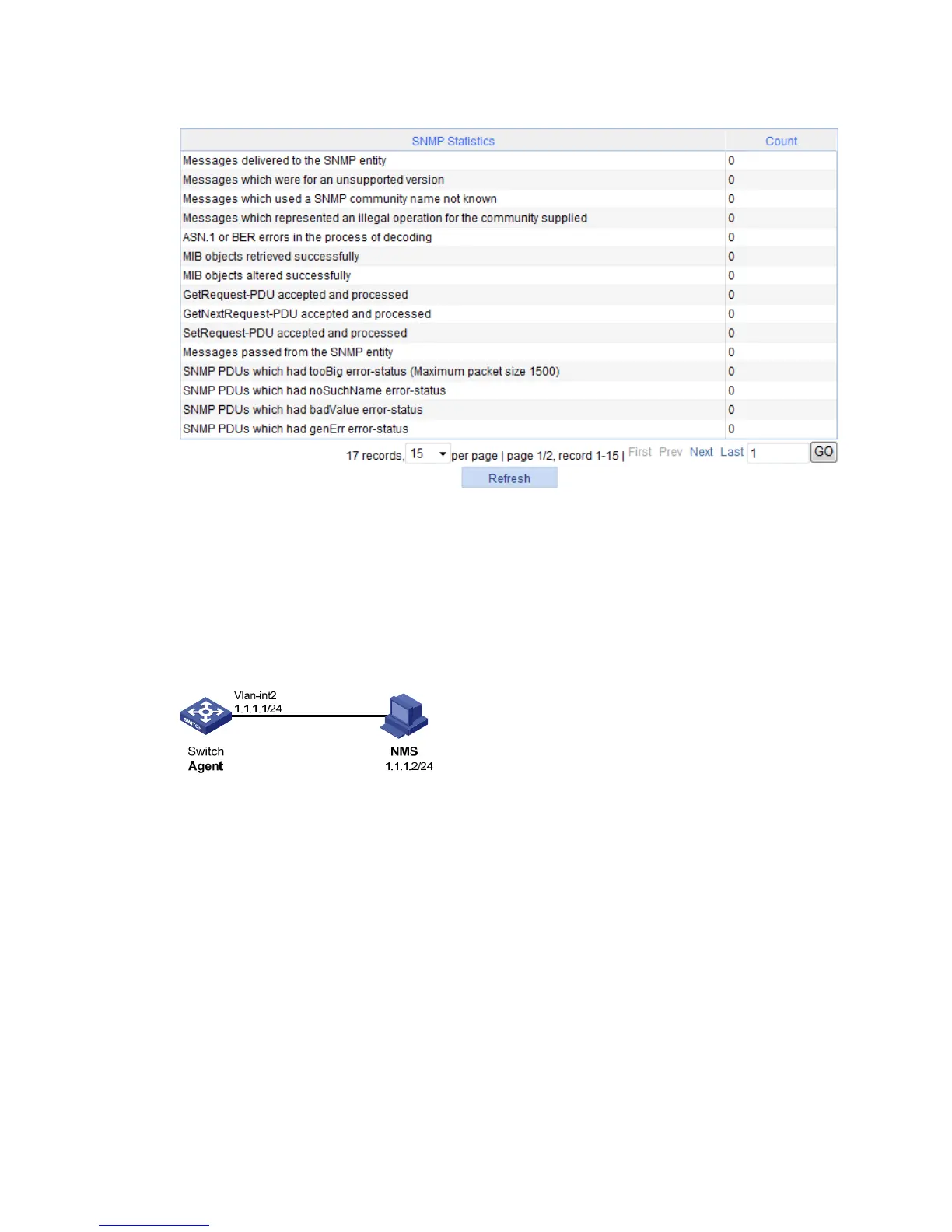

Figure 102 Displaying SNMP packet statistics
SNMPv1/v2c configuration example
Network requirements
As shown in Figure 103, t h e N M S a t 1.1.1. 2 / 24 u s e s S N M P v 1 o r S N M P v 2 c t o m a n a g e t h e swi t c h ( a g e n t )
at 1.1.1.1/24, and the switch automatically sends traps to report events to the NMS.
Figure 103 Network diagram
Configuring the agent
1. Enable SNMP:
a. Select Device > SNMP from the navigation tree.
The SNMP configuration page appears.
