33
Displaying the electronic label information
Electronic label allows you to view information about the device electronic label, which is also known as
the permanent configuration data or archive information. The information is written into the storage
medium of a device or a card during the debugging and testing processes, and includes card name,
product bar code, MAC address, debugging and testing dates, and manufacture name.
1. Select Device > Device Maintenance from the navigation tree.
2. Click the Electronic Label tab.
The electronic label page appears.

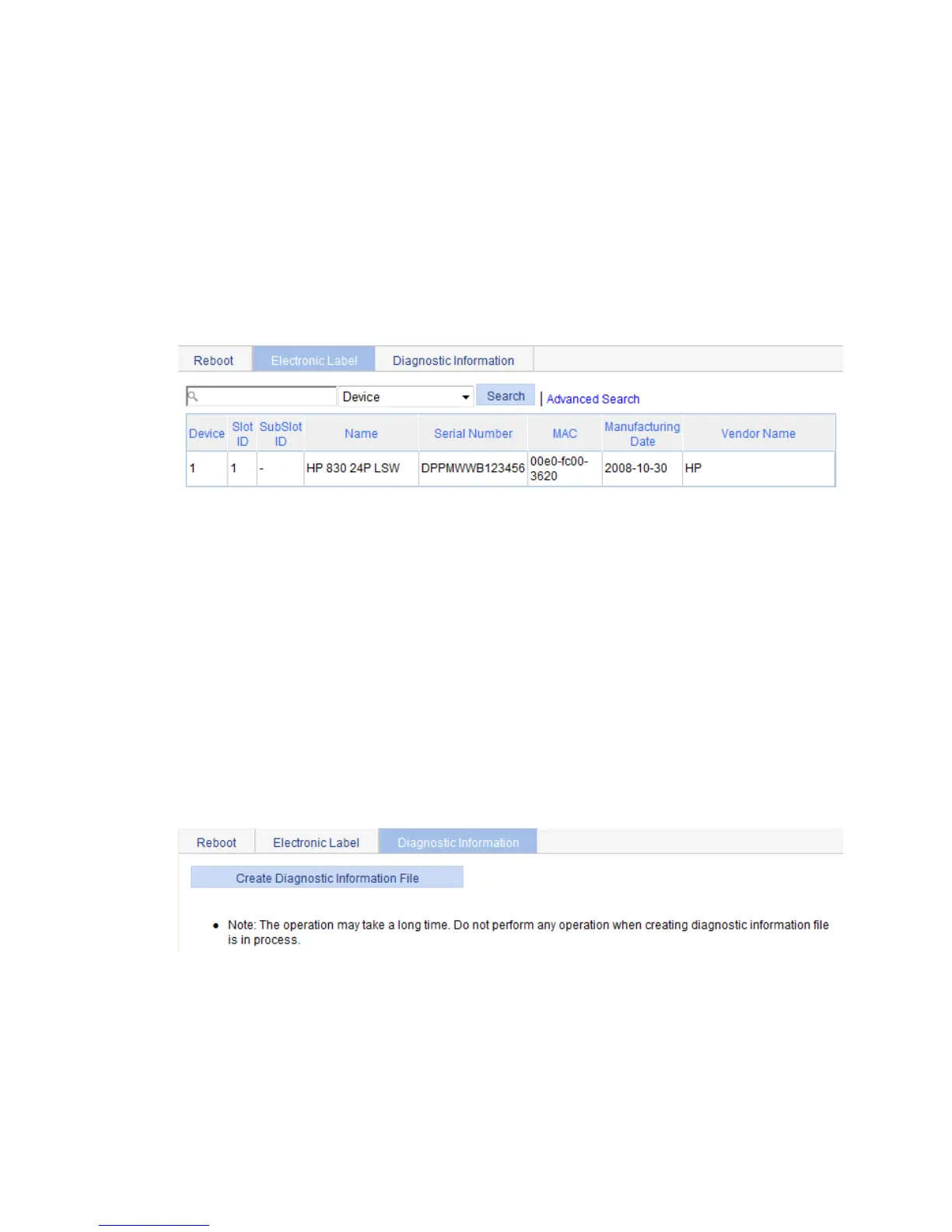

Figure 26 Electronic label
Generating the diagnostic information file
Each functional module has its own running information. Typically, you need to view the output
information for each individual module. You can generate the diagnostic information file to receive as
much information as possible in one operation during daily maintenance or when system failure occurs.
When you perform the diagnostic information generation operation, the system saves the running
statistics of multiple functional modules to a file named default.diag, and use the file to locate problems.
To generate the diagnostic information file:
1. Select Device > Device Maintenance from the navigation tree.
2. Click the Diagnostic Information tab.
The diagnostic information page appears.
Figure 27 Diagnostic information
3. Click Create Diagnostic Information File.
The system begins to generate the diagnostic information file, and after the file is generated, the
page in Figure 28 appears.
4. Cli
ck Click to Download.
The File Download dialog box appears.
5. Select to open this file or save this file to the local host.
