Configuring Switch A
1. Create VLAN 2:
a. Select Network > VLAN from the navigation tree.
b. Click the Create tab.
c. Enter VLAN ID 2.
d. Click Create.

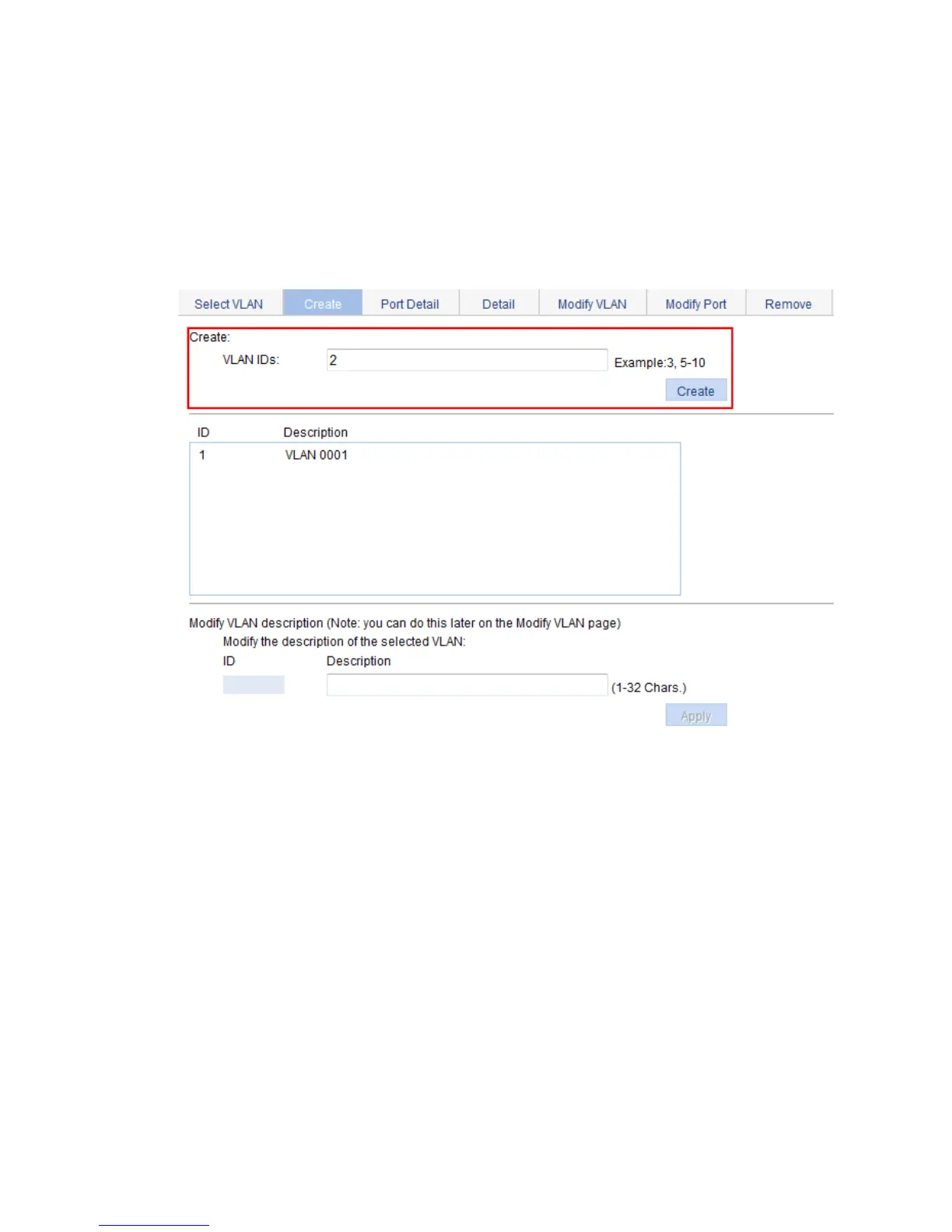

Figure 148 Creating VLAN 2
2. Configure GigabitEthernet 1/0/1 as a hybrid port, and configure its default VLAN as VLAN 2:
a. Select Device > Port Management from the navigation tree.
b. Click the Setup tab.
c. Select Hybrid from the Link Type list.
d. Select the PVID box, and enter 2 in the field.
e. Select GigabitEthernet 1/0/1 from the chassis front panel.
f. Click Apply.
