220

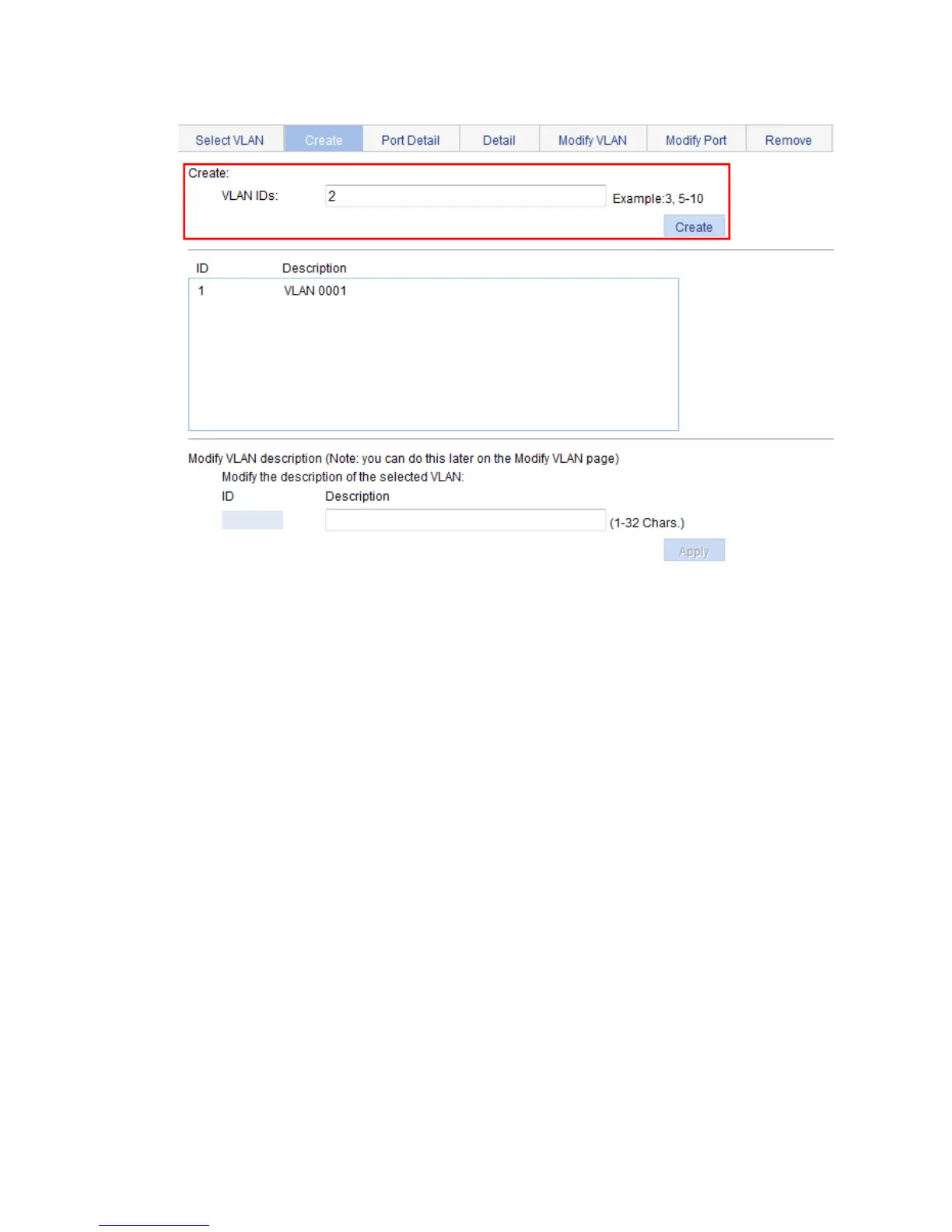

Figure 200 Creating VLANs
2. Configure GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 as trunk ports:
a. Select Device > Port Management from the navigation tree.
b. Click the Setup tab to enter the page for configuring ports.
c. Select Trunk from the Link Type list.
d. Select port GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 from the chassis front panel.
e. Click Apply.
