6. Configure a target host SNMP traps:
a. Click Add on the Trap tab page.
The page for adding a target host of SNMP traps appears.

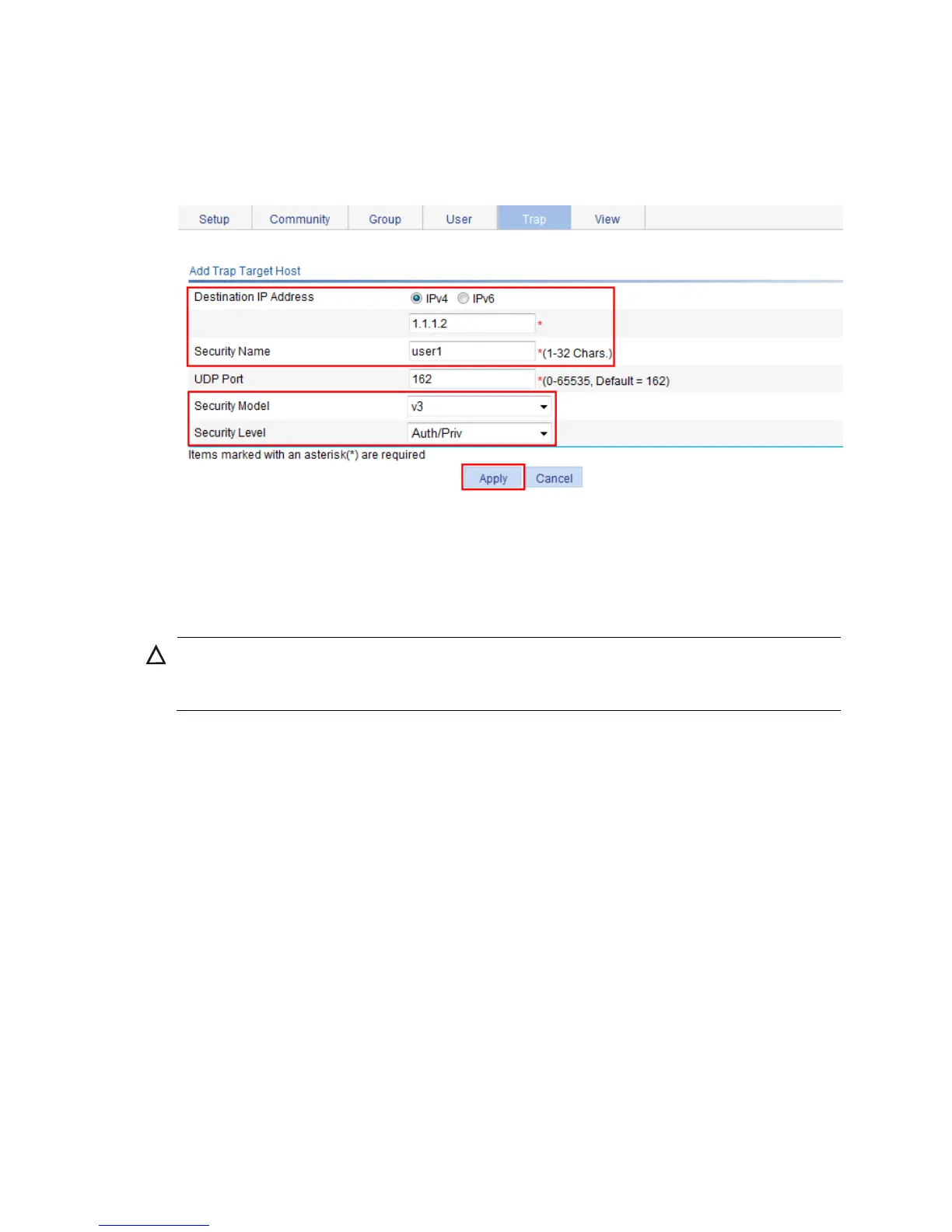

Figure 116 Adding a trap target host
b. Select the IPv4 option, enter 1.1.1.2 in the subsequent field, enter user1 in the Security Name
field, select v3 from the Security Model list, and select Auth/Priv from the Security Level list.
c. Click Apply.
Configuring the NMS
CAUTION:
The configuration on the NMS must be consistent with the configuration on the agent. Otherwise, you
cannot perform corresponding operations.
To configure the NMS:
1. Specify the SNMP version for the NMS as v3.
2. Create an SNMP user user1.
3. Enable both authentication and privacy functions
4. Use MD5 for authentication and DES56 for encryption.
5. Set the authentication key to authkey and the privacy key to prikey.
For information about configuring the NMS, see the NMS manual.
Verifying the configuration
• After the configuration, the NMS can establish an SNMP connection with the agent and query and
reconfigure values of objects in the agent MIB.
• Disable or enable an idle interface on the agent, and you can see the interface state change traps
on the NMS.
