HP 830 Series User Manual

147

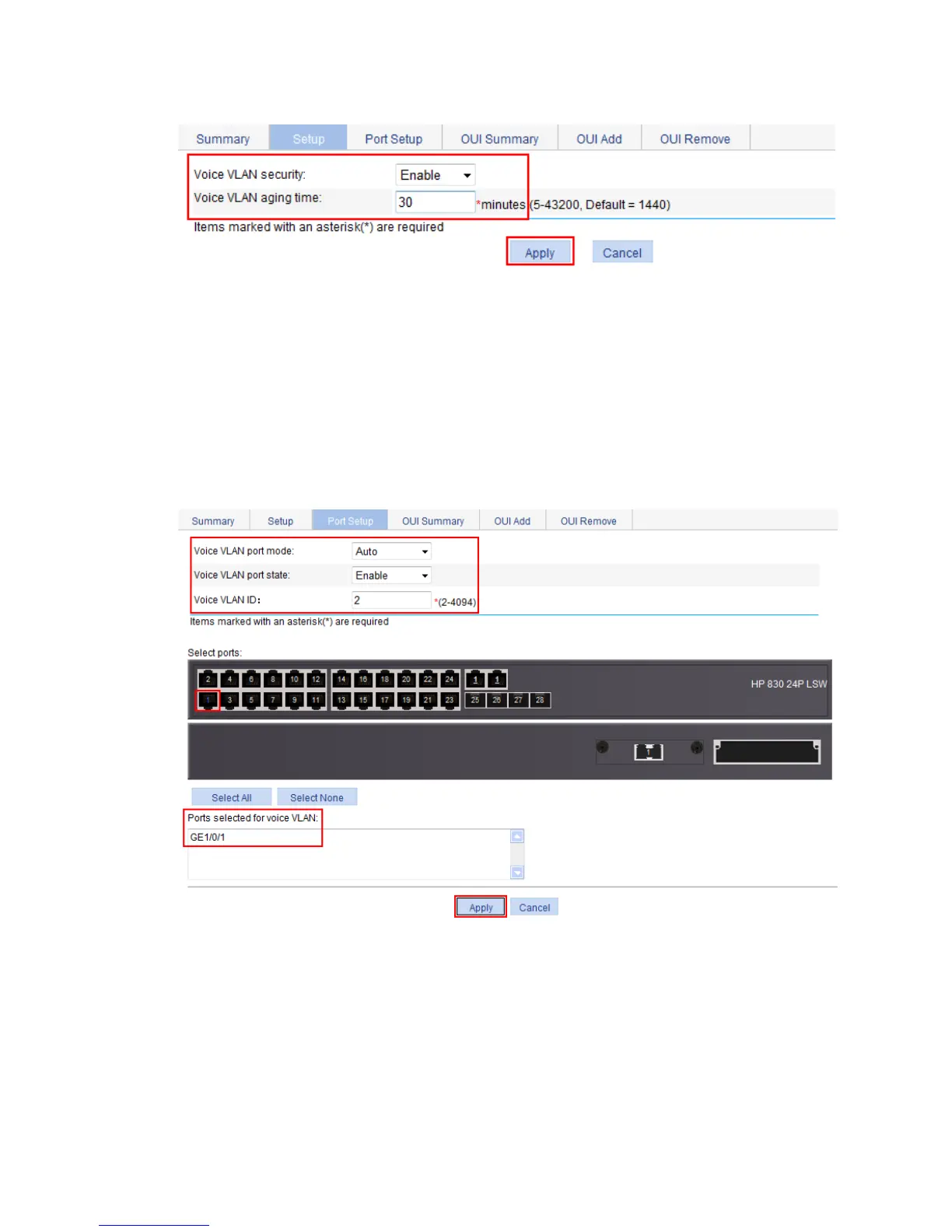

Figure 142 Configuring the voice VLAN function globally
4. Configure voice VLAN on GigabitEthernet 1/0/1:
a. Click the Port Setup tab.
b. Select Auto from the Voice VLAN port mode list.
c. Select Enable from the Voice VLAN port state list.
d. Enter voice VLAN ID 2.
e. Select GigabitEthernet 1/0/1 from the chassis front panel.
f. Click Apply.
Figure 143 Configuring voice VLAN on GigabitEthernet 1/0/1
5. Add OUI addresses to the OUI list:
a. Click the OUI Add tab.
b. Enter OUI address 0011-2200-0000.
c. Select FFFF-FF00-0000 from the Mask list.
d. Enter description string test.
e. Click Apply.
