191
You can create a static or dynamic link aggregation group to achieve load balancing.
Approach 1: Create static link aggregation group 1
1. Select Network > Link Aggregation from the navigation tree.
2. Click Create.
3. Configure static link aggregation group 1:
a. Enter link aggregation interface ID 1.
b. Select the Static (LACP Disabled) option for the aggregate interface type.
c. Select GigabitEthernet 1/0/1, GigabitEthernet 1/0/2, and GigabitEthernet 1/0/3 on the
chassis front panel.
4. Click Apply.

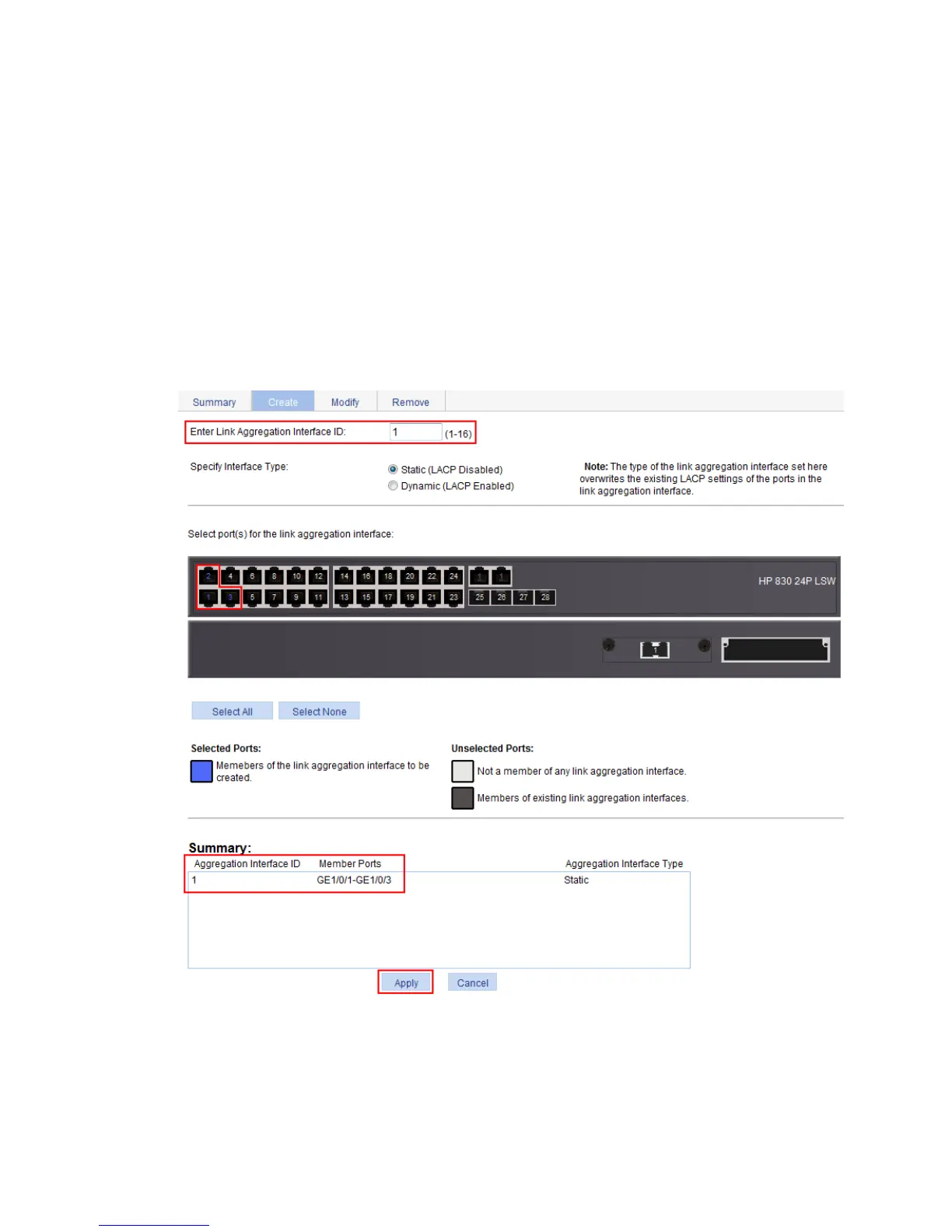

Figure 176 Creating static link aggregation group 1
Approach 2: Create dynamic link aggregation group 1
1. Select Network > Link Aggregation from the navigation tree.
2. Click Create.
3. Configure dynamic aggregation group 1:
