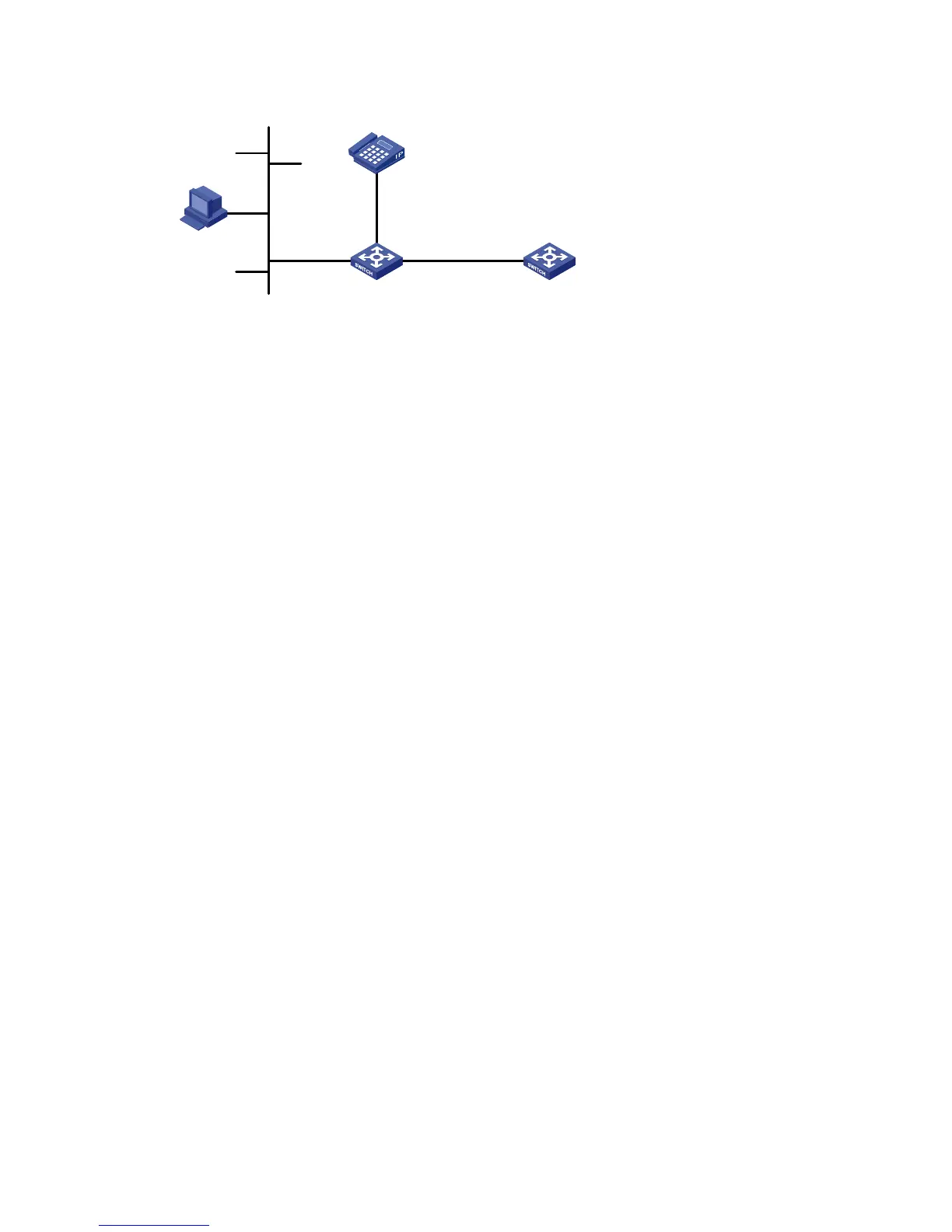

Figure 191 Network diagram
Configuring Switch A
1. (Optional.) Enable LLDP on GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2. (By default, LLDP
is enabled on Ethernet ports.)
2. Set the LLDP operating mode to Rx on GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2:
a. Select Network > LLDP from the navigation tree.
By default, the Port Setup tab is displayed, as shown in Figure 192.
b. Selec
t port GigabitEthernet1/0/1 and GigabitEthernet1/0/2.
c. Click Modify Selected.
The page shown in Figure 193 appears.
NMS
Switch A
MED
Switch B
GE1/0/2
GE1/0/1
GE1/0/1
