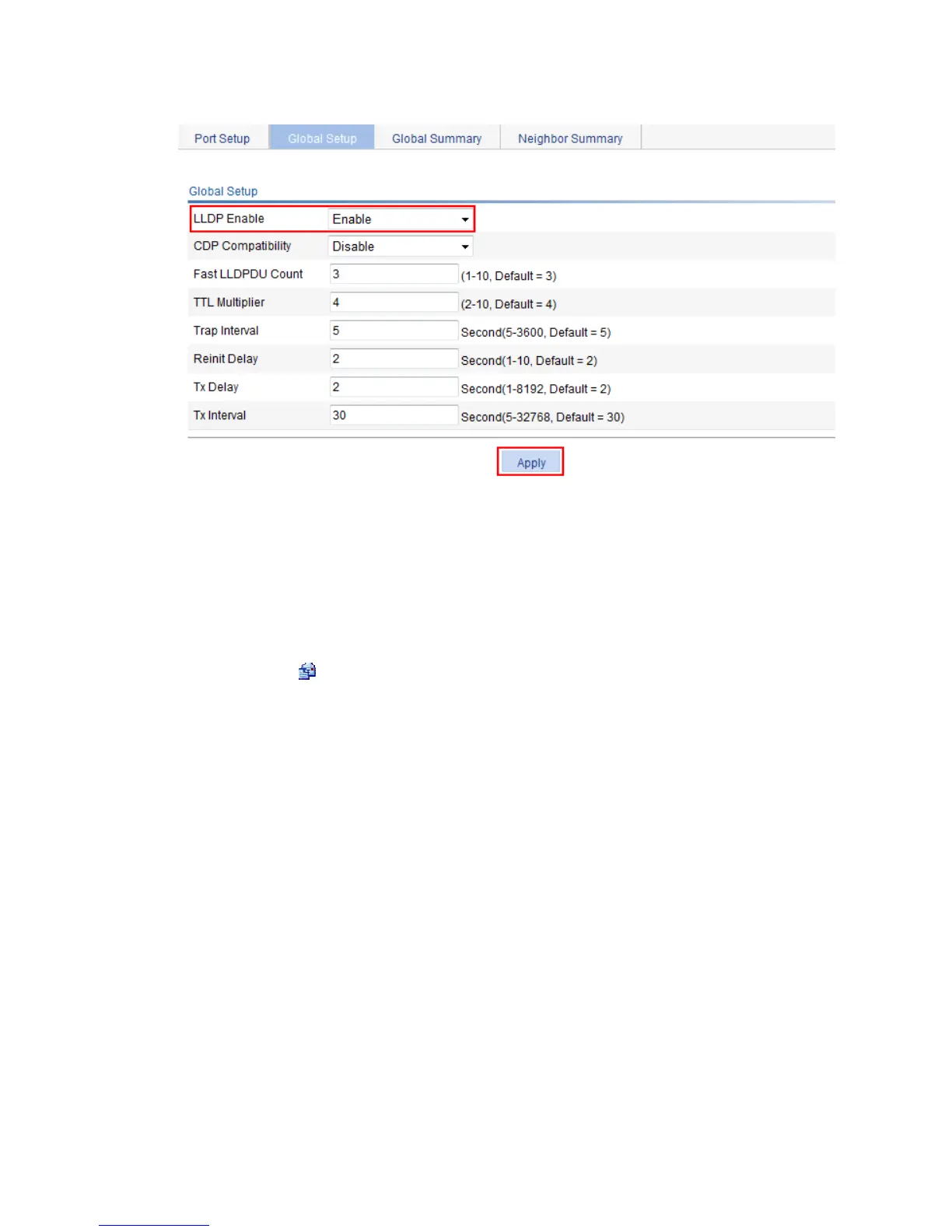

Figure 194 The global setup tab
Configuring Switch B
1. (Optional.) Enable LLDP on port GigabitEthernet 1/0/1. (By default, LLDP is enabled on Ethernet
ports.)
2. Set the LLDP operating mode to Tx on GigabitEthernet 1/0/1:
a. Select Network > LLDP from the navigation tree.
By default, the Port Setup tab is displayed.
b. Click the icon for port GigabitEthernet1/0/1.
c. Select Tx from the LLDP Operating Mode list.
3. Click Apply.
A progress dialog box appears.
4. Click Close on the progress dialog box when the progress dialog box prompts that the
configuration succeeds.
