HP 830 Series User Manual

224

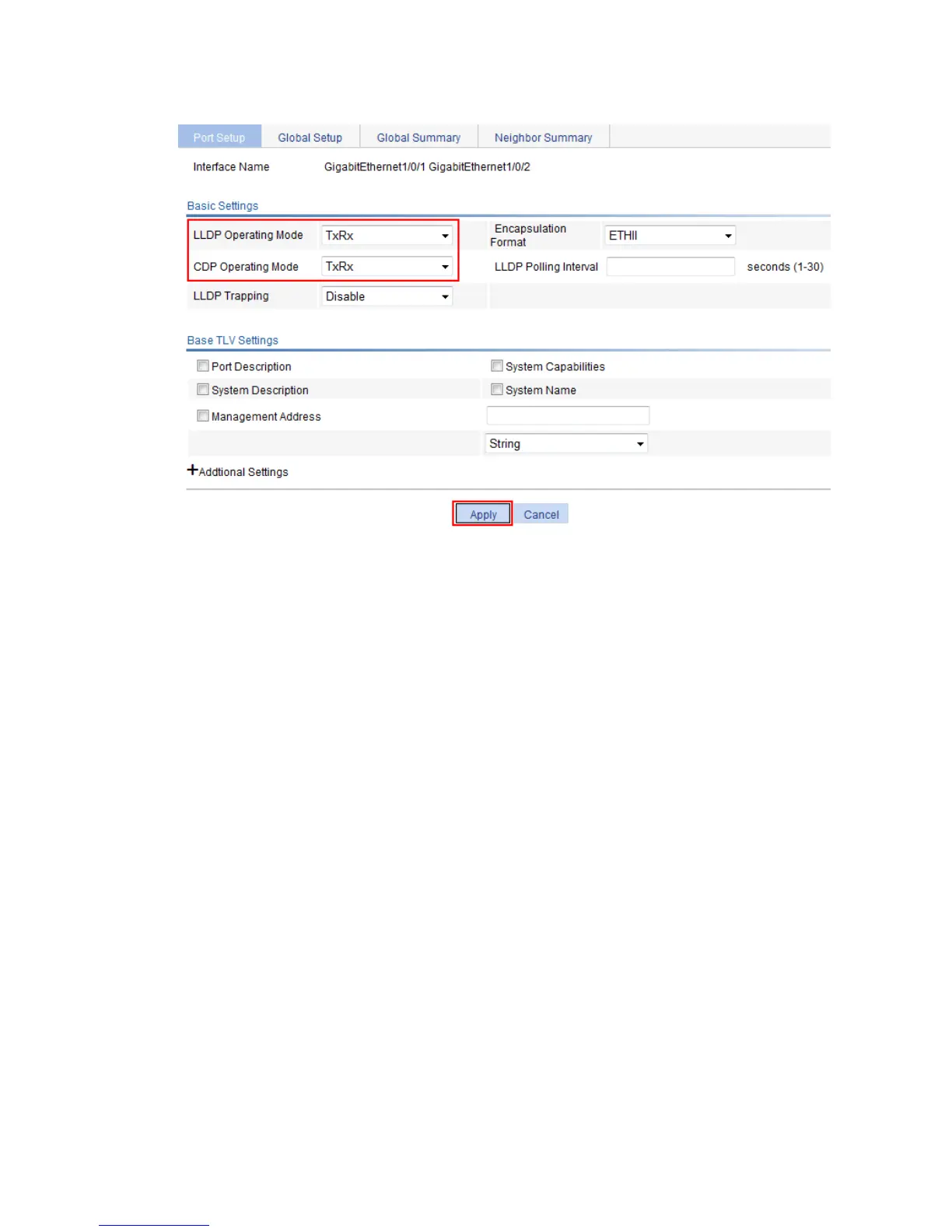

Figure 204 Modifying LLDP settings on ports
6. Enable global LLDP and CDP compatibility of LLDP:
a. Click the Global Setup tab.
b. Select Enable from the LLDP Enable list.
c. Select Enable from the CDP Compatibility list.
d. Click Apply.
A progress dialog box appears.
e. Click Close on the progress dialog box when the progress dialog box prompts that the
configuration succeeds.
