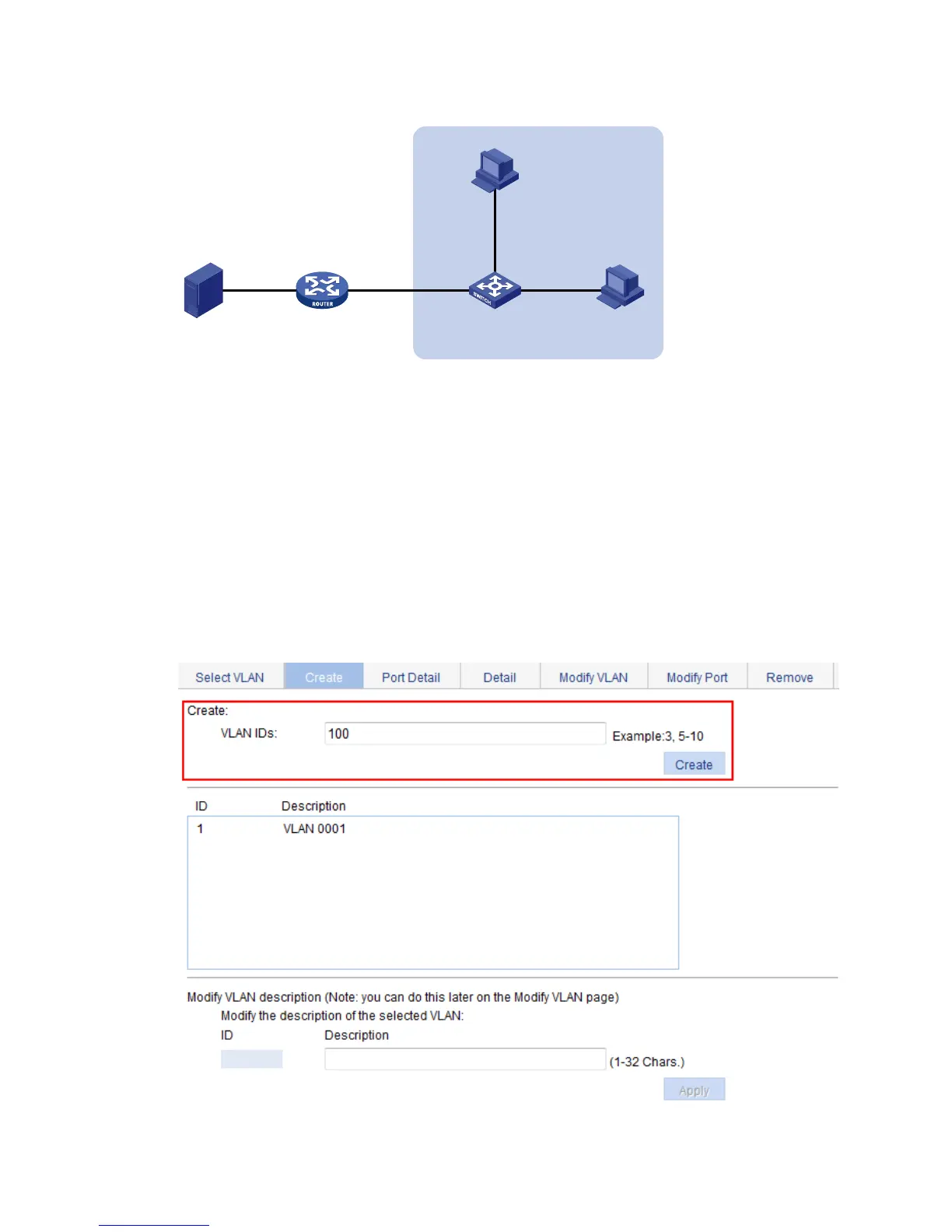

Figure 224 Network diagram
Configuring Router A
Enable IP multicast routing globally, enable PIM-DM on each interface, and enable IGMP on Ethernet
1/1. (Details not shown.)
Configuring Switch A
1. Create VLAN 100:
a. From the navigation tree, select Network > VLAN.
b. Click the Create tab.
c. Enter 100 as the VLAN ID.
d. Click Apply.
Figure 225 Creating VLAN 100
Source
Router A Switch A
Receiver
Host A
Host B
1.1.1.1/24
GE1/0/2
GE1/0/3
IGMP querier
GE1/0/1
Eth1/1
10.1.1.1/24
Eth1/2
1.1.1.2/24
VLAN 100
