HP 830 Series - Page 516

504

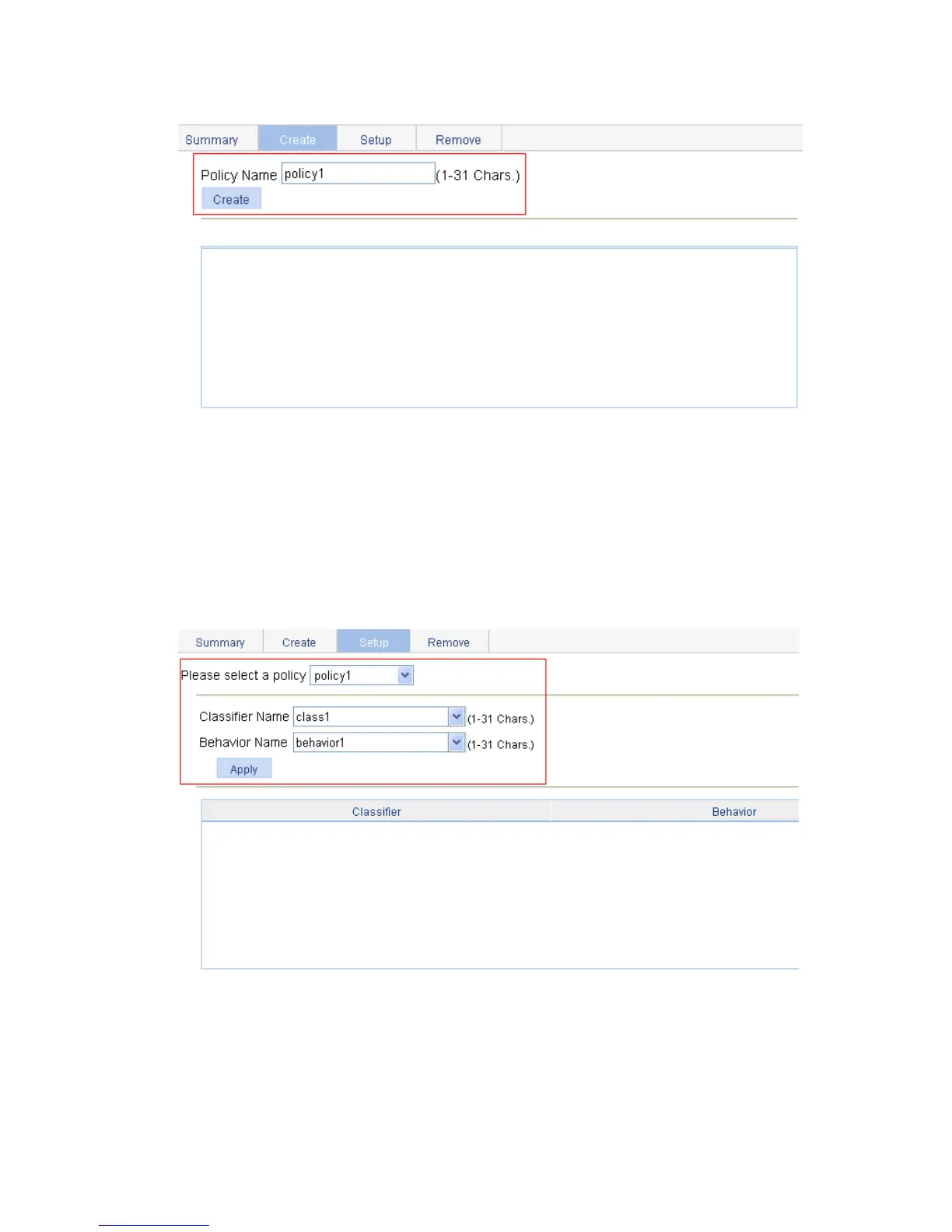

Figure 508 Adding a policy
9. Configure classifier-behavior associations for the policy:
a. Click the Setup tab.
b. Select policy1.
c. Select class1 from the Classifier Name list.
d. Select behavior1 from the Behavior Name list.
e. Click Apply.
Figure 509 Configuring classifier-behavior associations for the policy
10. Apply the QoS policy in the inbound direction of interface GigabitEthernet 1/0/1:
a. Select QoS > Port Policy from the navigation tree.
b. Click the Setup tab.
c. Select policy1 from the Please select a policy list.
d. Select Inbound from the Direction list.
